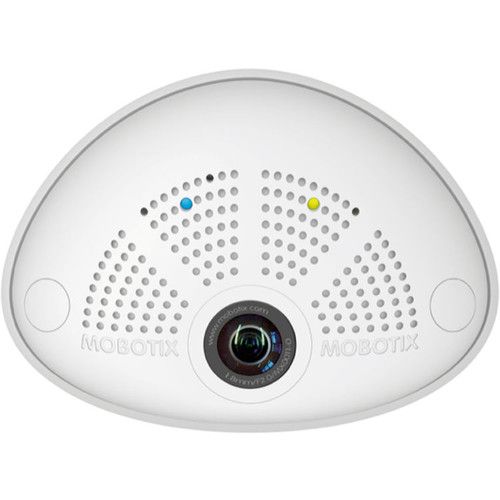

Mobotix Mx-i26B-6D016 6 Megapixel Network Camera with Day Sensor and B016 Lens
SKU
Mx-i26B-6D016
Model No
Mx-i26B-6D016
$627.13
Product Highlights
- Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility
- Recording on an internal MicroSD card (4 GB as standard)
- Optimized for wall installation as an in-wall or on-wall solution
- MxAnalytics Video Analysis tools as standard
- Variants with audio package (microphone and speaker)
Speak to an expert
The Mx-i26B-6D016 from Mobotix is an indoor network camera designed for optimal surveillance, featuring a 6-megapixel day sensor and a B016 1.6mm fixed lens. It captures panoramic fisheye video at an impressive 3072 x 2048 resolution and 12 frames per second with a 180° field of view. This camera is equipped with an internal 4GB microSD card for easy footage storage and utilizes Power over Ethernet (PoE) for simplified installation and connectivity. ONVIF compliance ensures the Mx-i26B integrates seamlessly with various surveillance systems.
Mobotix Mx-i26B-6D016 Camera Features
- Mx6 system platform: 2nd generation technology with MxBus and H.264 support for enhanced video quality and compatibility.
- Internal MicroSD recording: 4 GB storage comes standard, allowing for convenient footage retention without the need for external storage solutions.
- Wall installation optimization: Designed for in-wall or on-wall mounting, ensuring flexibility in deployment to meet diverse installation needs.
- MxAnalytics tools: Integrated video analysis tools available by default, enhancing security capabilities through intelligent analytics.
- Audio package variants: Options with built-in microphone and speaker for two-way audio communication enhance user functionality.
- Integrated sensors: Vibration and temperature sensors included for advanced monitoring of the camera's operational environment.
Detailed Specifications for Mobotix Mx-i26B-6D016
| Camera Type | Network Camera |
| Resolution | 3072 x 2048 pixels |
| Lens Type | B016 1.6mm Fixed Lens |
| Frame Rate | 12 fps |
| Field of View | 180° |
| Storage | 4GB MicroSD Card (included) |
| Power Supply | Power over Ethernet (PoE) |
| Compliance | ONVIF compatible |
| Installation Type | Wall-mounted |
SKU  | Mx-i26B-6D016 |
|---|---|
| Features | Audio, Auto Gain Control, Digital Zoom, ONVIF, Privacy Masking |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.6mm |
| Mount Type | Wall |
| Compression Method | H.264, M-JPEG, MxPEG |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | 96 x 138 x 50 mm |
| Image Device | 1/1.8“ CMOS, 6 Megapixel (3072 x 2048), Progressive Scan |
| Minimum Scene Illumination | 0.1/0.005 (Color) |
| Operating Temperature | 0 to 40°C (32 to 104 °F) |
| Power Consumption | 5 watts |
| Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (client and server), NTP (client and server), SIP (client and server) G.711 (PCMA and PCMU) and G.722 |
| Audio | Yes |
| Auto Gain Control | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
