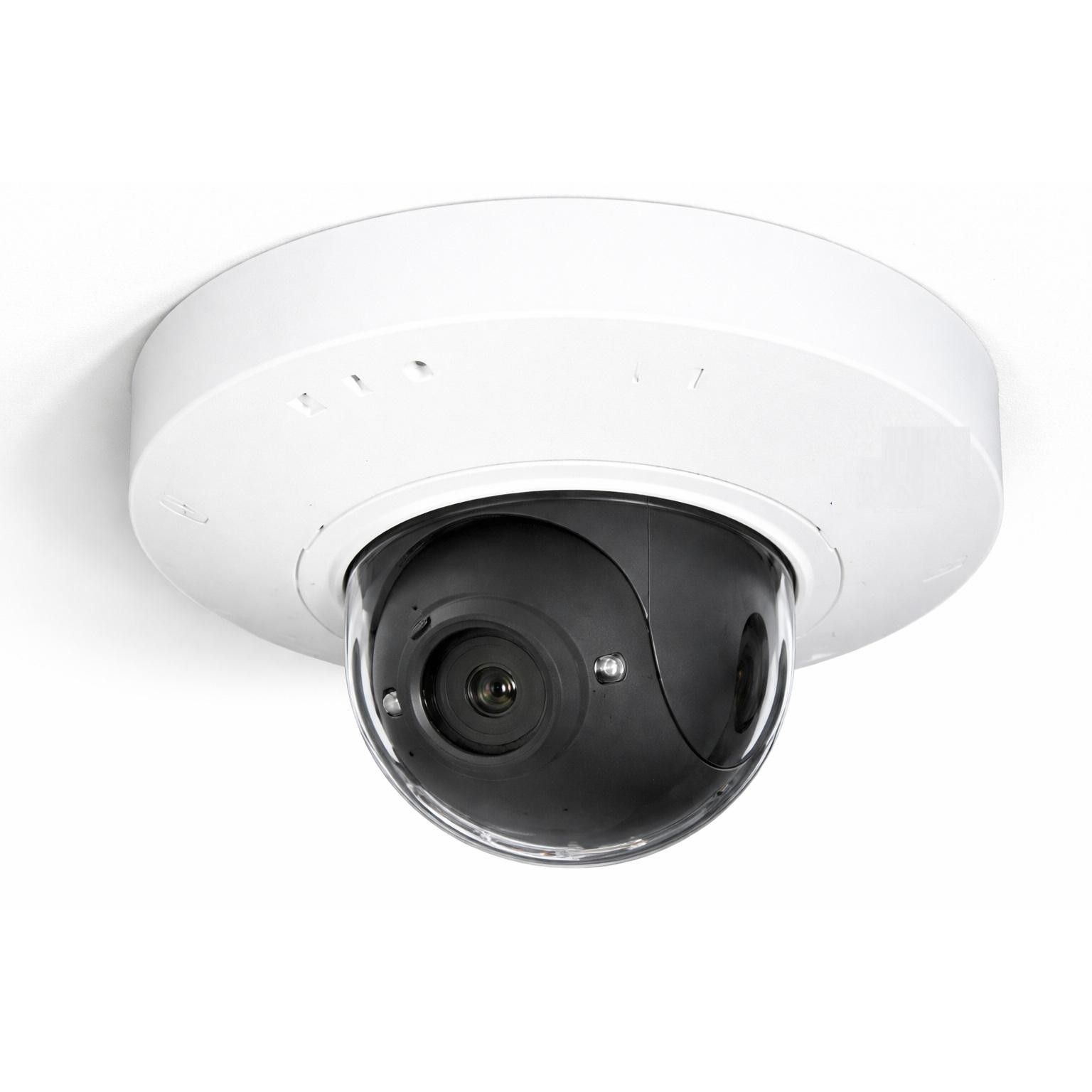

Mobotix Mx-D71B-8DN280 Network IP Outdoor 4K DN280 Day/Night, 15°x8,5°Dome Camera
SKU
Mx-D71B-8DN280
Model No
Mx-D71B-8DN280
$1,716.47
Product Highlights
- D71B 4K camera with premium wide-angle lens and IR cut filter for day and night use
- Aperture: f/1.8
- Maximum image angle (HxV): 15° x 8.5°
- Maximum resolution: 4K UHD (3840 x 2160)
- Integrated IR LED illuminators
Speak to an expert
The Mobotix D71B DN280 is a specialized surveillance camera built for long‑range, detail‑focused monitoring. Delivering ultra‑sharp 4K resolution with advanced Day/Night functionality, it ensures reliable imaging around the clock—even in challenging light conditions. Its ultra‑narrow 15° horizontal by 8.5° vertical field of view provides pinpoint coverage, making it ideal for distant targets, corridors, or high‑security zones where maximum precision is required. Engineered with Mobotix’s renowned durability and advanced image processing, the DN280 offers professional‑grade security performance for demanding installations.
Mobotix D71B DN280 Camera Features
- Ultra-High Definition: Experience stunning image clarity with 4K UHD resolution (3840 x 2160), ensuring every detail is captured accurately.
- Dual Functionality: Equipped with an IR cut filter and integrated IR LED illuminators, the camera performs exceptionally in both day and night conditions.
- Precise Coverage: The ultra-narrow 15° horizontal by 8.5° vertical field of view enables targeted monitoring, ideal for high-security areas.
- Wide Dynamic Range: 120 dB WDR technology allows for clear imaging in environments with varying light conditions.
- Durable Design: With an IP66 protection rating and IK10 impact protection, the camera is engineered to withstand harsh conditions.
- Versatile Viewing Options: The 3-axis mechanical pan/tilt head provides flexibility in positioning for optimal surveillance.
- Resilient Operation: Operates in a wide temperature range of -40°C to +65°C, ensuring performance in extreme weather conditions.
- Audio Capabilities: Built-in speaker and microphone facilitate two-way audio communication, enhancing security monitoring.
- Easy Connectivity: Features a USB-C interface for convenient integration with other devices.
- Included Storage: Comes with an 8GB memory card to store recorded footage efficiently.
Detailed Specifications for Mobotix D71B DN280
| Aperture | f/1.8 |
| Maximum image angle (HxV) | 15° x 8.5° |
| Maximum resolution | 4K UHD (3840 x 2160) |
| Integrated IR LED illuminators | Yes |
| WDR | Wide Dynamic Range 120 dB (day and night sensors) |
| 3-axis mechanical pan/tilt head | Yes |
| Protection rating | IP66 |
| Impact protection | IK10 |
| Operating temperature range | -40°C to +65°C |
| Built-in speaker and microphone | Yes |
| Line In ; Line Out | Yes |
| USB-C interface | Yes |
| Included memory card | 8GB |
SKU  | Mx-D71B-8DN280 |
|---|---|
| Features | Day/Night, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 8 Megapixel |
| Mount Type | Wall |
| Compression Method | H.264, MxPEG+, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+ |
| Operating Humidity | 95% rel. humidity (non-condensing) |
| Operating Temperature | -40 - +65°C / -40 - +149°F95% rel. humidity (non-condensing) |
| Power Consumption | max. 25 W |
| Protocols | DHCP (client and server), DNS, ICMP, IGMP v3, IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, NFS, NTP (client and server), RTP, RTCP, RTSP, SIP (client and server), SMB/CIFS, SNMP, SMTP, SSL/TLS v1.3, UDP, VLAN, VPN, Zeroconf/mDNS |
| Weatherproof | IP66 |
| Angle of View | 15° X 8,5° |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
