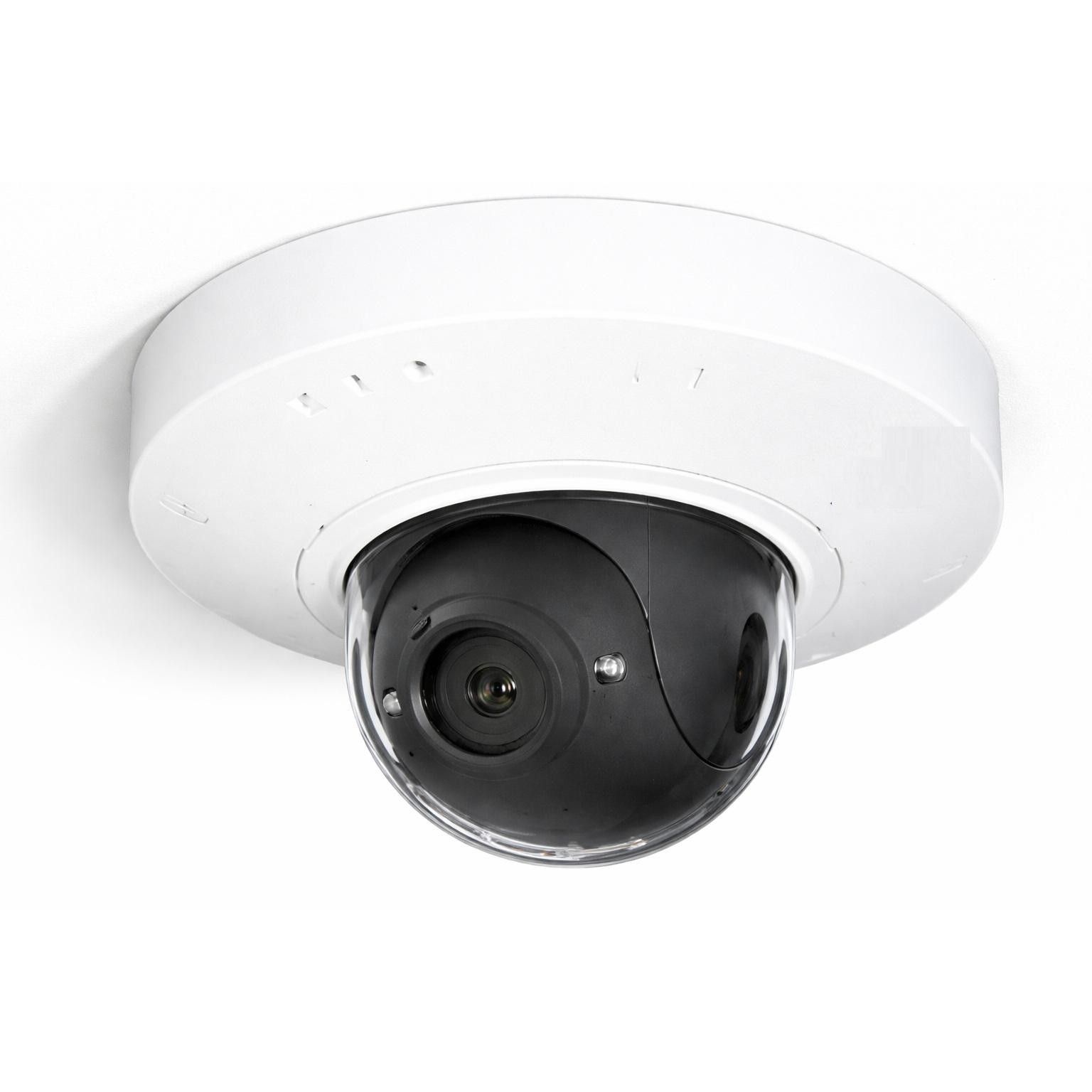

Mobotix Mx-D71B-8DN100 Network IP Outdoor 4K DN100 Day/Night, 45°x25°Dome Camera
SKU
Mx-D71B-8DN100
Model No
Mx-D71B-8DN100
$1,716.47
Product Highlights
- D71B 4K camera with premium wide-angle lens and IR cut filter for day and night use
- Aperture: f/1.8
- Maximum image angle (HxV): 45° x 25°
- Maximum resolution: 4K UHD (3840 x 2160)
- Integrated IR LED illuminators
Speak to an expert
Mobotix D71B DN100 Camera Overview
The Mobotix D71B DN100 is a professional surveillance camera engineered for high‑detail monitoring. Delivering crisp 4K resolution with advanced Day/Night functionality, it ensures reliable imaging around the clock—even in challenging lighting conditions. Its 45° horizontal by 25° vertical field of view provides a medium‑narrow perspective, making it ideal for focused coverage of entrances, corridors, or sensitive areas where precision is critical. Built with Mobotix’s renowned durability and image processing technology, the DN100 offers dependable, high‑quality security for demanding installations.
Features
- D71B 4K camera: equipped with a premium wide-angle lens and IR cut filter for optimal day and night performance.
- Aperture: f/1.8 allows for enhanced light capture and improved image quality.
- Maximum image angle (HxV): 45° x 25° provides a medium-narrow view, great for detailed surveillance in critical areas.
- Maximum resolution: 4K UHD (3840 x 2160) ensures clear and high-definition visuals.
- Integrated IR LED illuminators: enhance visibility in low light conditions, ensuring constant monitoring.
- WDR: Wide Dynamic Range of 120 dB enables clear images in varying lighting conditions.
- 3-axis mechanical pan/tilt head: allows for flexible positioning and coverage adjustments.
- Protection rating: IP66 certified, ensuring durability against dust and water.
- Impact protection: IK10 rated for resistance against mechanical impacts.
- Operating temperature range: -40°C to +65°C guarantees performance in extreme weather conditions.
- Built-in speaker and microphone: facilitates audio monitoring and communication.
- Line In ; Line Out: allows for external audio integration.
- Input ; Output: support for expansion and connections to other devices.
- USB-C interface: provides modern connectivity options.
- 8GB memory card: included for immediate use and storage of recordings.
Mobotix D71B DN100 Detailed Specifications
| Camera Model | Mobotix D71B DN100 |
| Resolution | 4K UHD (3840 x 2160) |
| Aperture | f/1.8 |
| Field of View | 45° x 25° |
| WDR | 120 dB |
| Protection Rating | IP66 |
| Impact Protection | IK10 |
| Operating Temperature | -40°C to +65°C |
| Audio Features | Built-in speaker and microphone |
| USB Interface | USB-C |
| Included Storage | 8GB memory card |
SKU  | Mx-D71B-8DN100 |
|---|---|
| Features | Day/Night, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 8 Megapixel |
| Mount Type | Wall |
| Compression Method | H.264, MxPEG+, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+ |
| Operating Humidity | 95% rel. humidity (non-condensing) |
| Operating Temperature | -40 - +65°C / -40 - +149°F95% rel. humidity (non-condensing) |
| Power Consumption | max. 25 W |
| Protocols | DHCP (client and server), DNS, ICMP, IGMP v3, IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, NFS, NTP (client and server), RTP, RTCP, RTSP, SIP (client and server), SMB/CIFS, SNMP, SMTP, SSL/TLS v1.3, UDP, VLAN, VPN, Zeroconf/mDNS |
| Weatherproof | IP66 |
| Angle of View | 45° X 25° |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
