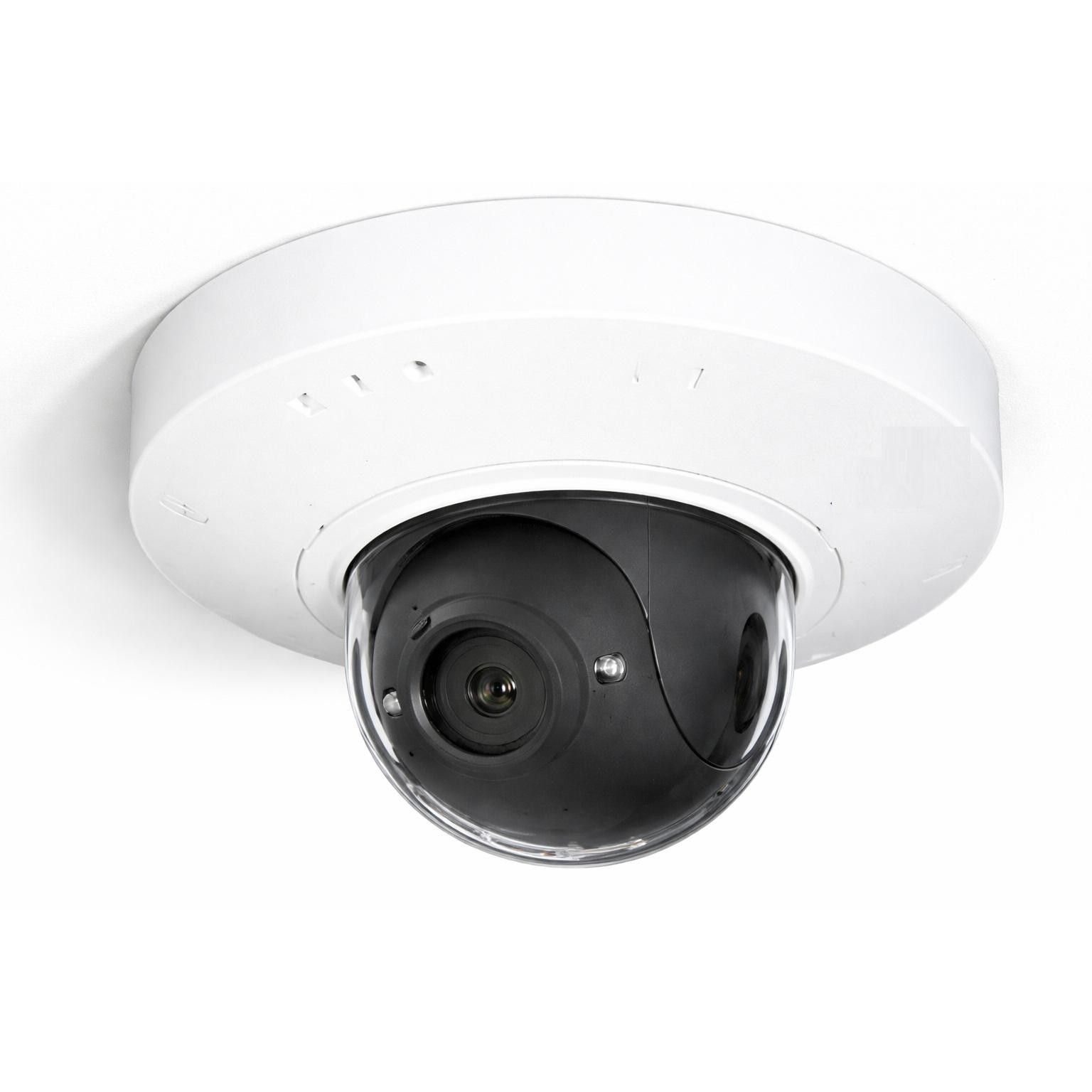

Mobotix Mx-D71B-8DN080 Network IP Outdoor 4K DN080 Day/Night, 60°x33°Dome Camera
SKU
Mx-D71B-8DN080
Model No
Mx-D71B-8DN080
$1,716.47
Product Highlights
- D71B 4K camera with premium wide-angle lens and IR cut filter for day and night use
- Aperture: f/1.8
- Maximum image angle (HxV): 60° x 33°
- Maximum resolution: 4K UHD (3840 x 2160)
- Integrated IR LED illuminators
Speak to an expert
Mobotix D71B DN080 Camera Overview
The Mobotix D71B DN080 is a professional‑grade surveillance camera designed to deliver outstanding 4K resolution for maximum image detail. With advanced Day/Night functionality, it ensures reliable performance around the clock—even in low‑light environments. Its 60° horizontal by 33° vertical field of view provides a balanced, moderately wide perspective, making it ideal for monitoring medium‑sized areas such as entrances, corridors, or retail spaces. Engineered with Mobotix’s renowned durability and precision optics, the DN080 offers dependable, high‑quality security coverage for demanding installations.
Features
- D71B 4K camera: premium wide-angle lens and IR cut filter for versatile day and night use.
- Aperture f/1.8: allows more light to reach the sensor, improving image quality in low-light conditions.
- Maximum image angle (HxV): 60° x 33°, providing a balanced view ideal for monitoring various environments.
- Maximum resolution: 4K UHD (3840 x 2160) delivers stunning clarity and detail in every image.
- Integrated IR LED illuminators: enhance visibility in complete darkness, ensuring 24/7 surveillance capability.
- WDR 120 dB: Wide Dynamic Range technology balances bright and dark areas of an image, enhancing clarity.
- 3-axis mechanical pan/tilt head: allows flexible positioning for comprehensive coverage of monitored areas.
- Protection rating IP66: ensures the camera is weatherproof, suitable for outdoor installations.
- Impact protection IK10: provides strong resistance against vandalism and impacts, increasing durability.
- Operating temperature range: -40°C to +65°C, suitable for extreme environmental conditions.
- Built-in speaker and microphone: enables two-way audio communication for enhanced interaction.
- Line In ; Line Out: offers audio input and output options for added versatility.
- USB-C interface: simplifies connectivity and allows for fast data transfer.
- 8GB memory card included: provides immediate storage solution for video footage right out of the box.
Mobotix D71B DN080 Detailed Specifications
| Camera Model | D71B DN080 |
| Resolution | 4K UHD (3840 x 2160) |
| Field of View | 60° horizontal x 33° vertical |
| Aperture | f/1.8 |
| IR LED Illuminators | Integrated |
| Wide Dynamic Range | 120 dB |
| Pan/Tilt Adjustment | 3-axis mechanical |
| Weatherproof Rating | IP66 |
| Impact Resistance | IK10 |
| Operating Temperature | -40°C to +65°C |
| Audio Features | Built-in speaker and microphone |
| Audio Input/Output | Line In ; Line Out |
| USB Interface | USB-C |
| Included Storage | 8GB memory card |
SKU  | Mx-D71B-8DN080 |
|---|---|
| Features | Day/Night, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 8 Megapixel |
| Mount Type | Wall |
| Compression Method | H.264, MxPEG+, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE+ |
| Operating Humidity | 95% rel. humidity (non-condensing) |
| Operating Temperature | -40 - +65°C / -40 - +149°F95% rel. humidity (non-condensing) |
| Power Consumption | max. 25 W |
| Protocols | DHCP (client and server), DNS, ICMP, IGMP v3, IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, NFS, NTP (client and server), RTP, RTCP, RTSP, SIP (client and server), SMB/CIFS, SNMP, SMTP, SSL/TLS v1.3, UDP, VLAN, VPN, Zeroconf/mDNS |
| Weatherproof | IP66 |
| Angle of View | 60° X 33° |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
