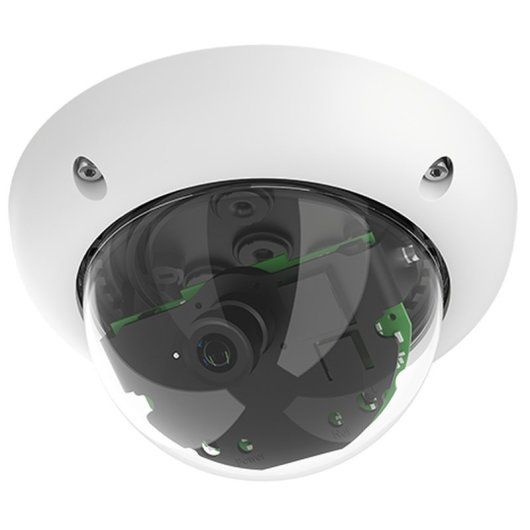

Mobotix Mx-D26B-6N237 6 Megapixel Outdoor Network Dome Camera
SKU
Mx-D26B-6N237
Model No
Mx-D26B-6N237
$1,050.28
Product Highlights
- Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility
- Recording on an internal MicroSD card (4 GB as standard)
- Available in day or night variants (6MP color or B&W sensor)
- Large selection of lenses with viewing angles from 15° to 103°
- Equipped with shock detector and MxAnalytics as standard
Speak to an expert
The Mobotix Mx-D26B-6N237 is a state-of-the-art 6 Megapixel Outdoor Network Dome Camera designed for versatility and resilience. With its advanced video technology and durable construction, this camera provides high-definition surveillance whether in challenging weather or low-light conditions. It offers an intelligent IP video system with compatible integrations, making it an excellent choice for both security professionals and home users.
Mobotix Mx-D26B-6N237 Camera Features
- Mx6 System Platform: 2nd generation platform supporting MxBus, H.264 and ONVIF compatibility for seamless integration into existing network systems.
- Internal MicroSD Recording: Features a 4 GB MicroSD card as standard for reliable storage of video footage without additional equipment.
- Day or Night Variants: Available options include 6MP color or B&W sensors to ensure optimal performance in all lighting conditions.
- Flexible Lens Selection: A wide range of lenses with viewing angles from 15° to 103° allows for tailored surveillance solutions.
- Integrated Shock Detector: MxAnalytics comes standard, adding value through intelligent analytics for enhanced security monitoring.
- Weatherproof Construction: Rated IP66 and IK10, ensuring protection against dust and water ingress, as well as impact resistance for demanding environments.
- Installation Accessories: Includes options for ceiling installation and vandalism protection for added security flexibility.
Mobotix Mx-D26B-6N237 Detailed Specifications
| Feature | Details |
|---|---|
| Camera Type | Outdoor Network Dome Camera |
| Resolution | 6 Megapixels |
| Lens | Manual positioning |
| Video Compression | H.264 |
| Compatibility | ONVIF compliant |
| Weatherproof Rating | IP66 |
| Impact Resistance | IK10 |
| Storage | Internal MicroSD card (4 GB) |
| Analytics Feature | MxAnalytics included |
| Operating Environment | Suitable for outdoor use |
SKU  | Mx-D26B-6N237 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Zoom, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Lens Size | 23.7mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MxPEG+, M-JPEG, JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Image Device | 1/1.8" CMOS, 6MP (3072 x 2048), Progressive Scan |
| Minimum Scene Illumination | Color sensor (day): 0.1 lx @ 1/60s; 0.005 lx @ 1s, BW sensor (night): 0.02 lx @ 1/60s; 0.001 lx @ 1s |
| Operating Temperature | -40 to 50°C (-40 to 122°F) |
| Power Consumption | 5 Watts |
| Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (Client or Server), NTP (Client and Server), SIP (Client and Server) G.711 (PCMA and PCMU) and G.722 |
| Weatherproof | IP66 |
| Angle of View | Horizontal: 15° , Vertical: 11° |
| Audio | Yes |
| Auto Gain Control | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
