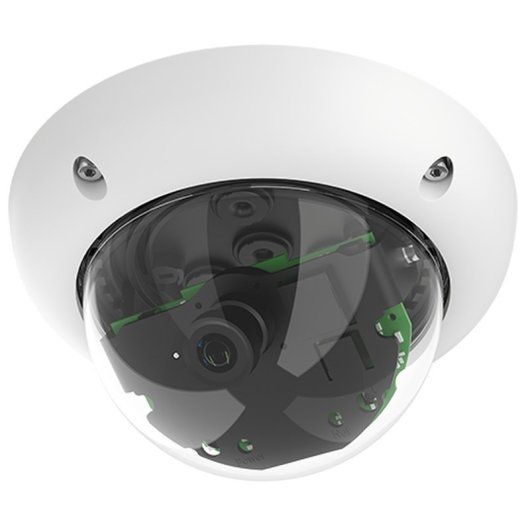

Mobotix Mx-D26B-6N119 6 Megapixel Outdoor Network Dome Camera
SKU
Mx-D26B-6N119
Model No
Mx-D26B-6N119
$1,050.28
Product Highlights
- Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility
- Recording on an internal MicroSD card (4 GB as standard)
- Available in day or night variants (6MP color or B&W sensor)
- Large selection of lenses with viewing angles from 15° to 103°
- Equipped with shock detector and MxAnalytics as standard
Speak to an expert
The Mobotix Mx-D26B-6N119 is a cutting-edge 6 Megapixel Outdoor Network Dome Camera that combines compact design with sophisticated technology. Its manual positioning lens and robust polycarbonate dome ensure versatility and durability, making it ideal for various surveillance needs. With advanced features like H.264 support, recording capability, and weatherproof housing, this camera delivers exceptional performance in demanding environments.
Mobotix Mx-D26B-6N119 Camera Features
- Advanced System Platform: Mx6 system platform 2nd generation for superior performance, including MxBus, H.264, and ONVIF compatibility for seamless integration.
- Storage Solution: Recording on an internal MicroSD card (4 GB as standard) ensures reliable video storage without additional hardware.
- Sensor Options: Available in day or night variants, offering both 6MP color and B&W sensors for flexible surveillance needs.
- Diverse Lens Selection: Large selection of lenses available with viewing angles from 15° to 103°, allowing customization for specific monitoring requirements.
- Built-in Analytics: Equipped with shock detector and MxAnalytics as standard, enhancing operational efficiency and security insights.
- Durable Design: Weatherproof and shock-resistant housing (IP66, IK10) ensures reliability in challenging outdoor conditions.
- Installation Flexibility: Includes accessories for ceiling installation and vandalism protection, offering additional security for sensitive areas.
Mobotix Mx-D26B-6N119 Detailed Specifications
| Camera Type | Outdoor Network Dome |
| Megapixels | 6 Megapixels |
| Camera Dimension | Compact |
| Lens Type | Manual positioning |
| Housing Material | Shock-resistant polycarbonate |
| Weather Resistance | IP66 rated |
| Impact Protection | IK10 rated |
| Storage Capacity | 4 GB MicroSD (standard) |
| Compatibility | ONVIF, H.264 |
| Available Variants | Day/Night (Color/B&W) |
| Viewing Angles | 15° to 103° |
| Analytics Features | MxAnalytics, Shock detector |
SKU  | Mx-D26B-6N119 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Zoom, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Lens Size | 11.9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MxPEG+, M-JPEG, JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Image Device | 1/1.8" CMOS, 6MP (3072 x 2048), Progressive Scan |
| Minimum Scene Illumination | Color sensor (day): 0.1 lx @ 1/60s; 0.005 lx @ 1s, BW sensor (night): 0.02 lx @ 1/60s; 0.001 lx @ 1s |
| Operating Temperature | -40 to 50°C (-40 to 122°F) |
| Power Consumption | 5 Watts |
| Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (Client or Server), NTP (Client and Server), SIP (Client and Server) G.711 (PCMA and PCMU) and G.722 |
| Weatherproof | IP66 |
| Angle of View | Horizontal: 31° , Vertical: 23° |
| Audio | Yes |
| Auto Gain Control | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
