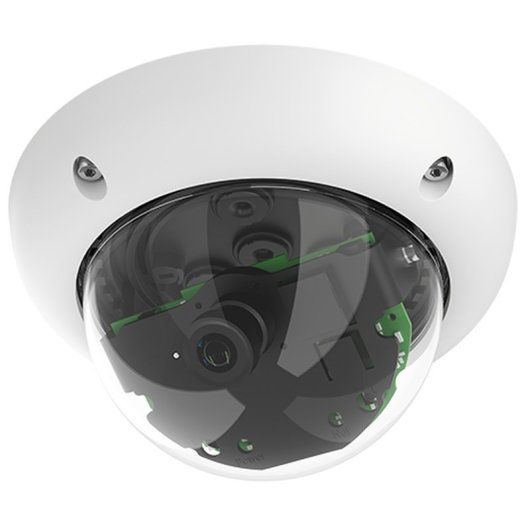

Mobotix Mx-D26B-6D119 6 Megapixel Outdoor Network Dome Camera
SKU
Mx-D26B-6D119
Model No
Mx-D26B-6D119
$1,050.28
Product Highlights
- Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility
- Recording on an internal MicroSD card (4 GB as standard)
- Available in day or night variants (6MP color or B&W sensor)
- Large selection of lenses with viewing angles from 15° to 103°
- Equipped with shock detector and MxAnalytics as standard
Speak to an expert
A compact, intelligent IP video system, the Mobotix Mx-D26B-6D119 is equipped with a manually adjustable lens and a robust, weatherproof polycarbonate dome. Delivering 6 megapixels of clear, high-resolution video, this camera is built on the advanced Mx6 system platform, making it an ideal choice for reliable outdoor surveillance.
Mobotix Mx-D26B-6D119 Camera Features
- Mx6 System Platform: Features advanced capabilities including MxBus, H.264 video compression, and ONVIF compatibility for seamless integration with other systems.
- Internal Recording: Comes with a standard 4GB MicroSD card for secure and easy local video storage.
- Day/Night Variants: Offers options for either 6MP color or black and white sensors, ensuring optimal performance in various lighting conditions.
- Diverse Lens Selection: Supports multiple lenses with viewing angles ranging from 15° to 103°, catering to different surveillance requirements.
- Shock Detector & MxAnalytics: Equipped with these features as standard for enhanced security and intelligent analysis.
- Weatherproof Housing: Built to IP66 and IK10 standards, ensuring durability against harsh weather and vandalism.
- Installation Accessories: Includes options for ceiling installation and additional vandalism protection for versatility and safety.
Detailed Camera Specifications
| Model | Mobotix Mx-D26B-6D119 |
| Resolution | 6 Megapixels |
| System Platform | Mx6 |
| Video Compression | H.264 |
| Storage | 4GB MicroSD (internal) |
| Viewing Angles | 15° to 103° (dependent on lens) |
| IP Rating | IP66 (weatherproof) |
| IK Rating | IK10 (shock-resistant) |
| Compatibility | ONVIF compliant |
| Additional Features | Shock detector, MxAnalytics |
SKU  | Mx-D26B-6D119 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Zoom, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Lens Size | 11.9mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MxPEG+, M-JPEG, JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Image Device | 1/1.8" CMOS, 6MP (3072 x 2048), Progressive Scan |
| Minimum Scene Illumination | Color sensor (day): 0.1 lx @ 1/60s; 0.005 lx @ 1s, BW sensor (night): 0.02 lx @ 1/60s; 0.001 lx @ 1s |
| Operating Temperature | -40 to 50°C (-40 to 122°F) |
| Power Consumption | 5 Watts |
| Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (Client or Server), NTP (Client and Server), SIP (Client and Server) G.711 (PCMA and PCMU) and G.722 |
| Weatherproof | IP66 |
| Angle of View | Horizontal: 31° , Vertical: 23° |
| Audio | Yes |
| Auto Gain Control | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
