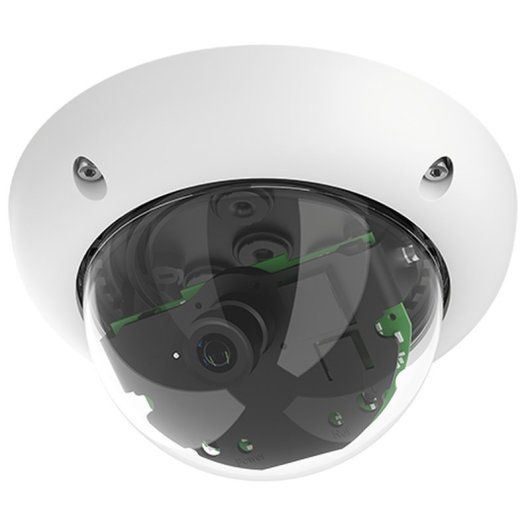

Mobotix Mx-D26B-6D036 6 Megapixel Outdoor Network Dome Camera
SKU
Mx-D26B-6D036
Model No
Mx-D26B-6D036
$1,050.28
Product Highlights
- Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility
- Recording on an internal MicroSD card (4 GB as standard)
- Available in day or night variants (6MP color or B&W sensor)
- Large selection of lenses with viewing angles from 15° to 103°
- Equipped with shock detector and MxAnalytics as standard
Speak to an expert
A compact, intelligent IP video system with a lens that can be positioned manually. A shock-resistant 1.5-mm polycarbonate dome (IK10) makes this camera weatherproof. The MOBOTIX D26B Dome offers the same trailblazing system platform as all the other cameras in the latest generation of MOBOTIX x26/x16 technology.
Mobotix Mx-D26B-6D036 Camera Features
- Mx6 system platform: 2nd generation, with MxBus, H.264 and ONVIF compatibility for seamless integration and high-quality video streaming.
- Internal recording: Supports recording on an internal MicroSD card (4 GB as standard), ensuring reliable storage without external devices.
- Day/Night variants: Available in 6MP color or B&W sensor options, offering flexibility for different lighting conditions.
- Versatile lenses: A wide selection of lenses with viewing angles from 15° to 103°, tailored for various surveillance needs.
- Advanced detection: Equipped with a shock detector and MxAnalytics as standard, providing enhanced security and analytical capabilities.
- Durable housing: Weatherproof and shock-resistant (IP66, IK10), ensuring resilience against harsh environmental conditions.
- Installation accessories: Includes accessories for ceiling installation and vandalism protection for secure placement.
Detailed Specifications for Mobotix Mx-D26B-6D036
| Camera Type | Outdoor Network Dome Camera |
| Megapixels | 6 MP |
| Image Sensor | Color/B&W options available |
| Lens Options | Viewing angles from 15° to 103° |
| Weatherproof Rating | IP66 |
| Shock Rating | IK10 |
| Compatibility | MxBus, H.264, ONVIF |
| Recording Storage | Internal MicroSD card (4 GB standard) |
| Analytics | MxAnalytics, shock detector included |
| Mounting Options | Ceiling installation, vandalism protection accessories included |
SKU  | Mx-D26B-6D036 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Digital Zoom, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, MxPEG+, M-JPEG, JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Image Device | 1/1.8" CMOS, 6MP (3072 x 2048), Progressive Scan |
| Minimum Scene Illumination | Color sensor (day): 0.1 lx @ 1/60s; 0.005 lx @ 1s, BW sensor (night): 0.02 lx @ 1/60s; 0.001 lx @ 1s |
| Operating Temperature | -40 to 50°C (-40 to 122°F) |
| Power Consumption | 5 Watts |
| Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (Client or Server), NTP (Client and Server), SIP (Client and Server) G.711 (PCMA and PCMU) and G.722 |
| Weatherproof | IP66 |
| Angle of View | Horizontal: 103° , Vertical: 77° |
| Audio | Yes |
| Auto Gain Control | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
