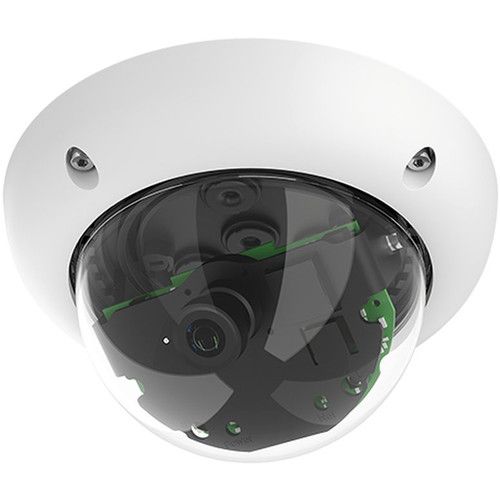

Mobotix Mx-D26A-6D 6 Megapixel Network Outdoor Dome Camera, No Lens
- High-Performance Dome Camera For Indoor And Outdoor Use
- Modular System For Maximum Flexibility
- Powerful, Intelligent And Flexible Mx6 System Platform
- Intelligent 3D Motion Detection And Video Analysis
- Reduced Energy Costs
The Mx-D26A-6D from Mobotix is a 6MP Moonlight Outdoor Dome Camera Body features a 1/1.8" CMOS (day) progressive scan image sensor. Equipped with Moonlight Sensor Technology, the camera offers high light sensitivity and captures detailed color images with reduced motion blurring in poorly illuminated surroundings (0.1 lux at 1/60 sec). It comes with an integrated DVR for high-resolution video recording without affecting network load.
The MxAnalytics function allows you to collect statistical behaviour data on people and objects, making this camera suitable for installation in locations like retail stores and museums. The MxActivitySensor is an activity-controlled, software-based image analysis function for detecting movement of people and objects in a monitored area (full image or section). With an IP66-rated weather-resistant housing, this camera is suitable for outdoor applications.
Features
Mobotix Mx-D26A-6D Camera Features
- High-Performance Dome Camera For Indoor And Outdoor Use: Applicable as day or night system with detailed 6MP color or B/W Sensor.
- Modular System For Maximum Flexibility: Easy-to-exchange lenses with horizontal image angles from 15° to 103°.
- Powerful, Intelligent And Flexible Mx6 System Platform: Simultaneous streaming of up to three video codecs (MxPEG, MJPEG And H.264).
- Intelligent 3D Motion Detection And Video Analysis: MxActivitySensor and MxAnalytics integrated as standard.
- Reduced Energy Costs: Power consumption < 5 W, standard PoE.
- Virtually Maintenance-Free (IP66): Weatherproof, operates reliably from -30 to 50°C.
Mobotix Mx-D26A-6D Detailed Camera Specifications
| Camera Type | Outdoor Dome Camera |
| Image Sensor | 1/1.8" CMOS |
| Resolution | 6 Megapixels |
| Low Light Sensitivity | 0.1 lux at 1/60 sec |
| Video Compression | MxPEG, MJPEG, H.264 |
| Power Consumption | < 5 W (PoE) |
| Operating Temperature | -30 to 50°C |
| Weather Resistance | IP66 rated |
SKU  | Mx-D26A-6D |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Zoom, Motion Detection Tracking, ONVIF, Privacy Masking, Self Recording, Vandal Resistant, Weather Resistant |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 6 Megapixel |
| Lens Type | Not Included |
| Mount Type | Ceiling, Pole, Wall |
| Compression Method | H.264, M-JPEG, MxPEG, JPEG |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 86 x 160 mm |
| Image Device | 1/1.8“ CMOS, 6MP (3072 x 2048), Progressive Scan |
| Minimum Scene Illumination | 1/60 s: 0.1/0.005 (Color)and 1/1 s: 0.02/0.001 (B/W) |
| Operating Temperature | -30 to 50°C/-22 to 122°F |
| Power Consumption | < 5 watts |
| Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, SFTP, RTP, RTSP, UDP, SNMP, SMTP, DHCP (client and server), NTP (client and server), SIP (client and server) G.711 (PCMA and PCMU) and G.722 |
| Weatherproof | IP66 |
| Angle of View | 15° to 103° |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
