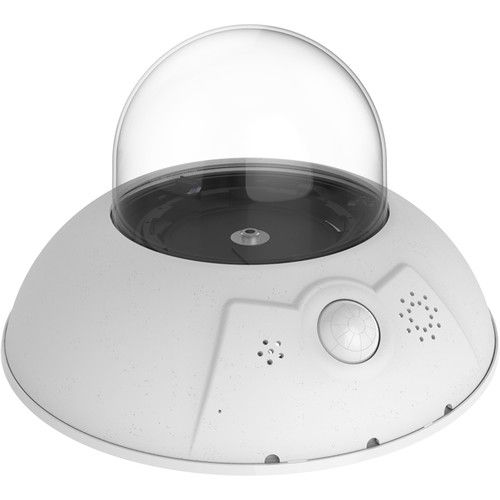

Mobotix Mx-D16B 12 Megapixel Network Dual Dome Camera Body, No Sensor/Lens

SKU
Mx-D16B
Model No
Mx-D16B
$1,278.13
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility
  • Recording on an internal MicroSD card (4 GB as standard)
  • Integrated microphone and speaker
  • Integrated shock detector and PIR sensor
  • Suitable for mounting to a ceiling or wall

The Mx-D16B from Mobotix is two lenses, two HiRes image sensors, internal MicroSD storage, and a dual image of over 12 megapixels make the D16B Dual Dome an efficient security solution: Two different areas can be secured with just one camera. All without fragile mechanical components.

Features

  • Mx6 system platform: 2nd generation with MxBus, H.264 and ONVIF compatibility ensures seamless integration with various security systems.
  • Internal MicroSD recording: Comes standard with a 4 GB MicroSD card for internal storage of critical footage.
  • Integrated audio: Features a microphone and speaker for two-way communication capabilities, enhancing security monitoring.
  • Shock detector and PIR sensor: Built-in sensors detect motion and impacts, providing proactive alerts and damage prevention.
  • Flexible mounting options: Can be mounted on ceilings or walls, offering versatile installation locations according to your security needs.
  • Vandalism set: Designed for use in harsh conditions, this ensures durability in challenging environments.
  • Corner and pole installation: Easy to install on building corners and poles, maximizing coverage in difficult-to-reach spots.
  • Market availability: Note that the complete D16B series is not available in the Americas, limiting accessibility for some users.

Mobotix Mx-D16B Camera Features

Detailed Specifications for Mobotix Mx-D16B

Camera TypeDual Dome Camera Body
Resolution12 Megapixels
Image SensorsTwo HiRes Image Sensors
Recording StorageInternal MicroSD (4 GB Standard)
Audio FeaturesIntegrated Microphone and Speaker
Motion DetectionPIR sensor and Shock Detector
Mounting OptionsCeiling, Wall, Corner, Pole
Environmental ResistanceVandalism Set for Harsh Conditions
CompatibilityH.264 and ONVIF
Market AvailabilityComplete D16B series not available in the Americas
SKU  Mx-D16B
Features  Audio, Auto Gain Control, Digital Zoom, ONVIF, Privacy Masking
Manufacturer  Mobotix
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    12 Megapixel
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, MxPEG
Durability    Vandal Resistant, Weather Resistant
Voltage  PoE
Dimensions (W x H)  108 x 205 mm
Image Device    1/1.8“ CMOS, 6MP (3072 x 2048), Progressive Scan
Minimum Scene Illumination  0.1/0.005 (Color), 0.02/0.001 (B/W)
Operating Temperature    -40 to 60°C/-40 to 140°F (cold boot from -30°C/-22°F, no permanent operation at 60°C/140°F
Power Consumption  8 watts
Protocols  IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (client and server), NTP (client and server), SIP (client and server) G.711 (PCMA and PCMU) and G.722
Weatherproof    IP66
AudioYes
Auto Gain Control    Yes
Privacy Masking    Yes
ONVIF  Yes
Digital ZoomYes
