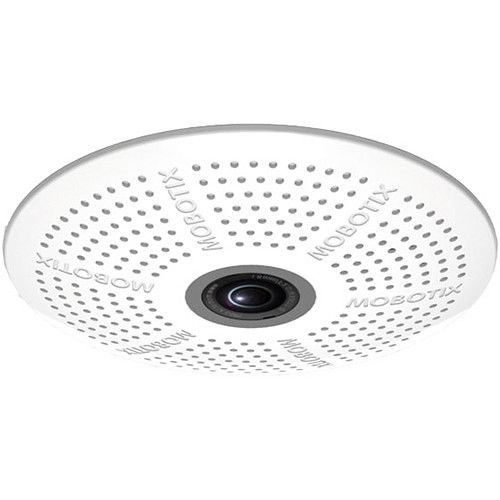

Mobotix Mx-c26B-6D036 6 Megapixel Network Dome Camera with Day Sensor and B036 Lens
SKU
Mx-c26B-6D036
Model No
Mx-c26B-6D036
$600.25
Product Highlights
- Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility
- Recording on an internal MicroSD card (4 GB as standard)
- For ceiling or corner installation, optional on-wall set
- MxAnalytics Video Analysis tools as standard
- Variants with audio package (microphone and speaker)
Speak to an expert
The Mx-c26B-6D036 from Mobotix is the smallest and lightest MOBOTIX hemispheric complete video system designed for seamless ceiling installation indoors. Equipped with a high-performance 6MP day sensor and advanced MxAnalytics video analysis tools, this camera enhances security and monitoring capabilities, making it perfect for observing customer flows in retail environments. Additionally, the camera offers an optional MxIOBoard-IC for greater connectivity and versatility.
Mobotix Mx-c26B-6D036 Camera Features
- Mx6 System Platform: Features 2nd generation MxBus, H.264, and ONVIF compatibility for versatile integration.
- Internal Recording: Comes with a 4 GB MicroSD card as standard for easy data storage.
- Flexible Installation: Designed for ceiling or corner mounting, with an optional on-wall set available for varied setups.
- MxAnalytics Video Tools: Offers standard video analysis capabilities for improved insights into customer movements.
- Audio Variants Available: Optional audio package includes a microphone and speaker for two-way communication.
- Integrated Sensors: Includes vibration and temperature sensors for enhanced monitoring capabilities.
- Easy Installation: Simple to install, akin to fitting a spotlight, reducing setup time and labor costs.
Mobotix Mx-c26B-6D036 Detailed Camera Specifications
| Feature | Details |
|---|---|
| Camera Type | Network Dome Camera |
| Resolution | 6 Megapixels |
| Sensor Type | Day Sensor |
| Lens | B036 Lens |
| Dimensions | Compact and lightweight design for easy installation |
| Operating Temperature | -30°C to +60°C |
| Power Supply | 12V DC power with optional MxIOBoard-IC |
| Connectivity | Support for MxBus, H.264 video compression, and ONVIF |
SKU  | Mx-c26B-6D036 |
|---|---|
| Features | Audio, Auto Gain Control, Digital Zoom, ONVIF, Privacy Masking |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, MxPEG |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | 51 x 120 mm |
| Image Device | 1/1.8“ CMOS, 6MP (3072 x 2048), Progressive Scan |
| Minimum Scene Illumination | 0.1/0.005 (Color) |
| Operating Temperature | 0 to 40°C (32 to 104 °F) |
| Power Consumption | 5 watts |
| Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (client and server), NTP (client and server), SIP (client and server) G.711 (PCMA and PCMU) and G.722 |
| Audio | Yes |
| Auto Gain Control | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
