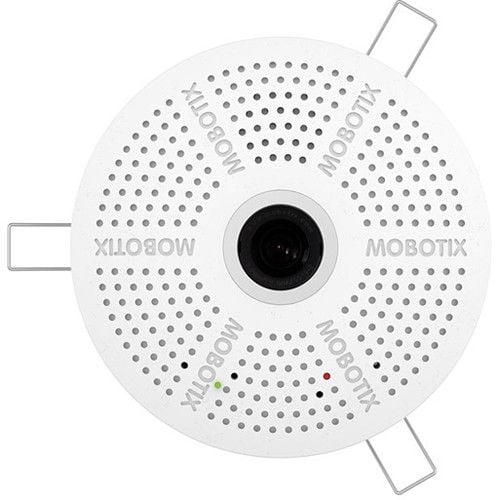

Mobotix Mx-c26B-6D 6 Megapixel Network Dome Camera Body with Day Sensor, No Lens
SKU
Mx-c26B-6D
Model No
Mx-c26B-6D
$535.99
Product Highlights
- Mx6 system platform 2nd generation, with MxBus, H.264 and ONVIF compatibility
- Recording on an internal MicroSD card (4 GB as standard)
- For ceiling or corner installation, optional on-wall set
- MxAnalytics Video Analysis tools as standard
- Variants with audio package (microphone and speaker)
Speak to an expert
The Mx-c26B-6D from Mobotix is the smallest and lightest MOBOTIX hemispheric complete video system designed for ceiling installation indoors. It features a light-sensitive 6MP day sensor and advanced MxAnalytics video analysis tools, making it ideal for monitoring customer movements in retail environments. With easy installation and expandable connectivity options, this camera streamlines security and enhances customer experience.
Mobotix Mx-c26B-6D Camera Features
- Mx6 system platform: 2nd generation with MxBus for enhanced compatibility with H.264 and ONVIF, ensuring versatile integration with existing systems.
- MicroSD card recording: Comes with a 4 GB internal card as standard, allowing for convenient storage and retrieval of video footage.
- Flexible installation: Designed for ceiling or corner installation with an optional on-wall set, accommodating various mounting preferences.
- Advanced MxAnalytics: Video analysis tools included, enabling detailed tracking of customer interactions for better retail insights.
- Audio capabilities: Variants available with audio packages (microphone and speaker), enhancing communication options for dynamic security use.
- Integrated sensors: Features built-in vibration and temperature sensors for additional monitoring capabilities and environmental awareness.
- Simple installation: Designed for straightforward installation similar to that of a spotlight, reducing setup time and complexity.
Mobotix Mx-c26B-6D Detailed Specifications
| Feature | Details |
|---|---|
| Camera Type | Network Dome Camera |
| Sensor Resolution | 6 Megapixels |
| Day Sensor | Light-sensitive for optimal daytime performance |
| Storage | Internal MicroSD card support (4 GB included) |
| Video Compression | H.264 |
| Connectivity | Compatible with ONVIF and MxBus |
| Installation Options | Ceiling or corner with optional wall mount |
| Email Notifications | Enabled through MxAnalytics tools |
| Power Supply | 12V outputs available with MxIOBoard-IC (optional) |
| Additional Features | Integrated vibration and temperature sensors |
SKU  | Mx-c26B-6D |
|---|---|
| Features | Audio, Auto Gain Control, Digital Zoom, ONVIF, Privacy Masking |
| Manufacturer | Mobotix |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 6 Megapixel |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, MxPEG |
| Durability | Indoor |
| Voltage | PoE |
| Dimensions (W x H) | 51 x 120 mm |
| Image Device | 1/1.8“ CMOS, 6MP (3072 x 2048), Progressive Scan |
| Minimum Scene Illumination | 0.1/0.005 (Color) |
| Operating Temperature | 0 to 40°C (32 to 104 °F) |
| Power Consumption | 5 watts |
| Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, RTP, RTSP, UDP, SNMP, SMTP, DHCP (client and server), NTP (client and server), SIP (client and server) G.711 (PCMA and PCMU) and G.722 |
| Audio | Yes |
| Auto Gain Control | Yes |
| Privacy Masking | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
