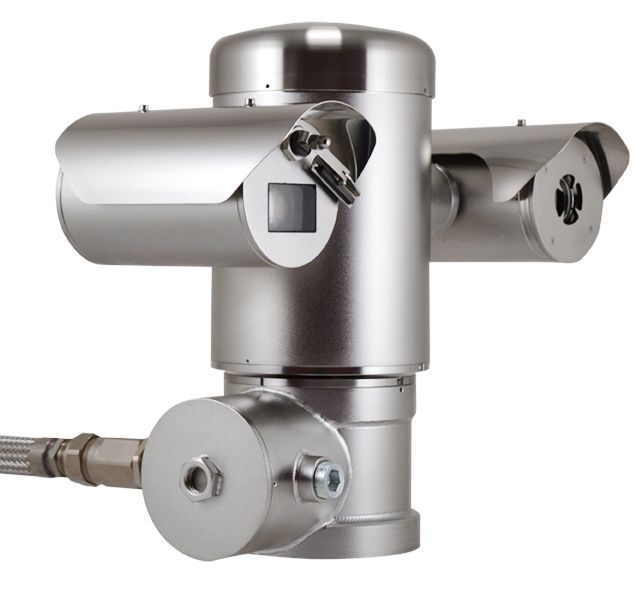

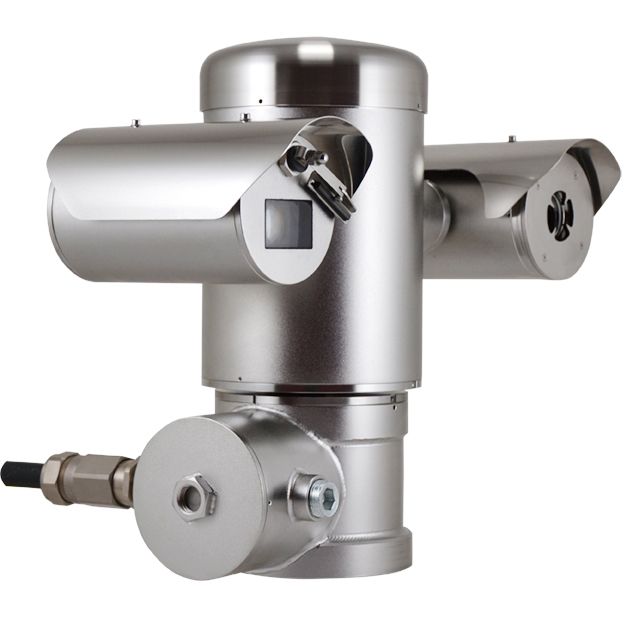

Pelco MPXT32EA000CH 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera with 30X Lens
SKU
MPXT32EA000CH
Model No
MPXT32EA000CH
$34,780.95
Product Highlights
- PTZ network camera with dual sensor, thermal and Full HD
- Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
- Certified up to a temperature of +80°C
- Junction box with integrated SFP slot to allow fiber optic connection
Speak to an expert
The Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera offers an advanced surveillance solution specially designed for high-risk environments such as oil and gas, maritime, and industrial sectors. With its dual-sensor technology, this camera effectively captures both thermal and daylight images, ensuring reliable monitoring 24/7. Its robust construction provides high resistance to corrosive elements, and it is certified for use in challenging weather conditions, making it an ideal choice for demanding applications.
Pelco 2 Megapixel Network Outdoor PTZ Camera Features
- Certified Safety: Explosion-proof for use in Zones 1 and 2, ensuring safety in hazardous environments.
- Durable Build: Constructed from AISI 316L stainless steel, offering maximum resistance against corrosion.
- All-Weather Protection: IP66/IP67/IP68/IP69 and NEMA Type 4X/6P certified for total protection against dust and water ingress.
- Dynamic Imaging: Dual sensor technology providing both LWIR thermal and Full HD visible imaging for comprehensive situational awareness.
- Remote Monitoring: Includes a junction box with integrated SFP slot to facilitate fiber optic connections.
- Comprehensive Coverage: Supports pan-tilt-zoom functions to monitor large areas effectively.
Pelco 2 Megapixel Network Outdoor PTZ Detailed Specifications
| Specification | Details |
|---|---|
| Camera Type | PTZ network camera with dual sensor |
| Temperature Certification | Up to +80°C |
| Explosion Proof Rating | Zones 1 & 2 (Gas), Zones 21 & 22 (Dust) |
| Integrated Features | Includes a junction box with SFP slot |
SKU  | MPXT32EA000CH |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 120vAC |
| Automatic Gain Control (AGC) | 10.7dB up to 50dB |
| Dimensions (W x H) | 54x31x49cm (21x12x19in) - |
| Electronic Shutter | 1/1s up to 1/10000s (Auto, Manual) |
| Image Device | 1/2.8" Exmor™ R CMOS sensor |
| Operating Humidity | 5% up to 95% |
| Operating Temperature | -40°C (-40°F) up to +80°C (+176°F) |
| Power Consumption | 120W max |
| Privacy Zone | Maximum 24 masks settable, maximum 8 |
| Protocols | TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
| Weatherproof | IP66/IP67/IP68/IP69 |
| Digital Noise Reduction | (2D, 3D): Off, On (from level 1 up to level 5) |
| Angle of View | Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end), Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end) |
| Rotation Angle | Horizontal rotation: 360°, continuous rotation, Vertical rotation: from -90° up to +90° |
| Back Light Compensation | On/Off |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
