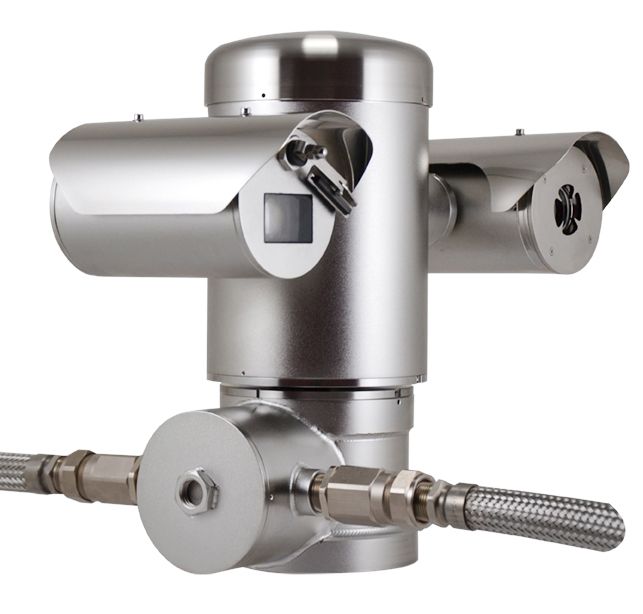

Pelco MPXT32BA000C 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera with 30X Lens

SKU
MPXT32BA000C
Model No
MPXT32BA000C
$24,740.99
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • PTZ network camera with dual sensor, thermal and Full HD
  • Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
  • Certified up to a temperature of +80°C
  • Junction box with integrated SFP slot to allow fiber optic connection

The Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera offers advanced surveillance capabilities with a robust design tailored for high-risk environments. Its dual vision technology integrates a thermal camera with a Full HD unit, ensuring optimal monitoring in various conditions while maintaining high standards of durability and protection against harsh elements.

Pelco 2 Megapixel Network Outdoor PTZ Camera Features

  • Dual Vision Technology: Combines thermal imaging and Full HD capabilities for comprehensive surveillance, enabling detection of both heat and visual detail in one solution.
  • Explosion-Proof Design: Certified for use in Zones 1 and 2, making it suitable for hazardous environments, thus ensuring safety and compliance.
  • Corrosion Resistance: Constructed from AISI 316L stainless steel with electro-polished surfaces, providing maximum durability in harsh industrial and maritime settings.
  • High Weather Protection: IP66/IP67/IP68/IP69 and NEMA Type 4X & 6P certified to prevent water and dust entry, ensuring continuous outdoor operation.
  • Integrated Auto Features: Equipped with Auto Gain Control and Auto White Balance for optimal image quality under varying lighting conditions.
  • Advanced Monitoring Capabilities: Supports Motion Detection, Privacy Masking, and On-screen Display Menu for user-friendly operation and security customization.
  • Easy Integration: Features an integrated SFP slot for fiber optic connection, facilitating seamless network integration.

Pelco 2 Megapixel Network Outdoor PTZ Camera Specifications

SpecificationDetails
Camera TypePTZ network camera with dual sensor: thermal and Full HD
Temperature CertificationCertified up to +80°C
Explosion Proof CertificationSuitable for Zones 1 and 2 (Gas), Zones 21 and 22 (Dust)
Construction MaterialAISI 316L stainless steel
Protection RatingIP66/IP67/IP68/IP69, NEMA Type 4X, Type 6P
Integrated FeaturesAuto Gain Control, Auto White Balance, Motion Detection
Additional FeaturesOnvif compatibility, Digital Zoom, and Weather Resistance
Network CapabilityIntegrated SFP slot for fiber optic connection
SKU  MPXT32BA000C
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Pelco
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Motorized Zoom
Lens Size    30X
Mount Type  Bracket Required
Compression Method    H.264, MPEG-4, M-JPEG
Durability    Weather Resistant
Voltage  120vAC
Automatic Gain Control (AGC)    10.7dB up to 50dB
Dimensions (W x H)  54x31x49cm (21x12x19in) -
Electronic Shutter    1/1s up to 1/10000s (Auto, Manual)
Image Device    1/2.8" Exmor™ R CMOS sensor
Operating Humidity    5% up to 95%
Operating Temperature    -40°C (-40°F) up to +80°C (+176°F)
Power Consumption  120W max
Privacy Zone    Maximum 24 masks settable, maximum 8
Protocols  TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
Weatherproof    IP66/IP67/IP68/IP69
Digital Noise Reduction    (2D, 3D): Off, On (from level 1 up to level 5)
Angle of View    Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end), Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end)
Rotation AngleHorizontal rotation: 360°, continuous rotation, Vertical rotation: from -90° up to +90°
Back Light Compensation  On/Off
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
Digital ZoomYes
