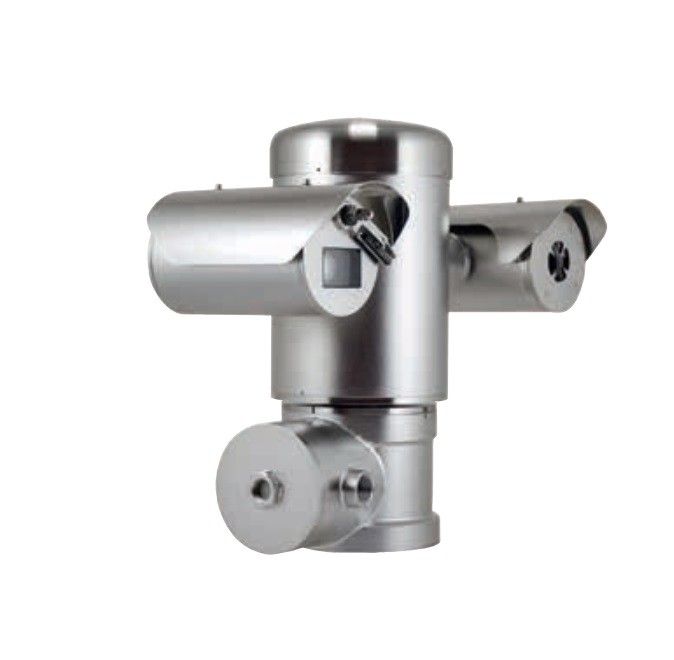

Pelco MPXT32AA0R0C 2 Megapixel Network Outdoor PTZ Camera with 30X Lens
SKU
MPXT32AA0R0C
Model No
MPXT32AA0R0C
$28,726.20
Product Highlights
- PTZ network camera with dual sensor, thermal and Full HD
- Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
- Certified up to a temperature of +80°C
- Junction box with integrated SFP slot to allow fiber optic connection
Speak to an expert
Introducing the Pelco MPXT32AA0R0C 2 Megapixel Network Outdoor PTZ Camera, designed for demanding environments with its robust explosion-proof certification and high-performance capabilities. This advanced PTZ camera offers exceptional thermal imaging alongside Full HD capabilities, ensuring superior visibility and security in various settings. With its compliance to strict safety standards and certifications, this camera is perfect for marine and offshore applications.
Pelco MPXT32AA0R0C Camera Features
- Dual Sensor Technology: Combines thermal imaging with Full HD capabilities, providing versatility in surveillance and enhanced detection in challenging conditions.
- Explosion-Proof Certification: Certified for use in Zones 1 and 2 (Group IIC for gas) and Zones 21 and 22 (Group IIIC for dust), ensuring safe operation in hazardous environments.
- High Temperature Tolerance: Designed to operate effectively at temperatures reaching +80°C, making it ideal for extreme conditions.
- Integrated SFP Slot: Features a junction box with an SFP slot for seamless fiber optic connectivity, enhancing transmission reliability over long distances.
Pelco MPXT32AA0R0C Detailed Camera Specifications
| Feature | Details |
|---|---|
| Camera Type | 2 Megapixel Network Outdoor PTZ Camera |
| Lens | 30X Optical Zoom |
| Resolution | Full HD |
| Temperature Rating | Up to +80°C |
| Explosion-Proof Rating | Certified for Zones 1, 2 (Group IIC), 21, 22 (Group IIIC) |
| Additional Features | Junction box with integrated SFP slot for fiber optic connection |
| Certifications | Lloyd's Register Marine Type Approval |
SKU  | MPXT32AA0R0C |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Flickerless, Motion Detection Tracking, ONVIF, Privacy Masking, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG, JPEG |
| Durability | Weather Resistant |
| Voltage | 120vAC |
| Dimensions (W x H) | 54x31x49cm (21x12x19in) |
| Electronic Shutter | 1/1s up to 1/10000s (Auto, Manual) |
| Image Device | 1/2.8" Exmor™ R CMOS sensor |
| Operating Humidity | 5% up to 95% |
| Operating Temperature | 40°C (-40°F) up to +80°C (+176°F) |
| Power Consumption | 120W max |
| Privacy Zone | maximum 24 masks settable, maximum 8 |
| S/N Ratio | from 0dB up to 50.0dB (Auto, Manual) |
| Weatherproof | IP66|IP67|IP68|IP69 |
| Automatic White Balance | Auto, Auto Tracing, Indoor, Outdoor, Manual, Outdoor Auto, Sodium Lamp (Fix/Auto/Outdoor Auto) |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
