Pelco MPXT32AA000CH 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera with 30X Lens
SKU
MPXT32AA000CH
Model No
MPXT32AA000CH
$24,948.14
Product Highlights
- PTZ network camera with dual sensor, thermal and Full HD
- Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
- Certified up to a temperature of +80°C
- Junction box with integrated SFP slot to allow fiber optic connection
Speak to an expert

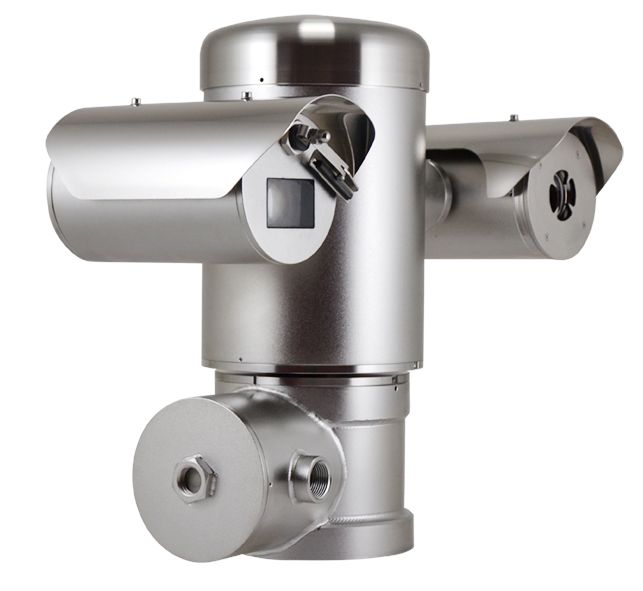

Introducing the Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera, an advanced surveillance solution designed for high-risk environments. This certified explosion-proof camera combines dual vision capabilities—thermal and Full HD, providing exceptional clarity day and night. Built to withstand harsh conditions with AISI 316L stainless steel construction, it is ideal for the Oil & Gas, Maritime, and Industrial sectors, ensuring comprehensive protection against environmental hazards and mechanical stress.
Pelco 2 Megapixel Network Outdoor PTZ Camera Features
- Dual Vision Technology: Integrates thermal and Full HD capabilities, allowing for superior visibility in various lighting conditions.
- Rugged Construction: Made of AISI 316L stainless steel with electro-polished surfaces, ensuring long-lasting durability in corrosive and marine environments.
- High Protection Ratings: IP66/IP67/IP68/IP69 and NEMA Type 4X certification for complete resistance against water and dust ingress.
- Temperature Certified: Operational up to +80°C, making it reliable for extreme heat applications.
- Explosion-Proof Certification: Suitable for use in Zones 1 and 2 (Gas) and Zones 21 and 22 (Dust), enhancing safety in hazardous locations.
Detailed Specifications for Pelco MPXT SERIES2
| Specification | Details |
|---|---|
| Model | Pelco MPXT SERIES2 |
| Camera Type | 2 Megapixel Network Outdoor PTZ |
| Video Resolution | Full HD |
| Sensor Type | Dual Sensor (Thermal & Optical) |
| Material | AISI 316L Stainless Steel |
| Ingress Protection | IP66/IP67/IP68/IP69, NEMA Type 4X & Type 6P |
| Operating Temperature | Up to +80°C |
| Weight | Varies based on configuration |
| Certifications | Explosion-proof for Zones 1/2 and 21/22 |
SKU  | MPXT32AA000CH |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 120vAC |
| Automatic Gain Control (AGC) | 10.7dB up to 50dB |
| Dimensions (W x H) | 54x31x49cm (21x12x19in) - |
| Electronic Shutter | 1/1s up to 1/10000s (Auto, Manual) |
| Image Device | 1/2.8" Exmor™ R CMOS sensor |
| Operating Humidity | 5% up to 95% |
| Operating Temperature | -40°C (-40°F) up to +80°C (+176°F) |
| Power Consumption | 120W max |
| Privacy Zone | Maximum 24 masks settable, maximum 8 |
| Protocols | TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
| Weatherproof | IP66/IP67/IP68/IP69 |
| Digital Noise Reduction | (2D, 3D): Off, On (from level 1 up to level 5) |
| Angle of View | Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end), Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end) |
| Rotation Angle | Horizontal rotation: 360°, continuous rotation, Vertical rotation: from -90° up to +90° |
| Back Light Compensation | On/Off |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
