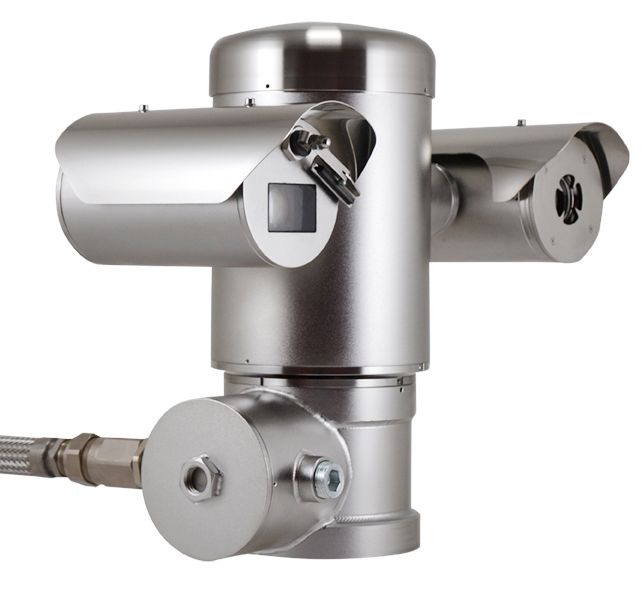

Pelco MPXT22EA000CH 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera with 30X Lens
SKU
MPXT22EA000CH
Model No
MPXT22EA000CH
$28,114.44
Product Highlights
- PTZ network camera with dual sensor, thermal and Full HD
- Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
- Certified up to a temperature of +80°C
- Junction box with integrated SFP slot to allow fiber optic connection
Speak to an expert
The Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera is designed for demanding environments, making it an ideal solution for video surveillance in the Oil & Gas, Maritime, and Industrial sectors. This advanced camera combines thermal imaging and full HD capabilities, ensuring maximum durability, protection against harsh conditions, and exceptional performance, all while minimizing the risk of fire or explosion due to its explosion-proof certifications.
Pelco 2 Megapixel Network Outdoor PTZ Camera Highlights
- Explosion-proof Design: Certified for use in hazardous environments, ensuring safety in Zones 1 and 2 for gas and Zones 21 and 22 for dust.
- Dual Imaging Technology: Combines LWIR thermal imaging with full HD capabilities for enhanced situational awareness in various lighting conditions.
- Durable Construction: Made with AISI 316L stainless steel that resists corrosion, ideal for industrial and marine applications.
- High Protection Ratings: IP66/IP67/IP68/IP69 and NEMA Type 4X, providing complete protection against dust and water ingress.
- Low Latency Tracking: Advanced controls enable smooth pan, tilt, and zoom operations for effective object tracking.
- Integrated IR Illumination: Capable of seeing up to 200 meters in complete darkness, enhancing visibility and surveillance capabilities.
- Advanced Features Included: Auto Gain Control, Auto White Balance, Digital Zoom, and Motion Detection for improved image quality and monitoring precision.
Pelco 2 Megapixel Network Outdoor PTZ Camera Specifications
| Specification | Details |
|---|---|
| Camera Type | PTZ network camera with dual sensor (thermal and Full HD) |
| Temperature Rating | Certified up to +80°C |
| Explosion-proof Certification | Certified for Zones 1 and 2 (Gas), Zones 21 and 22 (Dust) |
| Communication | Includes junction box with integrated SFP slot for fiber optics |
SKU  | MPXT22EA000CH |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 24vAC |
| Automatic Gain Control (AGC) | 10.7dB up to 50dB |
| Dimensions (W x H) | 54x31x49cm (21x12x19in) - |
| Electronic Shutter | 1/1s up to 1/10000s (Auto, Manual) |
| Image Device | 1/2.8" Exmor™ R CMOS sensor |
| Operating Humidity | 5% up to 95% |
| Operating Temperature | -40°C (-40°F) up to +80°C (+176°F) |
| Power Consumption | 120W max |
| Privacy Zone | Maximum 24 masks settable, maximum 8 |
| Protocols | TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
| Weatherproof | IP66/IP67/IP68/IP69 |
| Digital Noise Reduction | (2D, 3D): Off, On (from level 1 up to level 5) |
| Angle of View | Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end), Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end) |
| Rotation Angle | Horizontal rotation: 360°, continuous rotation, Vertical rotation: from -90° up to +90° |
| Back Light Compensation | On/Off |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
