Pelco MPXT22EA000C 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera with 30X Lens

SKU
MPXT22EA000C
Model No
MPXT22EA000C
$31,831.30
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • PTZ network camera with dual sensor, thermal and Full HD
  • Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
  • Certified up to a temperature of +80°C
  • Junction box with integrated SFP slot to allow fiber optic connection

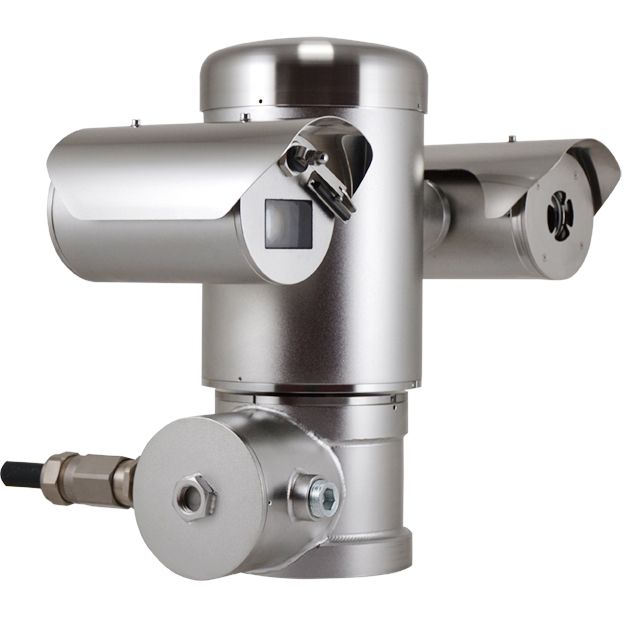

The Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera is a cutting-edge surveillance solution designed for safety and security in challenging environments. With its dual sensor for both thermal and Full HD imaging, this camera delivers exceptional image quality and reliability. Its explosion-proof certification makes it ideal for use in high-risk areas, such as oil and gas industries, while its robust construction ensures durability in harsh weather conditions. Key features include advanced motion detection, auto gain control, and a user-friendly on-screen display menu, all of which contribute to enhanced performance and user experience.

Pelco 2 Megapixel Camera Functions

  • Dual Vision Capability: Combines both thermal and Full HD imaging for comprehensive surveillance in various lighting conditions.
  • Explosion-Proof Certification: Safe for use in Zones 1 and 2 for gases and Zones 21 and 22 for dust, ensuring secure monitoring in hazardous environments.
  • Durable Construction: Made from AISI 316L stainless steel with corrosion-resistant properties, extending the camera's lifespan in challenging conditions.
  • IP66/IP67/IP68/IP69 Rating: Provides full protection against dust, water, and harsh weather, making it suitable for outdoor applications.
  • Integrated IR Illumination: Allows for effective monitoring in complete darkness, with vision up to 200 meters.
  • Advanced Image Processing: Features such as auto gain control and 3D digital noise reduction enhance video clarity and detail.

Pelco 2 Megapixel Detailed Camera Specifications

Camera FeatureDetails
Camera TypePTZ Network Camera with Dual Sensor (Thermal and Full HD)
Operating TemperatureCertified up to +80°C
Explosion-Proof CertificationCertified for use in Zones 1 and 2 (Gas) and Zones 21 and 22 (Dust)
Construction MaterialAISI 316L Stainless Steel
Protection RatingsIP66/IP67/IP68/IP69, NEMA Type 4X and Type 6P
IR Illumination RangeUp to 200 meters in darkness
Video Processing FeaturesAuto Gain Control, 3D Digital Noise Reduction, Privacy Masking
SKU  MPXT22EA000C
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Pelco
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Motorized Zoom
Lens Size    30X
Mount Type  Bracket Required
Compression Method    H.264, MPEG-4, M-JPEG
Durability    Weather Resistant
Voltage  24vAC
Automatic Gain Control (AGC)    10.7dB up to 50dB
Dimensions (W x H)  54x31x49cm (21x12x19in) -
Electronic Shutter    1/1s up to 1/10000s (Auto, Manual)
Image Device    1/2.8" Exmor™ R CMOS sensor
Operating Humidity    5% up to 95%
Operating Temperature    -40°C (-40°F) up to +80°C (+176°F)
Power Consumption  120W max
Privacy Zone    Maximum 24 masks settable, maximum 8
Protocols  TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
Weatherproof    IP66/IP67/IP68/IP69
Digital Noise Reduction    (2D, 3D): Off, On (from level 1 up to level 5)
Angle of View    Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end), Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end)
Rotation AngleHorizontal rotation: 360°, continuous rotation, Vertical rotation: from -90° up to +90°
Back Light Compensation  On/Off
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
Digital ZoomYes
