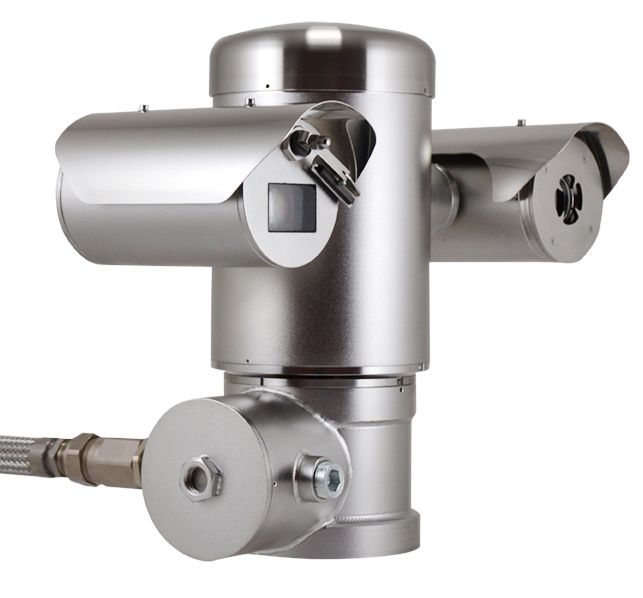

Pelco MPXT22DA000CH 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera with 30X Lens
SKU
MPXT22DA000CH
Model No
MPXT22DA000CH
$34,780.95
Product Highlights
- PTZ network camera with dual sensor, thermal and Full HD
- Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
- Certified up to a temperature of +80°C
- Junction box with integrated SFP slot to allow fiber optic connection
Speak to an expert
The Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera is engineered for exceptional surveillance performance in challenging environments. With its advanced dual sensor technology featuring both thermal and Full HD capabilities, this camera guarantees superior image quality and reliability for various applications, especially in Oil & Gas, Maritime, and Industrial sectors. Its robust construction, high certifications for explosion-proof standards, and weather resistance make it the ideal choice for safety-critical monitoring.
Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera Features
- Dual Vision Technology: Combines thermal and Full HD imaging, providing versatile monitoring capabilities that enhance situational awareness.
- Explosion-Proof Certification: Meets stringent safety standards, designed for use in Zones 1 and 2, ensuring reliable operation in hazardous environments.
- Weather Resistance: Rated IP66/IP67/IP68/IP69, NEMA Type 4X and 6P, delivering robust protection against dust and water ingress.
- Durable Construction: Built from AISI 316L stainless steel with electro-polished surfaces, ensuring maximum resistance to corrosion in harsh settings.
- High Temperature Tolerance: Certified to operate effectively at temperatures up to +80°C, allowing for use in varied climatic conditions.
- Wide Area Coverage: Offers comprehensive surveillance through continuous pan-tilt-zoom capabilities, making it ideal for tracking and monitoring vast areas.
Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera Specifications
| Specification | Details |
|---|---|
| Camera Type | PTZ network camera with dual sensor, thermal and Full HD |
| Temperature Certification | Certified up to a temperature of +80°C |
| Explosion-Proof Certification | Certified for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust) |
| Junction Box | Includes integrated SFP slot for fiber optic connection |
SKU  | MPXT22DA000CH |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 24vAC |
| Automatic Gain Control (AGC) | 10.7dB up to 50dB |
| Dimensions (W x H) | 54x31x49cm (21x12x19in) - |
| Electronic Shutter | 1/1s up to 1/10000s (Auto, Manual) |
| Image Device | 1/2.8" Exmor™ R CMOS sensor |
| Operating Humidity | 5% up to 95% |
| Operating Temperature | -40°C (-40°F) up to +80°C (+176°F) |
| Power Consumption | 120W max |
| Privacy Zone | Maximum 24 masks settable, maximum 8 |
| Protocols | TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
| Weatherproof | IP66/IP67/IP68/IP69 |
| Digital Noise Reduction | (2D, 3D): Off, On (from level 1 up to level 5) |
| Angle of View | Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end), Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end) |
| Rotation Angle | Horizontal rotation: 360°, continuous rotation, Vertical rotation: from -90° up to +90° |
| Back Light Compensation | On/Off |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
