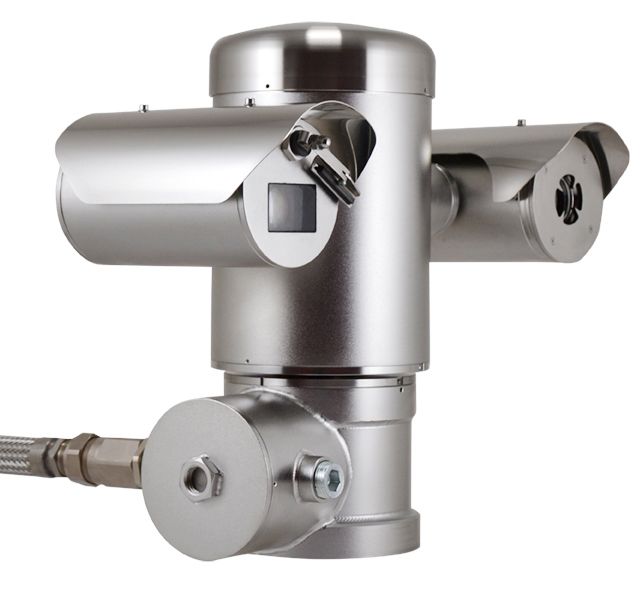

Pelco MPXT22DA000C 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera with 30X Lens
SKU
MPXT22DA000C
Model No
MPXT22DA000C
$31,831.30
Product Highlights
- PTZ network camera with dual sensor, thermal and Full HD
- Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
- Certified up to a temperature of +80°C
- Junction box with integrated SFP slot to allow fiber optic connection
Speak to an expert
The Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera offers advanced surveillance capabilities with dual sensor technology combining thermal and Full HD imaging for optimal coverage in various industrial environments. Designed for resilience against harsh conditions, this explosion-proof camera is ideal for oil, gas, maritime, and other high-risk industries, ensuring reliable performance with top-tier specifications and features.
Pelco 2 Megapixel Network Outdoor PTZ Camera Features
- Dual Sensor Technology: Combines thermal and Full HD imaging for comprehensive monitoring, enhancing safety and security.
- Explosion-Proof Certification: Certified for use in Zones 1 and 2 (Gas) and Zones 21 and 22 (Dust), ensuring safety in hazardous environments.
- Weather Resistance: With IP66/IP67/IP68/IP69 ratings, it provides robust protection against dust and water, making it suitable for outdoor applications.
- Durable Construction: Made from AISI 316L stainless steel, enhancing durability in corrosive environments.
- High Temperature Tolerance: Certified to operate at extreme temperatures up to +80°C, ensuring functionality in varying climates.
- Integrated SFP Slot: Allows fiber optic connectivity, facilitating advanced network integration.
Pelco 2 Megapixel Camera Specifications
| Feature | Details |
|---|---|
| Camera Type | PTZ network camera with dual sensor, thermal and Full HD |
| Certifications | Explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust) |
| Junction Box | Integrated with SFP slot for fiber optic connection |
| Material | AISI 316L stainless steel with micro-shot peened and electro-polished surfaces |
| IP Rating | IP66/IP67/IP68/IP69, NEMA Type 4X, and Type 6P |
| Operating Temperature | Up to +80°C |
SKU  | MPXT22DA000C |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 24vAC |
| Automatic Gain Control (AGC) | 10.7dB up to 50dB |
| Dimensions (W x H) | 54x31x49cm (21x12x19in) - |
| Electronic Shutter | 1/1s up to 1/10000s (Auto, Manual) |
| Image Device | 1/2.8" Exmor™ R CMOS sensor |
| Operating Humidity | 5% up to 95% |
| Operating Temperature | -40°C (-40°F) up to +80°C (+176°F) |
| Power Consumption | 120W max |
| Privacy Zone | Maximum 24 masks settable, maximum 8 |
| Protocols | TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
| Weatherproof | IP66/IP67/IP68/IP69 |
| Digital Noise Reduction | (2D, 3D): Off, On (from level 1 up to level 5) |
| Angle of View | Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end), Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end) |
| Rotation Angle | Horizontal rotation: 360°, continuous rotation, Vertical rotation: from -90° up to +90° |
| Back Light Compensation | On/Off |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
