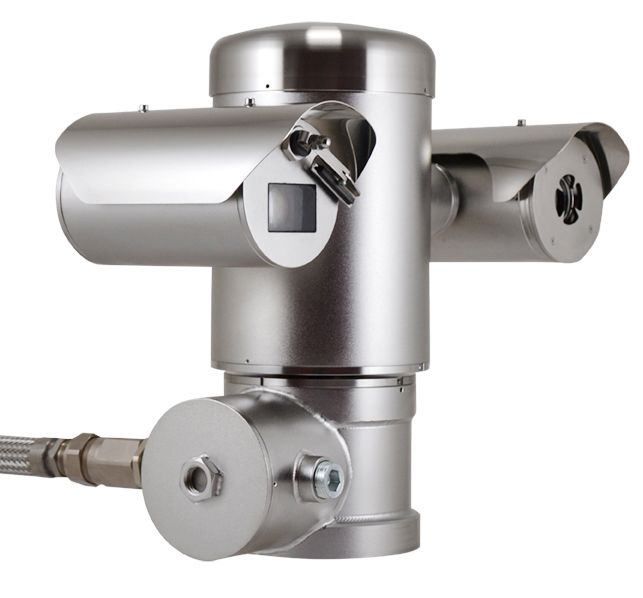

Pelco MPXT22BA000CH 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera with 30X Lens
SKU
MPXT22BA000CH
Model No
MPXT22BA000CH
$28,823.27
Product Highlights
- PTZ network camera with dual sensor, thermal and Full HD
- Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
- Certified up to a temperature of +80°C
- Junction box with integrated SFP slot to allow fiber optic connection
Speak to an expert
The Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera is engineered for extreme conditions, with a dual sensor system that includes thermal and Full HD capabilities. Its robust design, compliant with stringent explosion-proof certifications, makes it the ideal solution for surveillance in Oil & Gas, Maritime, and other hazardous environments. Built from AISI 316L stainless steel, this camera offers incredible resistance to corrosion, dust, and water, ensuring reliable performance for critical applications.
Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera Features
- Dual Vision: Combines thermal imaging with Full HD for comprehensive surveillance capabilities in varying conditions.
- Explosion-Proof Certification: Certified for use in Zones 1 and 2 (Gas) and Zones 21 and 22 (Dust), ensuring safety in hazardous environments.
- Weather Resistant: Designed to operate in harsh weather, with IP66/IP67/IP68/IP69 ratings for complete protection against the elements.
- Construction Material: Made from AISI 316L stainless steel for superior durability and resistance to corrosive substances and environments.
- Integrated SFP Slot: Enables easy fiber optic connection for flexible network deployment.
- Advanced Imaging Features: Includes Auto Gain Control, Auto White Balance, and Day/Night Vision for optimal image quality in all lighting conditions.
Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera Specifications
| Specification | Details |
|---|---|
| Image Sensor | 2 Megapixel Thermal and Full HD |
| Temperature Rating | Certified up to +80°C |
| Explosion-Proof | Certified for Zones 1, 2, 21, and 22 |
| Stainless Steel Grade | AISI 316L |
| Camera Ratings | IP66/IP67/IP68/IP69, NEMA Type 4X and 6P |
| Optical Connection | Integrated SFP slot for fiber optics |
SKU  | MPXT22BA000CH |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 24vAC |
| Automatic Gain Control (AGC) | 10.7dB up to 50dB |
| Dimensions (W x H) | 54x31x49cm (21x12x19in) - |
| Electronic Shutter | 1/1s up to 1/10000s (Auto, Manual) |
| Image Device | 1/2.8" Exmor™ R CMOS sensor |
| Operating Humidity | 5% up to 95% |
| Operating Temperature | -40°C (-40°F) up to +80°C (+176°F) |
| Power Consumption | 120W max |
| Privacy Zone | Maximum 24 masks settable, maximum 8 |
| Protocols | TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
| Weatherproof | IP66/IP67/IP68/IP69 |
| Digital Noise Reduction | (2D, 3D): Off, On (from level 1 up to level 5) |
| Angle of View | Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end), Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end) |
| Rotation Angle | Horizontal rotation: 360°, continuous rotation, Vertical rotation: from -90° up to +90° |
| Back Light Compensation | On/Off |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
