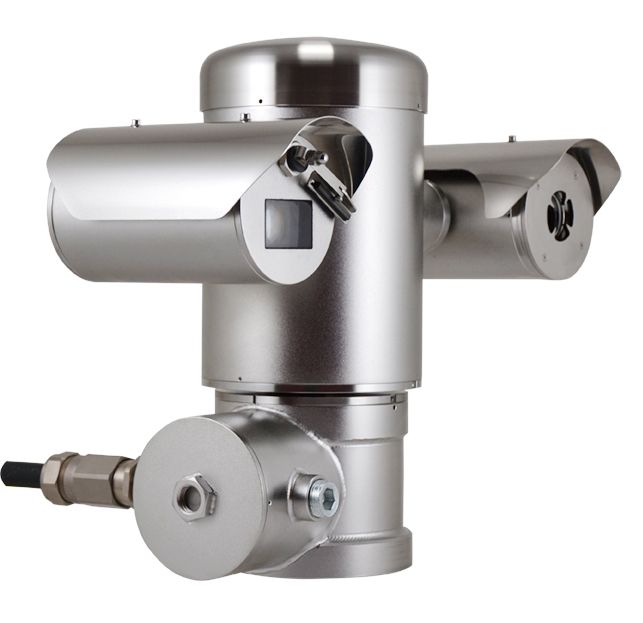

Pelco MPXT22AA000CH 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera with 30X Lens

SKU
MPXT22AA000CH
Model No
MPXT22AA000CH
$28,823.27
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • PTZ network camera with dual sensor, thermal and Full HD
  • Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
  • Certified up to a temperature of +80°C
  • Junction box with integrated SFP slot to allow fiber optic connection

The Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera is engineered for high-performance surveillance in demanding environments. This dual-sensor camera combines a full HD camera with a highly sensitive thermal sensor, ensuring optimal monitoring of critical areas in sectors such as Oil & Gas, Maritime, and Industrial. With exceptional durability and protections against harsh weather conditions, it guarantees reliability in hazardous environments.

Pelco 2 Megapixel Camera Features

  • Dual Vision: The combination of a thermal and full HD camera offers versatile surveillance capabilities, catering to both day and night operations for heightened security.
  • Explosion-proof Certification: Certified for Zones 1 and 2, enabling safe usage in environments with explosive risks, enhancing operational safety.
  • Durable Construction: Made from AISI 316L stainless steel with electro-polished surfaces, providing maximum resistance to corrosion in industrial and marine settings.
  • High IP Ratings: IP66/IP67/IP68/IP69 protection ensures complete resistance to dust and water ingress, even under extreme conditions.
  • Integrated Solutions: Designed with a junction box featuring an SFP slot for fiber optic connections, offering flexibility in network setup.
  • Wide Area Coverage: 360-degree rotation and substantial tilt range enable monitoring of expansive areas with a single camera.
  • Integrated IR Illumination: Night vision capabilities extend visibility up to 200m, improving security in low-light conditions.
  • Low Latency: Smooth pan, tilt, and zoom controls ensure efficient tracking of fast-moving objects.

Pelco 2 Megapixel Camera Specifications

Specification Details
Camera Type PTZ Network Camera with Dual Sensor (Thermal and Full HD)
Temperature Certification Certified up to +80°C
Explosion Proof Rating Certified for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
Junction Box Includes an integrated SFP slot for fiber optic connections
SKU  MPXT22AA000CH
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range
Manufacturer  Pelco
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    Non Infrared
Resolution    2 Megapixel
Lens Type    Motorized Zoom
Lens Size    30X
Mount Type  Bracket Required
Compression Method    H.264, MPEG-4, M-JPEG
Durability    Weather Resistant
Voltage  24vAC
Automatic Gain Control (AGC)    10.7dB up to 50dB
Dimensions (W x H)  54x31x49cm (21x12x19in) -
Electronic Shutter    1/1s up to 1/10000s (Auto, Manual)
Image Device    1/2.8" Exmor™ R CMOS sensor
Operating Humidity    5% up to 95%
Operating Temperature    -40°C (-40°F) up to +80°C (+176°F)
Power Consumption  120W max
Privacy Zone    Maximum 24 masks settable, maximum 8
Protocols  TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS
Weatherproof    IP66/IP67/IP68/IP69
Digital Noise Reduction    (2D, 3D): Off, On (from level 1 up to level 5)
Angle of View    Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end), Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end)
Rotation AngleHorizontal rotation: 360°, continuous rotation, Vertical rotation: from -90° up to +90°
Back Light Compensation  On/Off
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Flickerless    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
ONVIF  Yes
Digital ZoomYes
