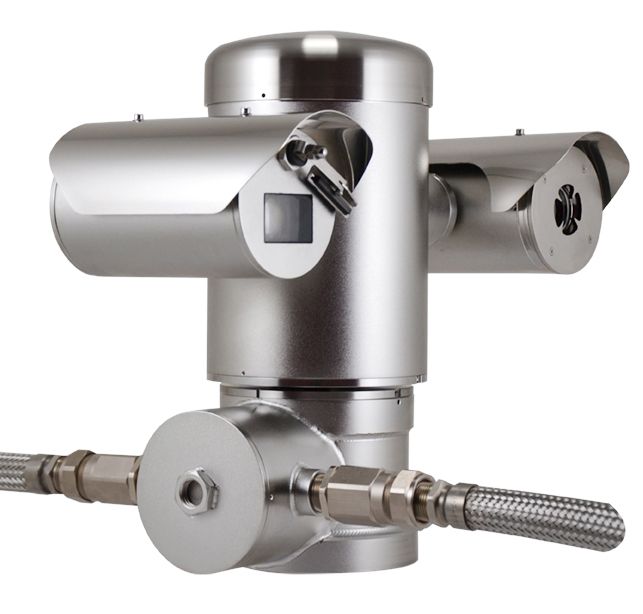

Pelco MPXT22AA000C 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera with 30X Lens
SKU
MPXT22AA000C
Model No
MPXT22AA000C
$28,726.20
Product Highlights
- PTZ network camera with dual sensor, thermal and Full HD
- Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
- Certified up to a temperature of +80°C
- Junction box with integrated SFP slot to allow fiber optic connection
Speak to an expert
Introducing the Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera, the ultimate solution for high-demand surveillance in explosive environments. With dual vision capabilities, this advanced PTZ camera combines a full HD imaging sensor with a reliable LWIR thermal camera, ensuring comprehensive monitoring day and night. Constructed with corrosion-resistant materials and IP66/IP67/IP68/IP69 certification, it offers unparalleled durability, making it ideal for the Oil & Gas, Maritime, and industrial sectors.
Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera - Key Features
- Dual Sensing: Combines thermal and Full HD capabilities for versatile surveillance, allowing detection in various conditions.
- Explosion-Proof Certification: Certified for use in hazardous areas, ensuring safety and reliability in environments with flammable gases and dust.
- Weather Resistant: With IP66/IP67/IP68/IP69 ratings, this camera is designed to perform exceptionally in harsh weather conditions.
- Durable Construction: Made with AISI 316L stainless steel, designed to withstand corrosive environments while maintaining functionality.
- Advanced Imaging Features: Includes auto gain control, digital zoom, and 3D noise reduction for enhanced image quality and clarity.
Detailed Camera Specifications - Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera
| Specification | Details |
|---|---|
| Image Sensor | 2 Megapixel (Full HD) and LWIR Thermal Sensor |
| Operating Temperature | Rated up to +80°C |
| Explosion Proof Zones | Zones 1, 2 (Gas), Zones 21, 22 (Dust) |
| Protection Class | IP66/IP67/IP68/IP69 & NEMA Type 4X, 6P |
| Material | AISI 316L Stainless Steel |
| Power Supply | PoE (Power over Ethernet) |
| Integration | Integrated SFP slot for optical fiber connections |
SKU  | MPXT22AA000C |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 24vAC |
| Automatic Gain Control (AGC) | 10.7dB up to 50dB |
| Dimensions (W x H) | 54x31x49cm (21x12x19in) - |
| Electronic Shutter | 1/1s up to 1/10000s (Auto, Manual) |
| Image Device | 1/2.8" Exmor™ R CMOS sensor |
| Operating Humidity | 5% up to 95% |
| Operating Temperature | -40°C (-40°F) up to +80°C (+176°F) |
| Power Consumption | 120W max |
| Privacy Zone | Maximum 24 masks settable, maximum 8 |
| Protocols | TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
| Weatherproof | IP66/IP67/IP68/IP69 |
| Digital Noise Reduction | (2D, 3D): Off, On (from level 1 up to level 5) |
| Angle of View | Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end), Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end) |
| Rotation Angle | Horizontal rotation: 360°, continuous rotation, Vertical rotation: from -90° up to +90° |
| Back Light Compensation | On/Off |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
