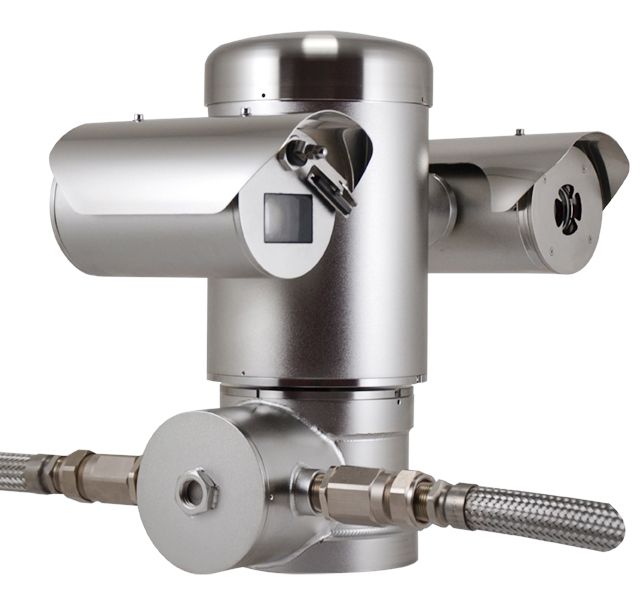

Pelco MPXT12EA000CH 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera with 30X Lens
SKU
MPXT12EA000CH
Model No
MPXT12EA000CH
$32,642.60
Product Highlights
- PTZ network camera with dual sensor, thermal and Full HD
- Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
- Certified up to a temperature of +80°C
- Junction box with integrated SFP slot to allow fiber optic connection
Speak to an expert
The Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera is a cutting-edge surveillance solution designed for the oil and gas, maritime, and industrial sectors. With its dual vision technology featuring a thermal imaging camera and a day/night camera, this robust PTZ camera provides exceptional performance in hazardous environments. It’s constructed with high-grade materials to withstand harsh weather conditions while ensuring optimal security coverage.
Pelco 2 Megapixel Network Outdoor PTZ Camera Functions
- Dual Vision Technology: Combines thermal imaging and full HD capabilities to increase surveillance effectiveness in diverse conditions.
- Explosion-Proof Certification: Certified for use in potentially explosive environments, ensuring safety in risky applications.
- Robust Design: Made from AISI 316L stainless steel, this camera is resistant to corrosion and suitable for challenging industrial and marine settings.
- IP66/IP67/IP68/IP69 Rating: Guarantees complete protection against water and dust ingress, ensuring reliable operation even under extreme weather conditions.
- Wide Range of Functions: Equipped with features like Auto Gain Control, Day/Night Vision, and Motion Detection, enhancing user interaction and surveillance efficiency.
Pelco 2 Megapixel Network Outdoor PTZ Camera Specifications
| Specifications | Details |
|---|---|
| Image Sensor | 2 Megapixel |
| Thermal Imaging | Yes |
| Day/Night functionality | Yes |
| Operating Temperature | Certified up to +80°C |
| Hazardous Location Rating | Zones 1 and 2, Group IIC (Gas); Zones 21 and 22, Group IIIC (Dust) |
| Enclosure Material | AISI 316L stainless steel |
| Ingress Protection | IP66/IP67/IP68/IP69 |
| Power Supply | Standard power requirements for network cameras |
| Weight | Varies based on configuration |
SKU  | MPXT12EA000CH |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 230vAC |
| Automatic Gain Control (AGC) | 10.7dB up to 50dB |
| Dimensions (W x H) | 54x31x49cm (21x12x19in) - |
| Electronic Shutter | 1/1s up to 1/10000s (Auto, Manual) |
| Image Device | 1/2.8" Exmor™ R CMOS sensor |
| Operating Humidity | 5% up to 95% |
| Operating Temperature | -40°C (-40°F) up to +80°C (+176°F) |
| Power Consumption | 120W max |
| Privacy Zone | Maximum 24 masks settable, maximum 8 |
| Protocols | TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
| Weatherproof | IP66/IP67/IP68/IP69 |
| Digital Noise Reduction | (2D, 3D): Off, On (from level 1 up to level 5) |
| Angle of View | Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end), Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end) |
| Rotation Angle | Horizontal rotation: 360°, continuous rotation, Vertical rotation: from -90° up to +90° |
| Back Light Compensation | On/Off |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
