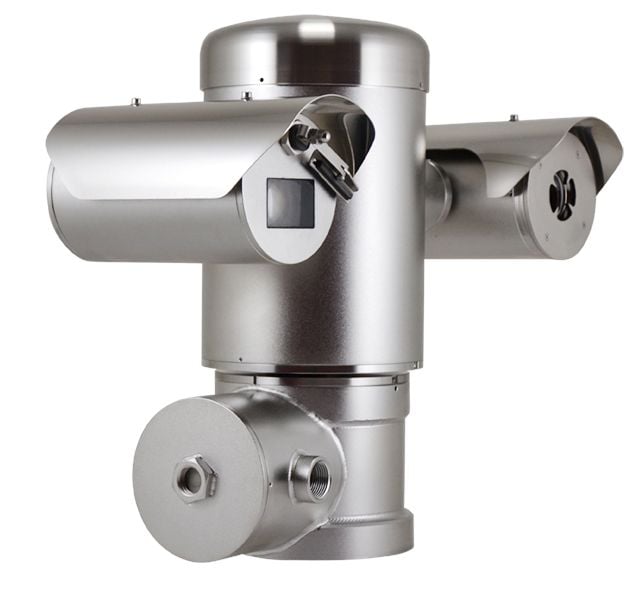

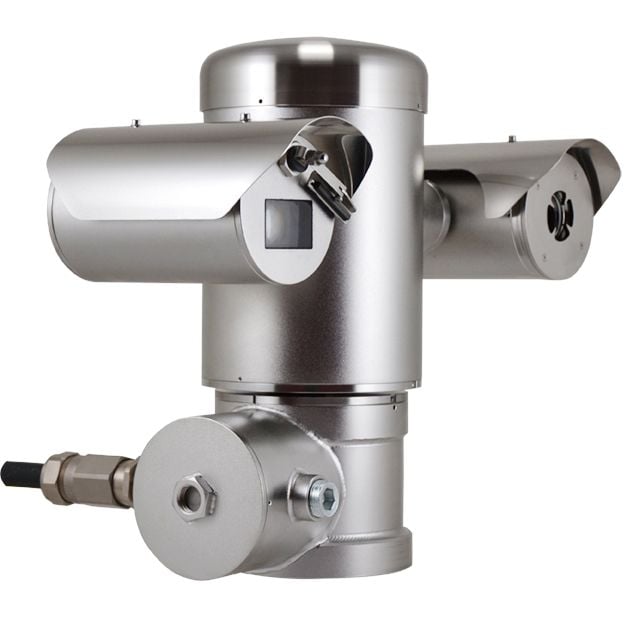

Pelco MPXT12BA000C 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera with 30X Lens
SKU
MPXT12BA000C
Model No
MPXT12BA000C
$24,740.99
Product Highlights
- PTZ network camera with dual sensor, thermal and Full HD
- Certified explosion-proof for use in Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust)
- Certified up to a temperature of +80°C
- Junction box with integrated SFP slot to allow fiber optic connection
Speak to an expert
The Pelco 2 Megapixel Network Outdoor PTZ Thermal Imaging Camera ensures unparalleled surveillance quality with its advanced dual vision technology. Designed for harsh environments, this camera seamlessly integrates thermal and Full HD imaging, providing exceptional performance for critical applications in the Oil & Gas, Maritime, and Industrial sectors. Robustly constructed to withstand corrosive conditions, it guarantees reliable performance and protection against the elements, making it the ideal choice for safety where volatile materials are present.
Pelco 2 Megapixel Camera Functions
- Dual Vision Technology: Combines thermal and Full HD capabilities to enhance monitoring capabilities in diverse conditions.
- Explosion-Proof Certification: Safe to use in hazardous environments (Zones 1 and 2, Group IIC) to mitigate risks associated with flammable gases and dust.
- IP66/IP67/IP68/IP69 Ratings: Provides superior protection against dust and water ingress, ensuring functionality in harsh weather.
- Corrosion-Resistant Construction: Built with AISI 316L stainless steel to withstand saltwater and other corrosive exposures, extending the camera's lifespan.
- Integrated IR Illumination: Enables visibility up to 200 meters in complete darkness, ensuring 24/7 surveillance capability.
- Wide Area Coverage: Offers a 360-degree view for comprehensive monitoring, minimizing blind spots.
Pelco 2 Megapixel Detailed Specifications
| Specifications | Details |
|---|---|
| Camera Type | PTZ network camera with dual sensor, thermal and Full HD |
| Temperature Certification | Certified up to +80°C |
| Explosion-Proof Certification | Zones 1 and 2, Group IIC (Gas), Zones 21 and 22, Group IIIC (Dust) |
| Junction Box | Integrated SFP slot for fiber optic connection |
SKU  | MPXT12BA000C |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Flickerless, Motion Detection Tracking, On Screen Display Menu, ONVIF, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Pelco |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Bracket Required |
| Compression Method | H.264, MPEG-4, M-JPEG |
| Durability | Weather Resistant |
| Voltage | 230vAC |
| Automatic Gain Control (AGC) | 10.7dB up to 50dB |
| Dimensions (W x H) | 54x31x49cm (21x12x19in) - |
| Electronic Shutter | 1/1s up to 1/10000s (Auto, Manual) |
| Image Device | 1/2.8" Exmor™ R CMOS sensor |
| Operating Humidity | 5% up to 95% |
| Operating Temperature | -40°C (-40°F) up to +80°C (+176°F) |
| Power Consumption | 120W max |
| Privacy Zone | Maximum 24 masks settable, maximum 8 |
| Protocols | TCP/IPv4-IPv6, UDP/IPv4-IPv6, HTTP, HTTPS, NTP, DHCP, WSDISCOVERY, DSCP, IGMP (Multicast), SOAP, DNS |
| Weatherproof | IP66/IP67/IP68/IP69 |
| Digital Noise Reduction | (2D, 3D): Off, On (from level 1 up to level 5) |
| Angle of View | Horizontal Viewing Angle: from 63.7° (wide end) up to 2.3° (tele end), Vertical Viewing Angle: from 38.5° (wide end) up to 1.3° (tele end) |
| Rotation Angle | Horizontal rotation: 360°, continuous rotation, Vertical rotation: from -90° up to +90° |
| Back Light Compensation | On/Off |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Flickerless | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
