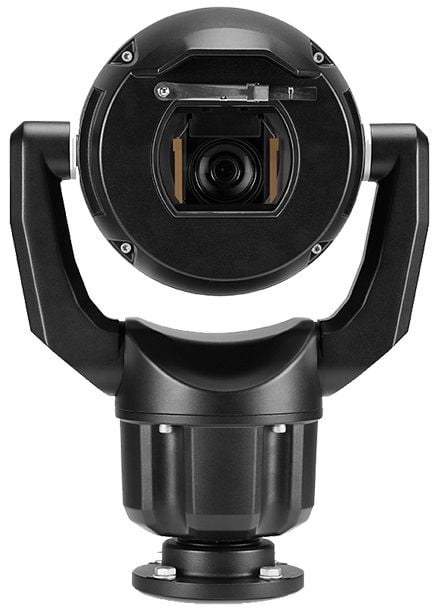

IQsight by Bosch MIC-7522-Z30BR 2 Megapixel Outdoor IP PTZ Camera, 30x Lens, Black
SKU
MIC-7522-Z30BR
Model No
MIC-7522-Z30BR
$10,568.70
Product Highlights
- Starlight camera technology with excellent low-light sensitivity
- Exceptional strength and ruggedness for any outdoor application
- Built-in Camera Trainer to train the camera to recognize user-specified target objects
- Edge intelligence with Intelligent Tracking and object detection even when the camera is moving
- Optional illuminator with multispectral LEDs that distribute IR light uniformly in the field
Speak to an expert
The MIC-7522-Z30BR from Bosch is a cutting-edge 2 megapixel outdoor IP PTZ camera featuring a powerful 30x lens and a sleek black design. This advanced surveillance solution leverages starlight imaging technology for exceptional low-light performance and robust, high-quality imaging in any environment. Engineered to withstand harsh conditions, this camera is tailored for mission-critical applications, ensuring reliable security and surveillance across a variety of demanding settings.
Bosch MIC-7522-Z30BR Camera Features
- Starlight Technology: Ensures excellent low-light sensitivity (color = 0.0047 lx) and High Dynamic Range (120 dB) for vivid detail in varying lighting conditions.
- Rugged Design: Built to endure outdoor applications, including traffic monitoring and perimeter protection, making it ideal for tough environments.
- Built-in Camera Trainer: Facilitates training the camera to recognize specific target objects, enhancing detection of unusual activities.
- Edge Intelligence: Offers Intelligent Tracking and object detection even while the camera is in motion for more effective monitoring.
- Optional Illuminator: Includes multispectral LEDs for uniform IR light distribution (up to 550 m / 1804.50 ft) to eliminate dark spots and over-illumination.
Detailed Specifications for Bosch MIC-7522-Z30BR
| Camera Type | Outdoor PTZ |
| Megapixels | 2 MP |
| Lens Type | 30x Optical Zoom |
| Low-Light Sensitivity | Color = 0.0047 lx |
| Dynamic Range | 120 dB |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F) |
| Included Accessories | Optional illuminator available |
| Weight | 4 kg (8.82 lbs) |
SKU  | MIC-7522-Z30BR |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, On Screen Display Menu, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Bosch |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | Non Infrared |
| Resolution | 2 Megapixel |
| Lens Type | Motorized Zoom |
| Lens Size | 30X |
| Mount Type | Ceiling, Bracket Required |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vAC, PoE |
| Automatic Gain Control (AGC) | AGC, Fixed |
| Dimensions (W x H) | Inverted: 287.93 mm x 400.34 mm x 210.65 mm (11.34 in. x 15.76 in. x 8.29 in.), Canted: 260.25 mm (10.2 in.) x 374.5 mm (14.7 in.) |
| Electronic Shutter | 1/1 sec to 1/10000 sec (22 steps) |
| Image Device | 1/2 in. CMOS sensor |
| Image Pixels-Effective | 1937 x 1097 (2.12 MP) |
| Operating Humidity | 0-100% |
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| OSD Menu | English, Czech, Dutch, French, German, Italian, Polish, Portuguese, Russian, Spanish, Japanese, Chinese |
| Power Consumption | Without illuminator: 40 W, With illuminator: 70 W |
| Privacy Zone | 32 individually configurable Privacy Masks |
| Protocols | IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/ RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP, DHCP, APIPA (Auto-IP, link local address), NTP (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS, DNSv6, DDNS (DynDNS.org, selfHOST.de, no-ip.com), SMTP, iSCSI, UPnP (SSDP), |
| S/N Ratio | >55 dB |
| Weatherproof | IP68 |
| Angle of View | FOV: 2.1° to 58.3° |
| Back Light Compensation | On / Off / Intelligent Auto Exposure (IAE) |
| Automatic White Balance | 2000 K to 10,000 K ATW, AWB Hold, Extended ATW, Manual, Sodium Lamp Auto, Sodium Lamp |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
