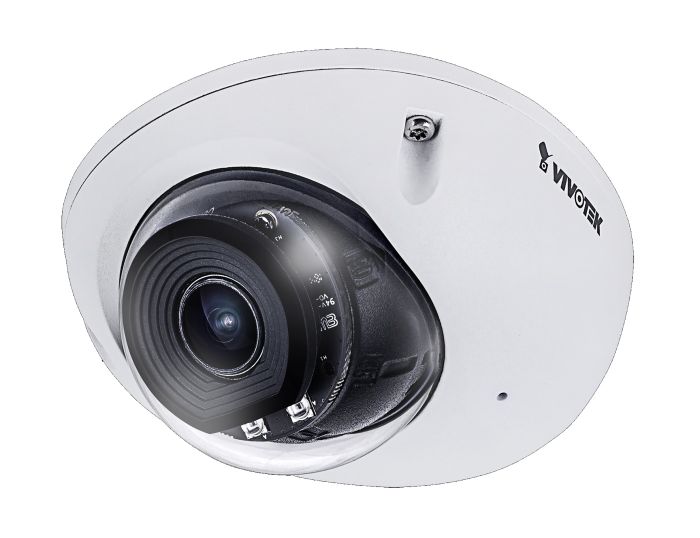

Vivotek MD9560-DHF2 2 Megapixel Network IR Outdoor Mobile Dome Camera, 2.8mm Lens

SKU
MD9560-DHF2
Model No
MD9560-DHF2
$708.51
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • H.265 Compression Technology
  • 30 fps @ 1920x1080
  • W DR Pro for Unparalleled Visibility in High Contrast Environments
  • Weather-proof IP66 and IP67, Vandal-proof IK10 Housing
  • Built-in IR Illuminators, effective up to 20 Meters

The Vivotek MD9560-DHF2 is a state-of-the-art 2 megapixel network IR outdoor mobile dome camera equipped with a 2.8mm lens, designed for superior surveillance performance. With its advanced features like H.265 compression technology and weatherproof housing, this camera ensures high-quality video capture in a variety of environments, making it perfect for both professional and personal security needs.

Vivotek MD9560-DHF2 Camera Features

  • H.265 Compression Technology: Reduces bandwidth usage without compromising image quality, ensuring efficient storage.
  • 30 fps @ 1920x1080: Provides smooth and clear high-definition video, critical for accurate monitoring and identification.
  • W DR Pro: Ensures unparalleled visibility in high contrast situations, enabling clear images regardless of lighting conditions.
  • Fast AE: Quickly adapts to abrupt changes in light, maintaining consistent image quality day or night.
  • Smart Stream III: Optimizes bandwidth efficiency by allowing users to customize video streams based on what is essential for surveillance.
  • Weather-proof IP66 and IP67, Vandal-proof IK10 Housing: Protects the camera from outdoor elements and vandalism, ensuring durability.
  • Built-in IR Illuminators: Effective up to 20 meters, guaranteeing nighttime visibility for enhanced security.
  • DC Power Supported: Flexibility in power options, making installation convenient in various settings.
  • Built-in MicroSD/SDHC/SDXC Card Slot: Allows for on-board storage of video footage, ensuring reliable data retention.
  • EN50155 2017 OT1 Compliance: Meets professional standards for mobile surveillance applications, reinforcing its reliability.
  • Video Rotation for Corridor Scenario: Ideal for narrow surveillance areas, maximizing coverage without wasting bandwidth.

Vivotek MD9560-DHF2 Detailed Specifications

ModelMD9560-DHF2
Image Sensor2 Megapixel
Lens2.8mm
Video Resolution1920x1080
Frame Rate30 fps
Compression TechnologyH.265
Weather Proof RatingIP66, IP67
Vandal Proof RatingIK10
IR RangeUp to 20 Meters
Power SupplyDC Power Supported
StorageMicroSD/SDHC/SDXC Card Slot
Mobile Surveillance ComplianceEN50155 2017 OT1
Video FeaturesVideo Rotation for Corridor Scenario
SKU  MD9560-DHF2
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Vivotek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    0~60 Feet
Resolution    2 Megapixel
Lens Type    Fixed
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  PoE
Dimensions (W x H)  98 x 54 x 110.8 mm
Electronic Shutter    1/5 sec. to 1/32,000 sec.
Image Device    1/2.9" Progressive CMOS
IR LEDs  2
Minimum Scene Illumination  0.13 Lux @ F1.8 (Color), 0.01 Lux @ F1.8 (B/W), 0 Lux with IR illumination on
Operating Humidity    0.98
Operating Temperature    Starting Temperature: -25°C ~ 55°C (-13°F~ 131°F); Working Temperature: -25°C ~ 60°C (-13°F~ 140°F) (IR off), -25°C ~ 55°C (-13°F~ 131°F) (IR on); Maximum (intermittent): 70 °C (158 °F)
Power Consumption  Max. 5.5 W (IR on), Max. 3.3 W (IR off)
Protocols  802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
S/N Ratio  60 dB
Scanning System    Progressive
Weatherproof    IP66, IP67
Digital Noise Reduction    3DNR
Angle of View    108° (Horizontal), 60° (Vertical), 124° (Diagonal)
Rotation Angle±180°
Motion Detection Tracking    Five-window video motion detection
IR Distance  20m/65.6168ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
