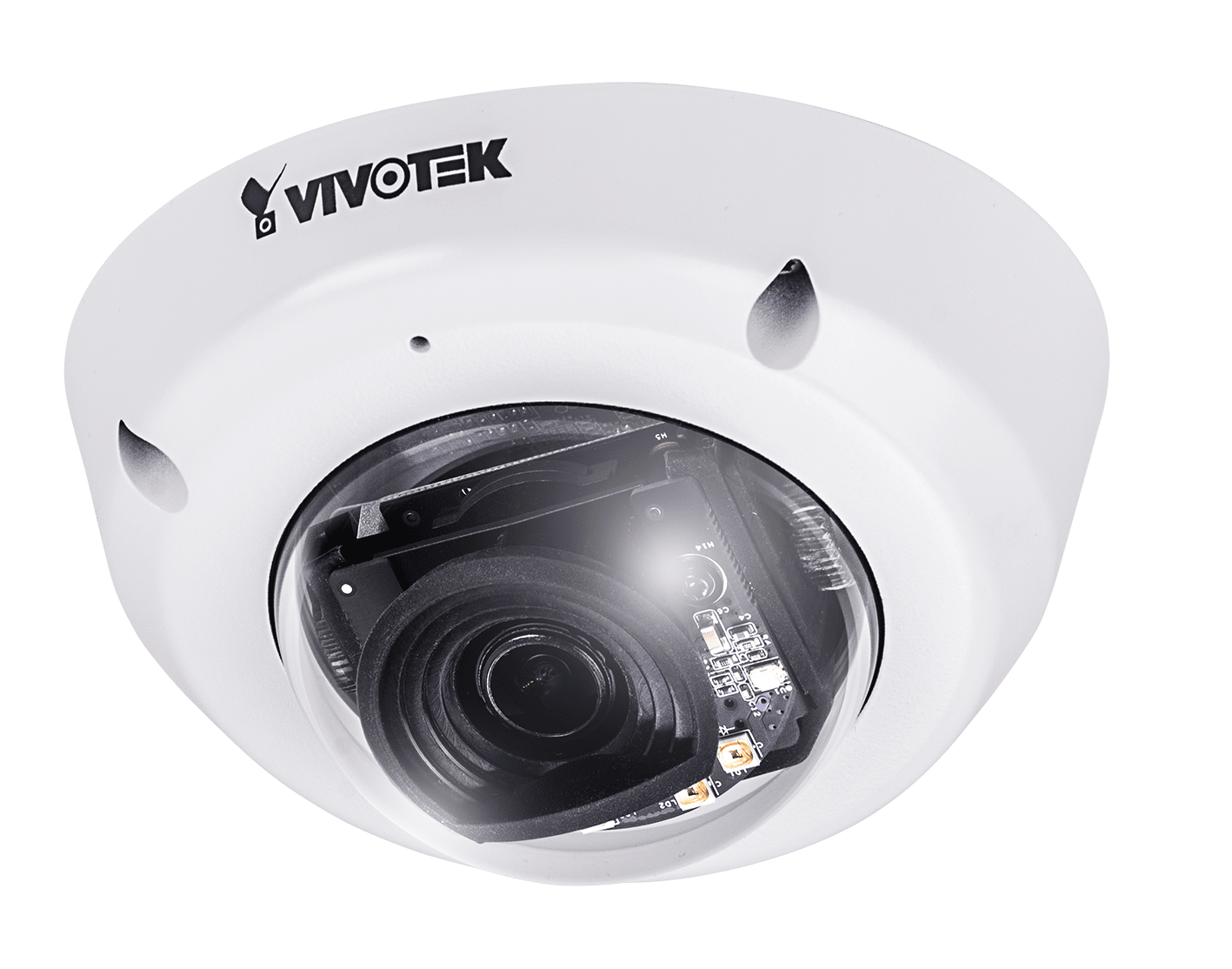

Vivotek MD8565-NF3 2 Megapixel Mobile Dome Network Camera, 3.6mm Lens

Model No
MD8565-NF3
$420.00
Qty:
Product Highlights
    • 30 fps @ 1920x1080
    • Built-in 940nm Invisible IR Illuminators up to 10 M
    • EN50155 T1 Compliance for Professional Mobile Surveillance
    • Smart Stream II to Optimize Bandwidth Efficiency
    • Smart IR Technology to Avoid Overexposure

The MD8565-NF3 from Vivotek is a 2 megapixel mobile dome network camera, 3.6mm lens. VIVOTEK’s MD8565-NF3 is a compact 2-megapixel IR mobile dome network camera geared toward a wide range of transport applications such as buses, trains, and other vehicles. With full EN50155 T1 compliance, IP66-, IK10- and NEMA 4X-rated rugged design, the camera can withstand shocks, vibration, humidity, dust, and even temperature fluctuations to maintain stable and reliable video during vehicle movement. Armed with built-in 940nm invisible IR illumination, the MD8565-NF3 is able to provide superior image quality for up to 10 meters in total darkness, while remaining unobtrusive to the driver. This combination of high-resolution imaging and protective-housing endows the MD8565-NF3 with the rugged reliability required to maximize driver and passenger safety and optimize mobile surveillance.

Features

  • 30 fps @ 1920x1080
  • Built-in 940nm Invisible IR Illuminators up to 10 M
  • EN50155 T1 Compliance for Professional Mobile Surveillance
  • Smart Stream II to Optimize Bandwidth Efficiency
  • Smart IR Technology to Avoid Overexposure
  • Weather-proof IP66-, Vandal-proof IK10- and NEMA 4X-rated Housing
  • Fast AE for Quick Adaptation to Light Changes
  • M12 Connector for PoE/Network
SKU  MD8565-NF3
Features  Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Vivotek
NDAACompliant
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    0~60 Feet
Resolution    2 Megapixel
Lens Type    Fixed
Lens Size    3.6mm
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG
Durability    Vandal Resistant, Weather Resistant
Voltage  PoE
Dimensions (W x H)  Ø 110 x 57 mm
Electronic Shutter    1/5 sec. to 1/32,000 sec.
Image Device    1/2.9" Progressive CMOS
IR LEDs  4 LEDs
IR Wavelength  940nm
Minimum Scene Illumination  0.18 Lux @ F2.1 (Color) < 0.01 Lux @ F2.1 (B/W) 0 Lux with IR illumination on
Operating Humidity    90%
Operating Temperature    -25°C ~ 55°C (-13°F ~ 131°F)
Power Consumption  Max. 5.5W
Protocols  IIPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS, NTCIP, CIFS/SMB
S/N Ratio  56 dB
Weatherproof    IP66
Digital Noise Reduction    3D DNR
Angle of View    77° (Horizontal) 41° (Vertical) 82° (Diagonal)
Motion Detection Tracking    Five-window video motion detection
IR Distance  10m/32.80ft
AudioYes
Auto Gain Control    Yes
Day/Night    Yes
Digital Noise Reduction    Yes
Automatic White Balance    Yes
Back Light Compensation    Yes
Motion Detection Tracking    Yes
Privacy Masking    Yes
Wide Dynamic Range    Yes
Mirror    Yes
ONVIF  Yes
Digital ZoomYes
