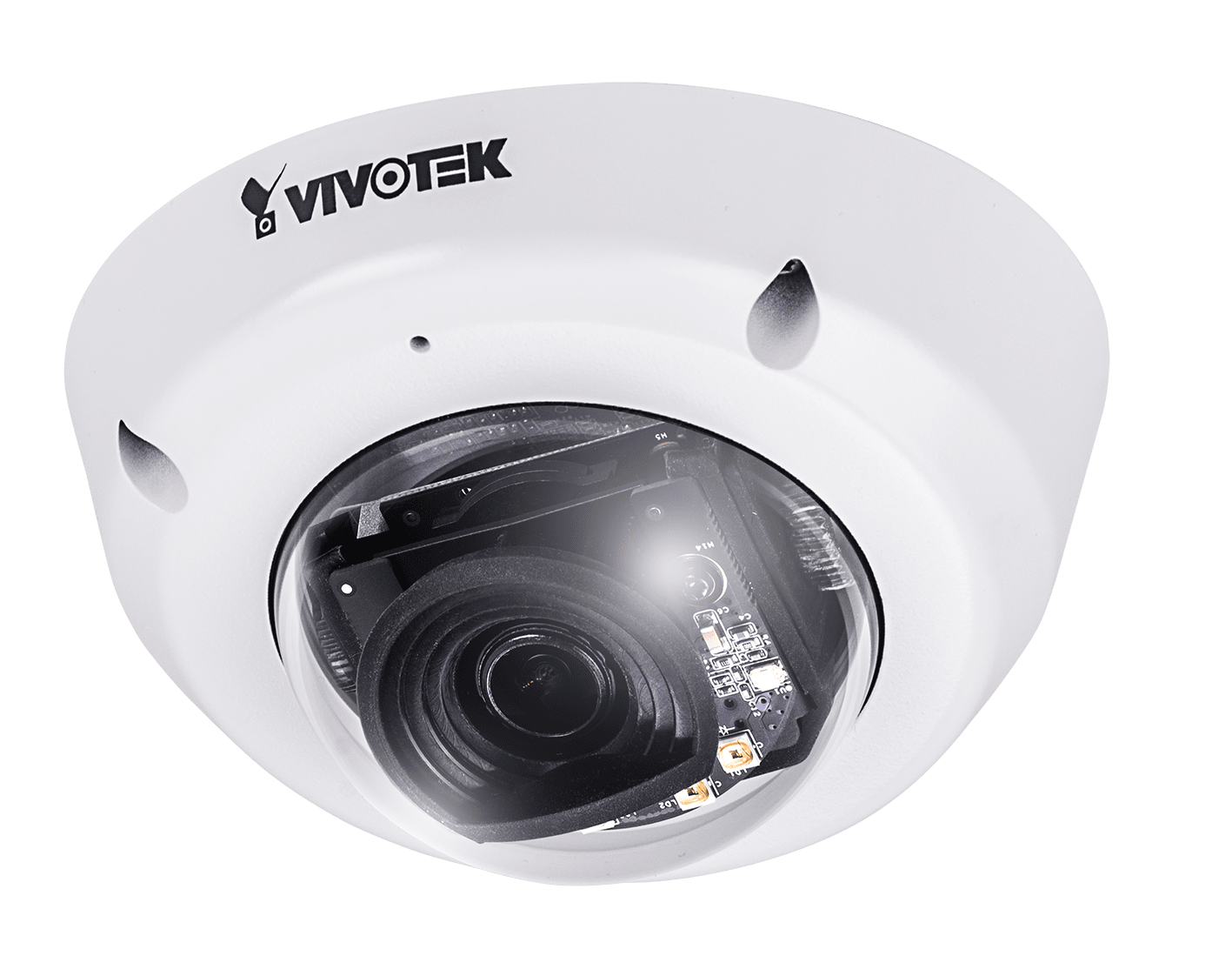

The MD8565-NF2 from Vivotek is a 2 megapixel mobile dome network camera, 2.8mm lens. VIVOTEK’s MD8565-NF2 is a compact 2-megapixel IR mobile dome network camera geared toward a wide range of transport applications such as buses, trains, and other vehicles. With full EN50155 T1 compliance, IP66-, IK10- and NEMA 4X-rated rugged design, the camera can withstand shocks, vibration, humidity, dust, and even temperature fluctuations to maintain stable and reliable video during vehicle movement. Armed with built-in 940nm invisible IR illumination, the MD8565-NF2 is able to provide superior image quality for up to 10 meters in total darkness, while remaining unobtrusive to the driver. This combination of high-resolution imaging and protective-housing endows the MD8565-NF2 with the rugged reliability required to maximize driver and passenger safety and optimize mobile surveillance.
Vivotek MD8565-NF2 Camera Features
30 fps @ 1920x1080: Provides smooth video playback and ensures clear image quality for surveillance.
Built-in 940nm Invisible IR Illuminators up to 10 M: Allows for effective monitoring in total darkness without disturbing vehicle occupants.
EN50155 T1 Compliance for Professional Mobile Surveillance: Ensures reliable performance in transportation environments subjected to shocks and vibrations.
Smart Stream II to Optimize Bandwidth Efficiency: Minimizes data usage while maintaining image quality, making it ideal for network transmission.
Smart IR Technology to Avoid Overexposure: Automatically adjusts IR illumination to enhance image clarity in varying light conditions.
Weather-proof IP66-, Vandal-proof IK10- and NEMA 4X-rated Housing: Protects the camera against environmental damage and vandalism for long-lasting use.
Fast AE for Quick Adaptation to Light Changes: Enhances visibility by rapidly adapting to varying lighting situations.
M12 Connector for PoE/Network: Simplifies installation with power over Ethernet capability, reducing cable clutter.
Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer
Vivotek
NDAA
Compliant
Camera Signal
Network IP
Connection Type
Wired
Infrared Distance
0~60 Feet
Resolution
2 Megapixel
Lens Type
Fixed
Lens Size
2.8mm
Mount Type
Ceiling, Wall
Compression Method
H.264, M-JPEG
Durability
Vandal Resistant, Weather Resistant
Voltage
PoE
Dimensions (W x H)
Ø 110 x 57 mm
Electronic Shutter
1/5 sec. to 1/32,000 sec.
Image Device
1/2.9" Progressive CMOS
IR LEDs
4 LEDs
IR Wavelength
940nm
Minimum Scene Illumination
0.16 Lux @ F1.8 (Color) < 0.01 Lux @ F1.8 (B/W) 0 Lux with IR illumination on
