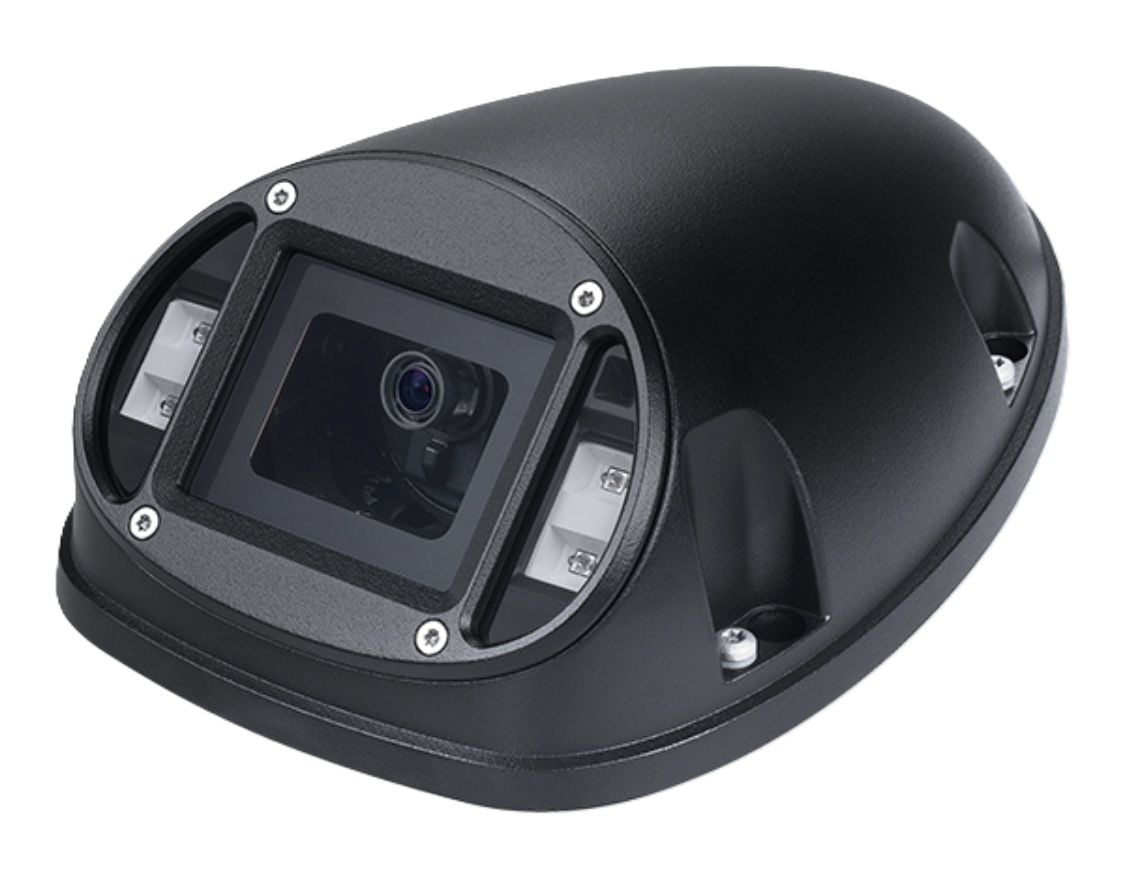

Vivotek MD8564-EH-V2-3-6MM 5 Megapixel Network IP Mobile Dome Camera with 3.6mm Lens
SKU
MD8564-EH-V2-3-6MM
Model No
MD8564-EH-V2-3-6MM
$1,774.61
Product Highlights
- 5 Megapixel high-definition video quality
- 3.6mm lens for wide-angle viewing
- Mobile dome design for versatile installation
- Network IP connectivity for remote access
- Durable construction for outdoor use
Speak to an expert
The MD8564-EH-V2-3-6MM from Vivotek is a 5 megapixel outdoor vehicle dome network camera with a 3.6mm lens. It offers 2560x1920 resolution, up to 50m IR LED, and has an IK10/IP68/6K9K rating. This camera is expertly designed for vehicles, featuring a pan lens for pantograph and side platform coverage, as well as a smart heater for front glass automatic de-icing.
Vivotek MD8564-EH-V2-3-6MM Camera Features
- Optimized Image Quality: The advanced 5MP resolution ensures outstanding clarity while the 2MP bitrate keeps network usage efficient, balancing image quality and bandwidth.
- Robust Tamper-Proof Security: With built-in secure boot technology and signed firmware, your surveillance system is fortified against unauthorized access and cyber threats.
- Mobile Transportation Focus: Designed specifically for rolling stock environments, this camera withstands vibration and optimizes connectivity for reliable monitoring in transit.
- Automatic De-icing Capability: The smart heater ensures clear visibility by automatically de-icing the front glass, enhancing performance in cold conditions.
- Cybersecurity Protection: Backed by Trend Micro IoT security, it offers critical protection against potential cyber threats.
Vivotek MD8564-EH-V2-3-6MM Detailed Specifications
| Product SKU | MD8564-EH-V2-3-6MM |
| Resolution | 5 Megapixels (2560x1920) |
| Lens Type | 3.6mm |
| IR Range | Up to 50 meters |
| IP Rating | IK10/IP68/6K9K |
| Special Features | Pan lens, Smart heater, Trend Micro IoT Security |
SKU  | MD8564-EH-V2-3-6MM |
|---|---|
| Features | Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Heater & Fan, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vivotek |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.6mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 24vDC, PoE |
| Dimensions (W x H) | 241 x 162 x 83 mm |
| Electronic Shutter | 1/5 sec. to 1/32,000 sec |
| Image Device | 1/2.7" Progressive CMOS |
| Minimum Scene Illumination | 0.1 Lux @ F2.0 (Color) 0.01 Lux @ F2.0 (B/W) 0 Lux with IR illumination on |
| Operating Humidity | 98% RH (non-condensing) |
| Operating Temperature | -40°C ~ 70°C (14°F ~ 158°F) (IR off) , -40°C ~ 65°C (14°F ~ 149°F) (IR on) |
| Power Consumption | Camera + IR: Max. 12.54W/ 7.24W (IR ON/OFF) , Heater: 48W(24V, 2A) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| S/N Ratio | 60dB |
| Weatherproof | IP68 , IK10 |
| Angle of View | 83° (Horizontal) , 61° (Vertical) , 111° (Diagonal) |
| Rotation Angle | ±170°(Tool-free) |
| Motion Detection Tracking | Five-window video motion detection, people detection, time filter |
| IR Distance | 50m/164ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Heater & Fan | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
