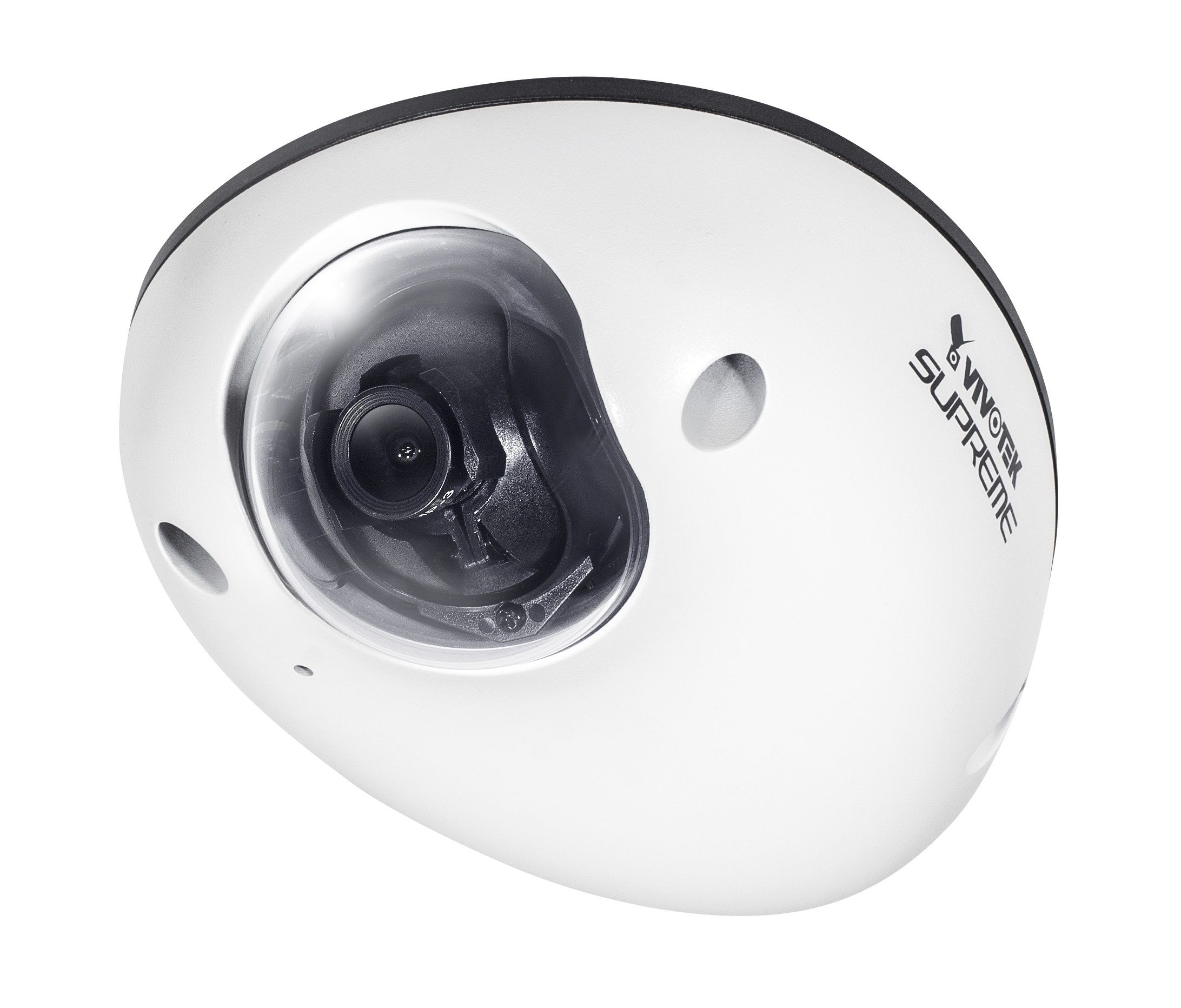

Vivotek MD8563-DEHF2 2 Megapixel Network Outdoor Dome Camera, 2.8mm Lens

The MD8563-DEHF2 from Vivotek is a compact 2-megapixel network camera geared toward transportation applications such as buses, trains, and other vehicles. With full EN50155 TX compliance & IP67-rated rugged design, the camera can withstand shocks, vibration, humidity, dust, and temperature fluctuations to maintain stable and reliable video during vehicle movement. Furthermore, the vandal-proof IK10-rated metal housing provides effective and robust protection from vandalism. This combination of high-resolution imaging and protective-housing endows the MD8563-DEHF2 with the rugged reliability required to maximize passenger safety and optimize mobile surveillance.

Featuring the Wide Dynamic Range Technology, WDR Pro, the MD8563-DEHF2 provides improved visibility in high contrast lighting environments. In addition, 3D Noise Reduction Technology enables the camera to capture clear, polished video under low-light conditions and reduce bandwidth from sensor noise. Taken together, these features allow users to enjoy an increased level of image detail in bright as well as low-light environments.

Employing Vivotek’s Smart Stream II technology, the MD8563-DEHF2 can reduce both bandwidth and storage consumption by up to 50% while maintaining high standards of image quality. In order to facilitate local storage and data redundancy, the camera is also equipped with a MicroSD/SDHC/SDXC card slot for local recording. And to further add to the flexibility of this compact camera, in corridor scenarios, its video rotation feature can provide wider vertical coverage for more depth and a larger useful field of view.

Vivotek MD8563-DEHF2 Camera Features

• 30 fps: enables smooth video recording at 1920x1080 resolution, ensuring clarity and detail.
• WDR Pro: enhances visibility in high contrast environments, vital for capturing details in challenging lighting.
• Fast AE: allows quick adaptation to light changes, improving image quality during dynamic conditions.
• Smart Stream II: optimizes bandwidth efficiency, allowing for high-quality video with reduced storage consumption.
• Weather-proof IP67: ensures protection against water and dust, making it reliable for outdoor use.
• Vandal-proof IK10 Housing: offers strong resistance to physical impacts, safeguarding the camera in vandal-prone areas.
• DC Power Supported: provides flexibility in power supply options to accommodate various installations.
• Built-in MicroSD/SDHC/SDXC Card Slot: allows for local storage solutions, enhancing data redundancy and retrieval.
• EN50155 TX Compliance: ensures suitability for professional mobile surveillance applications.
• -40°C ~ 70°C Wide Temperature Range: guarantees performance in extreme weather conditions, vital for outdoor applications.
• Video Rotation: ideal for corridor scenarios, maximizing vertical coverage and field of view.

Vivotek MD8563-DEHF2 Detailed Camera Specifications
