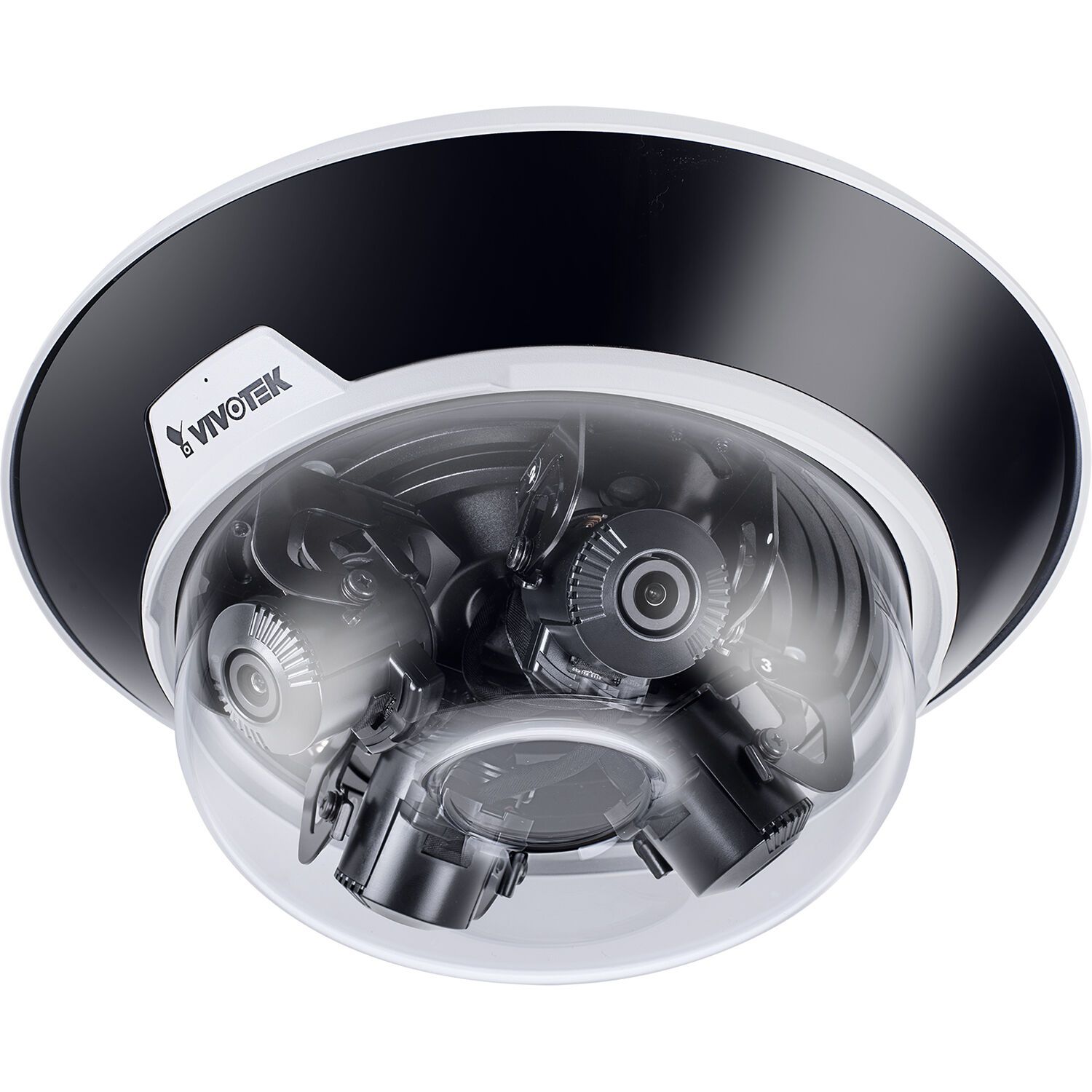

Vivotek MA9322-EHTVL 5 Megapixel Network Outdoor Dome Camera with 3.7 -7.7mm Lens
SKU
MA9322-EHTVL

Vivotek Model MA9322-EHTVL

Vivotek MA9322-EHTVL 5 Megapixel Network Outdoor Dome Camera with 3.7 -7.7mm Lens

  • 5MP
  • 3.7–7.7mm
  • Outdoor
Free shipping
Model No
MA9322-EHTVL
$1,906.87
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • H.265 Compression Technology
  • 4x 5MP Independent Sensors, Adjustable Views
  • 12 fps @ 2688×1920 per Sensor / 30 fps @ 2560×1440 per Sensor
  • WDR Pro (120 dB) for Optimal Image Quality in High Contrast Environments
  • SNV (Supreme Night Visibility) for Low Light Conditions

Overview

Featuring four independent 5MP CMOS Sensors with IR illuminators, the Vivotek MA9322-EHTVL network camera can provide the most flexibility in surveillance monitoring. Each sensor utilizes a 3.7 to 7.7 mm motorized focus lens and 3-axis design along a circular track to enable full 360° coverage. The MA9322-EHTVL is equipped with a removable IR-cut filter and WDR Pro technology, enabling the camera to maintain optimal image quality and unparalleled visibility in high contrast lighting environments.

Vivotek MA9322-EHTVL Camera Features

  • H.265 Compression Technology: Allows for reduced bandwidth and storage requirements while maintaining high-quality video streams.
  • 4x 5MP Independent Sensors, Adjustable Views: Provides versatile monitoring capabilities from different angles, ensuring comprehensive coverage.
  • 12 fps @ 2688×1920 per Sensor / 30 fps @ 2560×1440 per Sensor: Ensures smooth video playback and real-time monitoring even in demanding environments.
  • WDR Pro (120 dB) for Optimal Image Quality in High Contrast Environments: Enhances image clarity in difficult lighting situations, making it easier to differentiate details.
  • SNV (Supreme Night Visibility) for Low Light Conditions: Guarantees clear video capture even at night or in dark areas, increasing security effectiveness.
  • Built-in IR Illuminators, Effective up to 30 Meters Radius: Expands the night vision range, ensuring reliable monitoring in low-light environments.
  • Weather-proof IP66-rated, Vandal-proof IK10-rated, NEMA 4X Housing: Ensures the camera's durability against harsh weather conditions and vandalism for long-lasting performance.
  • Built-in Microphone: Provides audio capability to complement visual surveillance for more informative monitoring.

Vivotek MA9322-EHTVL Detailed Specifications

FeatureDetails
ModelMA9322-EHTVL
Image Sensor4x 5MP CMOS
Lens3.7-7.7mm Motorized
IR RangeEffective up to 30 Meters
Video CompressionH.265
Frame Rate12 fps @ 2688×1920 / 30 fps @ 2560×1440
WDR Pro120 dB
Ingress ProtectionIP66, IK10, NEMA 4X
AudioBuilt-in Microphone

Built-in Functions

  • Audio
  • Auto Gain Control
  • Day/Night
  • Digital Noise Reduction
  • Automatic White Balance
  • Back Light Compensation
  • Motion Detection Tracking
  • Privacy Masking
  • Wide Dynamic Range
  • Mirror
  • ONVIF

Specifications

SKU  MA9322-EHTVL
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Vivotek
Camera Signal     Network IP
Connection Type  Wired
Infrared Distance    61~100 Feet
Resolution    5 Megapixel
Lens Type    Varifocal
Mount Type  Ceiling, Wall
Compression Method    H.264, M-JPEG, H.265
Durability    Vandal Resistant, Weather Resistant
Voltage  PoE
Dimensions (W x H)  Ø 267×114 mm (main body), Ø 275×118 mm (w/ bracket)
Electronic Shutter    1/5 sec. to 1/32,000 sec.
Image Device    1/2.7″ Progressive CMOS
Minimum Scene Illumination  0.035 lux @ F1.9 (Color), 0.005 lux @ F1.9 (B/W), `0 lux with IR Illuminators on
Operating Humidity    90%
Operating Temperature    -30°C ~ 50°C (-22°F ~ 122°F)
Power Consumption  AC: Max. 25 W, PoE: Max. 25 W
Protocols  802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
S/N Ratio  60.4 dB
Weatherproof    IP66
Digital Noise Reduction    3DNR
Angle of View    88.6° ~ 40.1° (Horizontal), 61.2° ~ 28.6° (Vertical), 115.5° ~ 49.5° (Diagonal)
IR Distance  20m/65ft
