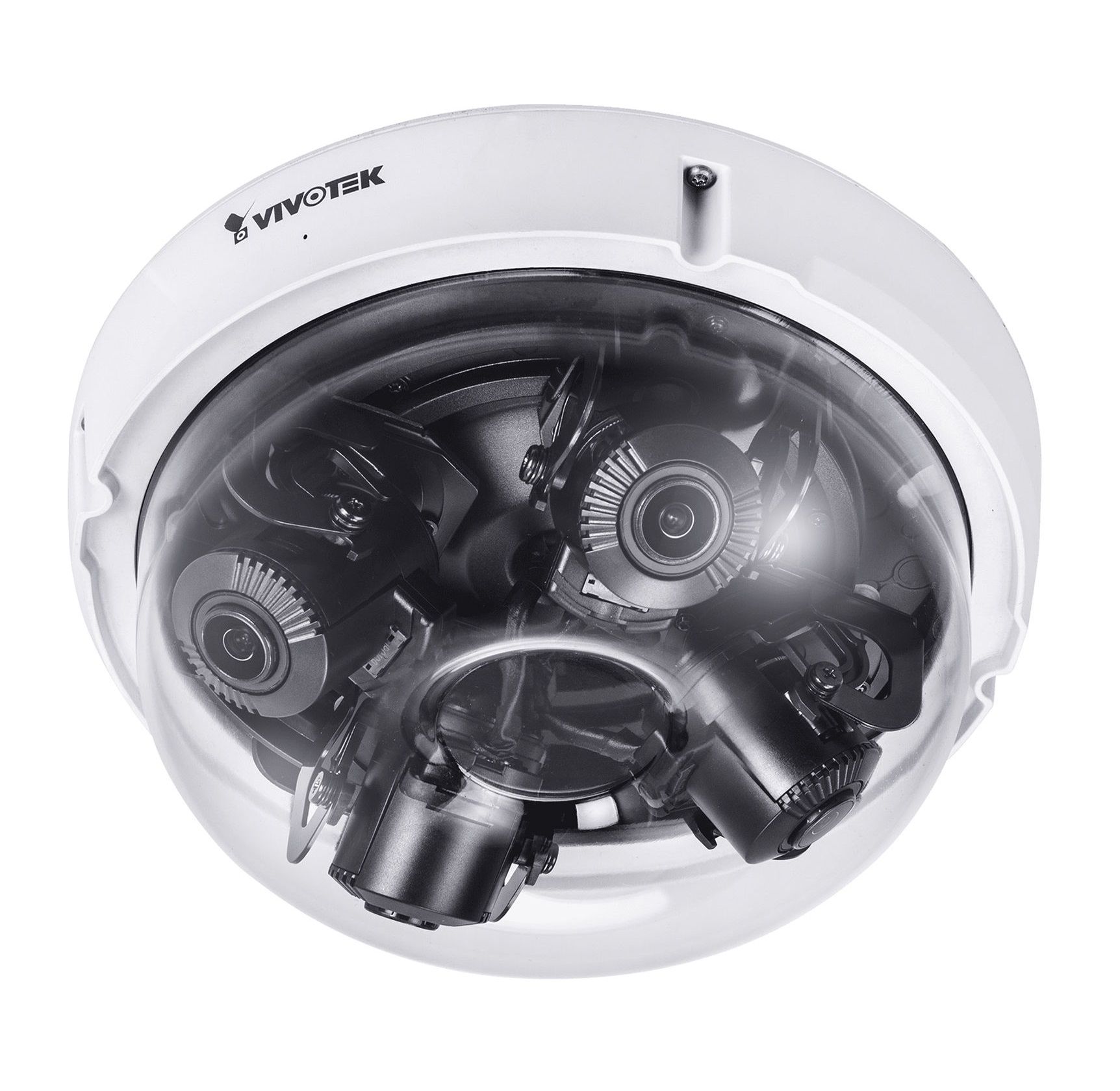

Vivotek MA9321-EHTV 20 Megapixel Day/Night Outdoor Network IP Dome Camera, 3.7-7.7mm Lens

SKU
MA9321-EHTV
Vivotek MA9321-EHTV 20 Megapixel Day/Night Outdoor Network IP Dome Camera, 3.7-7.7mm Lens MA9321-EHTV by Vivotek
Vivotek MA9321-EHTV 20 Megapixel Day/Night Outdoor Network IP Dome Camera, 3.7-7.7mm Lens MA9321-EHTV by Vivotek
Model No
MA9321-EHTV
$2,200.00
Qty:

Product Highlights
    • 20-Megapixel Total Resolution
    • 4 Independent Sensors, Adjustable Views
    • 30 fps (2688x1920) per Sensor
    • Remote Focus
    • H.265 Compression Technology

The MA9321-EHTV from Vivotek is a 20 Megapixel Day/Night Outdoor Network IP Dome Camera, 3.7-7.7mm Lens. The new MA9321-EHTV is the most versatile product offering to date from Vivotek. The MA9321-EHTV provides high resolution images through four independent sensors, and remote focus lenses. By having each sensor independent of each other, the MA9321-EHTV can view four different regions simultaneously and therefore reduce the total number of cameras needed for surveillance, helping to lower total installation time and costs. Featuring four independent 5MP CMOS Sensors, the MA9321- EHTV network camera can provide the most flexibility in surveillance monitoring. Each sensor utilizes a 3.7 to 7.7 mm remote focus lens and 3-axis design along a circular track to enable full 360° coverage. This enables the MA9321-EHTV to capture every angle for comprehensive video coverage from a single IP address, making this camera ideally suited for surveillance in areas such as hallway intersections, building corners, parking garages/lots, and shopping malls.

The MA9321-EHTV is equipped with a removable IR-cut filter and WDR Pro technology, enabling the camera to maintain optimal image quality and unparalleled visibility in high contrast lighting environments. Furthermore, the MA9321-EHTV employs Vivotek's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90% while still maintaining excellent image quality compared to traditional H.264 without smart streaming. In addition to its versatile coverage, the MA9321-EHTV is armed with a robust IP66 and IK10-rated housing to enable the multidirectional camera to withstand rain and dust as well as to protect against vandalism or tampering.

Features

  • 20-Megapixel Total Resolution
  • 4 Independent Sensors, Adjustable Views
  • 30 fps (2688x1920) per Sensor
  • Remote Focus
  • H.265 Compression Technology
  • Removable IR-cut Filter for Day & Night Function
  • Smart Stream III to Optimize Bandwidth Efficiency
  • SNV (Supreme Night Visibility) for Low Light Conditions
  • WDR Pro to Provide Extreme Visibility in Extremely Bright or Dark Environments
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • -40°C ~ 50°C Wide Temperature Range for Extreme Weather Conditions
  • Built-in Microphone
SKU  MA9321-EHTV
Features  Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range
Manufacturer  Vivotek
NDAA Compliant
Camera Signal    Network IP
Connection Type  Wired
Infrared Distance   Non Infrared
Resolution   20 Megapixel
Lens Type   Varifocal
Mount Type  Ceiling, Wall
Compression Method   H.264, M-JPEG, H.265
Durability   Vandal Resistant, Weather Resistant
Voltage  24vAC, PoE
Dimensions (W x H)  Ø 210 x 110.4 mm, Ø 210 x 96.7 mm (without cover plate)
Electronic Shutter   1/5 sec. to 1/32,000 sec.
Image Device   1/2.7" Progressive CMOS
Minimum Scene Illumination  0.095 Lux @ F1.9 (Color), 0.005 Lux @ F1.9 (B/W)
Operating Humidity   0.9
Operating Temperature   -40°C ~ 50°C (-40°F ~ 122°F)
Power Consumption  Max. 24 W
Protocols  IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/ RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, ARP, SSL, TLS, CIFS/SMB
S/N Ratio  67 dB
Weatherproof   IP66
Digital Noise Reduction   3DNR
Angle of View   Horizontal: 40.2° ~ 88.8°, Vertical: 28.6° ~ 59.8°, Diagonal: 49.6° ~ 116.0°
Rotation Angle ±90° each lens
Motion Detection Tracking   Five-window video motion detection
Audio Yes
Auto Gain Control   Yes
Day/Night   Yes
Digital Noise Reduction   Yes
Automatic White Balance   Yes
Back Light Compensation   Yes
Motion Detection Tracking   Yes
Privacy Masking   Yes
Wide Dynamic Range   Yes
Mirror   Yes
ONVIF  Yes
