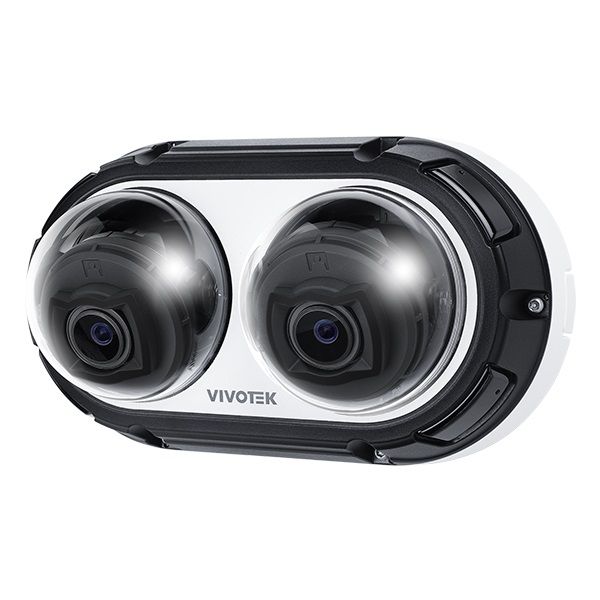

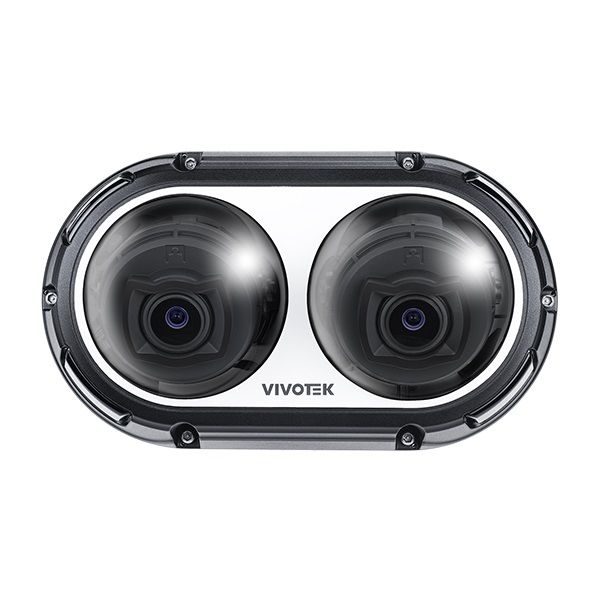

Vivotek MA9311-EHTV 5 Megapixel Network IP 2 Channel Dual-Directional Panoramic AI Camera with 3.2-7.7mm Lens
SKU
MA9311-EHTV
Model No
MA9311-EHTV
$1,191.64
Product Highlights
- 30 fps @ 2560x1920 per channel
- IP66/67, IK10, NEMA 4X-rated Protection
- AI-powered Smart Motion Detection and Smart VCA
- Signed Firmware, Secure Boot and TPM 2.0
- Built-in IR illuminators, effective up to 20 meters
Speak to an expert
The Vivotek MA9311-EHTV is an advanced 5 Megapixel Network IP Dual-Directional Panoramic AI Camera designed for high-performance surveillance. Features include superior image clarity with 120dB WDR Pro, 30 fps recording, and robust security measures, making it ideal for comprehensive monitoring in various conditions while significantly reducing installation complexity.
Vivotek MA9311-EHTV Camera Features
- Image Quality: 5MPx2 dual-sensor provides ultra-clear video capture, ensuring high-quality images for effective monitoring.
- Wide Dynamic Range: 120dB WDR Pro technology enhances visibility in challenging lighting, resulting in sharper visuals day or night.
- Smart IR II: Advanced infrared capabilities extend visibility up to 20 meters in complete darkness, making it perfect for 24/7 surveillance.
- AI Detection: Built-in Smart VCA provides intelligent object tracking and alerts, ensuring accurate monitoring with quick response times.
- Robust Housing: IP66 & IK10 ratings ensure durability against harsh environmental conditions and vandalism.
Detailed Camera Specifications
| Feature | Details |
|---|---|
| Resolution | 2560x1920 |
| Frame Rate | 30 fps per channel |
| Lens | 3.2-7.7mm |
| Operating Temperatures | -22°F to 131°F |
| Audio | 2-way audio with external microphone input/output |
| Protection Standards | IP66/IK10, NEMA 4X |
| Power over Ethernet | Yes |
| Warranty | 5 years |
| API Integration | Various open APIs for third-party integration |
| Storage | microSD supported |
| Certification | UL certified |
SKU  | MA9311-EHTV |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Digital Zoom, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Vivotek |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 3.2-7.7mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | PoE |
| Dimensions (W x H) | 230 x 135 x 112mm |
| Electronic Shutter | 1/30 sec. to 1/32,000 sec. |
| IR LEDs | IR LED*4 |
| Minimum Scene Illumination | 0.05 lux @F1.6 (Color), 0.005 lux @F1.6 (B/W), 0 lux with IR illuminaton on |
| Operating Humidity | 98% RH (non-condensing) |
| Operating Temperature | -40°C ~ 55°C (-40°F ~ 131°F) (IR off) -40C ~ 50°C (-40F ~ 122°F) (IR on) |
| Power Consumption | Max 25.5W /19.8W (IR on/off) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| S/N Ratio | 64 dB |
| Angle of View | 96° ~ 30° (Horizontal) 69° ~ 23° (Vertical) 129° ~ 38°(Diagonal) |
| Rotation Angle | 350° each lens |
| IR Distance | 20 meters/65.62 ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
There are no related videos.
Write Your Own Review
Manuals & Specifications
MA9311-EHTV-Specsheet MA9311-EHTV-Manual
