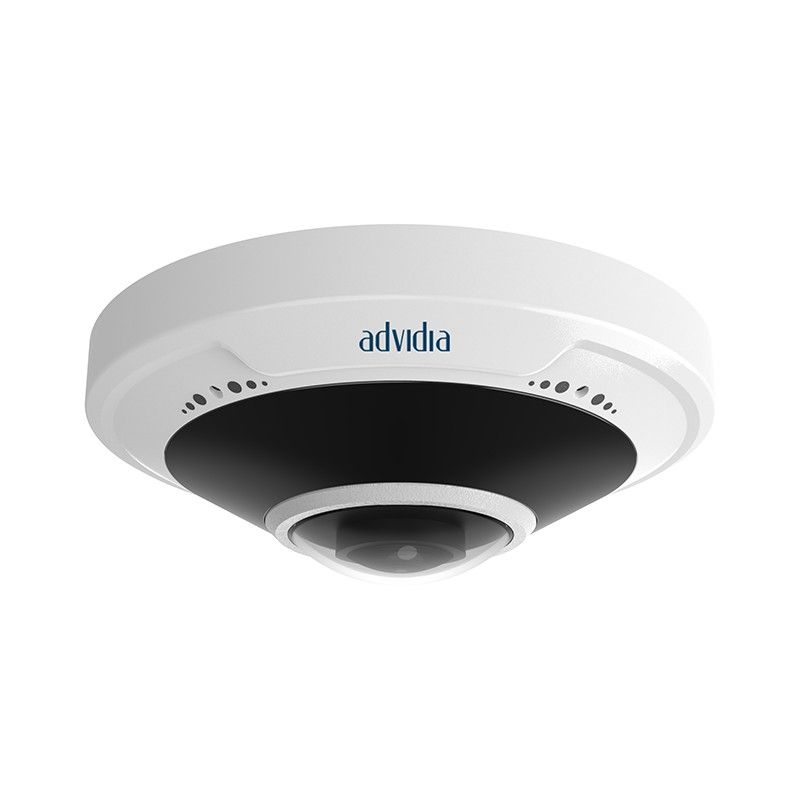

Panasonic Advidia M-5360 5MP Fish-Eye Camera with 1.4mm Lens
SKU
M-5360
Model No
M-5360
$575.00
Product Highlights
- 5MP
- 1.4mm lens
- Built-in Mic
- True WDR 120dB
- IR up to 10m
Speak to an expert
The M-5360 from Panasonic Advidia is a high-performance 5MP fish-eye camera featuring a 1.4mm lens, designed to capture expansive fields of view with exceptional clarity. This camera boasts advanced technologies such as True WDR and built-in infrared capability, making it ideal for surveillance in various lighting conditions.
Panasonic Advidia M-5360 Camera Features
- 5MP: Delivers high-resolution images, ensuring clear details for effective monitoring.
- 1.4mm Lens: Provides an ultra-wide field of view, capturing large areas without blind spots.
- Built-in Mic: Enables audio recording, enhancing situational awareness during surveillance.
- True WDR 120dB: Maintains visibility in challenging lighting environments, balancing bright and dark areas.
- IR up to 10m: Offers night vision capabilities, ensuring visibility even in total darkness.
- IP66 Rated: Protects against dust and heavy rain, making it suitable for both indoor and outdoor installations.
Detailed Specifications for Panasonic Advidia M-5360
| Model | M-5360 |
| Resolution | 5MP |
| Lens | 1.4mm |
| Microphone | Built-in |
| True WDR | 120dB |
| Infrared Range | Up to 10m |
| Weather Resistance | IP66 |
SKU  | M-5360 |
|---|---|
| Features | Audio, Auto Gain Control, Day/Night, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Panasonic |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 5 Megapixel |
| Lens Type | Fixed |
| Lens Size | 1.4mm |
| Mount Type | Ceiling, Wall |
| Compression Method | Ultra 265, H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Φ125 × 43.7 mm (Φ4.9” × 1.7”) |
| Electronic Shutter | Auto/Manual, shutter time: 1~1/100000 s |
| Image Device | 1/2.8”, progressive scan, 5.0 megapixel, CMOS |
| Minimum Scene Illumination | Colour: 0.01 Lux (F2.0, AGC ON) | 0 Lux with IR |
| Operating Humidity | ≤95% RH (non-condensing) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Consumption | Max. 8.5W |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH |
| Weatherproof | IP66 |
| Angle of View | 360° |
| IR Distance | 10m/33ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
