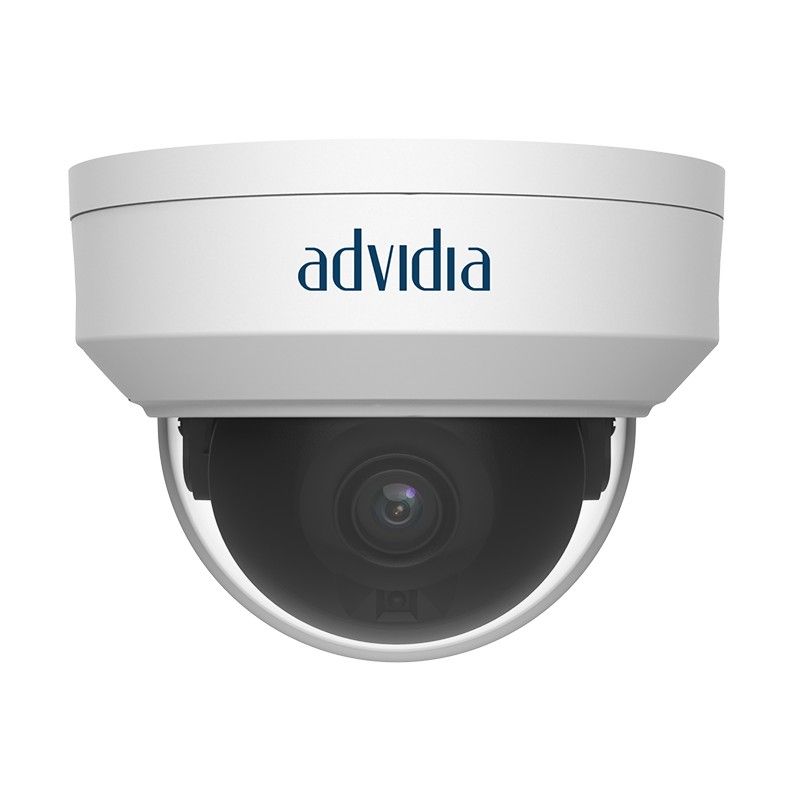

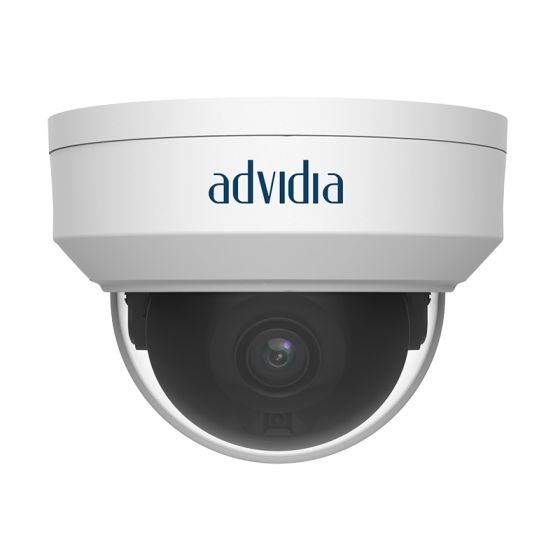

Panasonic Advidia M-46-FW-V2 4MP Vandal Resistant Outdoor Dome Network Camera with 2.8mm Lens
SKU
M-46-FW-V2
Model No
M-46-FW-V2
$300.00
Product Highlights
- 4 Megapixel IR
- True WDR 120dB
- 2.8mm Fixed lens
- H.265, H.264, MJPEG
- Support 9:16 Corridor Mode
Speak to an expert
The M-46-FW-V2 from Panasonic Advidia is a 4MP vandal resistant outdoor dome network camera featuring a 2.8mm lens, designed to provide high-quality surveillance in challenging environments. With superior image resolution, advanced WDR capabilities, and robust weather resistance, this camera ensures reliability and performance for outdoor security applications.
Panasonic Advidia M-46-FW-V2 Camera Features
- 4 Megapixel IR: Enhanced resolution delivers clearer images, enabling better identification of subjects.
- True WDR 120dB: Wide dynamic range technology captures details in high contrast scenes, improving visibility in varying lighting conditions.
- 2.8mm Fixed lens: Offers a broad field of view, making it ideal for monitoring large areas without compromising on detail.
- H.265, H.264, MJPEG: Multiple compression formats support efficient storage and bandwidth management, ensuring optimal performance over your network.
- Support 9:16 Corridor Mode: Ideal for monitoring narrow spaces like hallways, maximizing coverage in specific environments.
- IP67, IK10: High ingress protection and impact resistance ratings make it suitable for outdoor use in harsh weather and vandal-prone areas.
- Built-in Mic: Captures audio alongside video for enhanced situational awareness.
- NDAA Compliant: Adheres to U.S. government regulations, ensuring security and reliability for federal projects.
- ONVIF Profile G, S, T: Ensures compatibility with a wide range of security systems, providing flexible integration options.
Panasonic Advidia M-46-FW-V2 Detailed Specifications
| Camera Resolution | 4 Megapixels |
| Lens Type | 2.8mm Fixed Lens |
| WDR Capability | True WDR 120dB |
| Video Compression | H.265, H.264, MJPEG |
| Cordior Mode Support | 9:16 |
| Ingress Protection | IP67 |
| Impact Resistance | IK10 |
| Audio Support | Built-in Microphone |
| NDAA Compliance | Yes |
| ONVIF Compatibility | Profile G, S, T |
SKU  | M-46-FW-V2 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, ONVIF, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | Panasonic |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Φ109 x 83mm (Ø4.3” x 3.2”) |
| Electronic Shutter | Auto/Manual, 1 ~ 1/100000s |
| Image Device | 1/2.7", 4.0 Megapixel, Progressive Scan, CMOS |
| Minimum Scene Illumination | Color: 0.003Lux (F1.6, AGC ON) | 0Lux with IR on |
| Operating Humidity | ≤95% RH (Non-Condensing) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Consumption | Max 4.5W |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP |
| S/N Ratio | >56dB |
| Weatherproof | IP67 |
| Angle of View | H: 112.9° | V: 59.1° | O: 121.2° |
| IR Distance | 30m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
