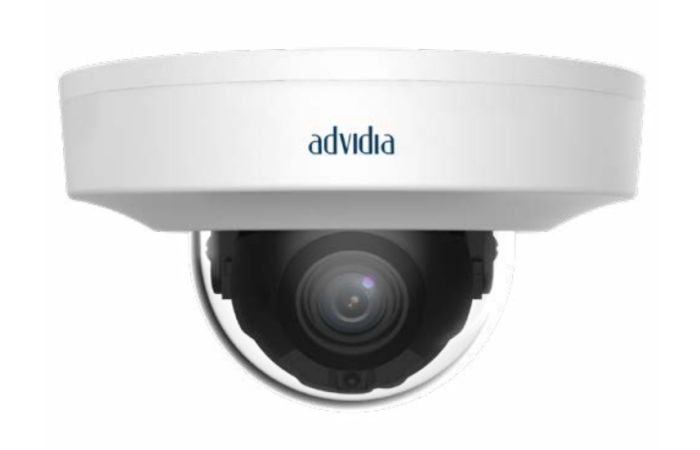

Panasonic Advidia M-45-FW 4 Megapixel Indoor IR Network Dome Camera, 2.8mm Lens
SKU
M-45-FW
Model No
M-45-FW
$285.00
Product Highlights
- 4 megapixel resolution IR
- WDR of 120dB
- 2.8mm lens
- Built-in microphone
- H.265
Speak to an expert
The M-45-FW from Panasonic Advidia is a high-quality 4 megapixel indoor IR network dome camera equipped with a 2.8mm lens, providing exceptional clarity and detail for surveillance needs.
Panasonic Advidia M-45-FW Camera Features
- 4 Megapixel Resolution: Delivers crystal-clear images, enhancing surveillance effectiveness by capturing finer details.
- WDR of 120dB: Allows the camera to handle challenging lighting conditions, ensuring images remain clear in both bright and dark areas.
- 2.8mm Lens: Offers a wide field of view, making it ideal for monitoring larger areas with fewer cameras.
- Built-in Microphone: Captures audio along with video, providing comprehensive situational awareness.
- H.265 Compression: Reduces bandwidth usage without compromising image quality, allowing for efficient data storage and transmission.
- Video Insight VMS License Included: Provides a complete surveillance solution with compatible video management software at no extra charge.
- Available Only in the United States: Tailored for the U.S. market, ensuring support and compliance with local standards.
Detailed Specifications for Panasonic Advidia M-45-FW
| Camera Type | Indoor IR Network Dome Camera |
| Resolution | 4 Megapixels |
| Lens | 2.8mm |
| Wide Dynamic Range (WDR) | 120dB |
| Microphone | Built-in |
| Video Compression | H.265 |
| Included Software | Video Insight VMS License |
| Distribution | Available only in the United States |
SKU  | M-45-FW |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, Wide Dynamic Range |
| Manufacturer | Panasonic |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | Ultra 265, H.264, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Φ108.6 x 61.8mm (Ø4.28" x 2.43") |
| Electronic Shutter | Auto/Manual, 1 ~ 1/100000s |
| Image Device | 1/3" Progressive Scan CMOS |
| Minimum Scene Illumination | Colour: 0.01Lux (F2.0, AGC ON) | 0Lux with IR |
| Operating Humidity | ≤95% RH (Non-Condensing) |
| Operating Temperature | -35°C ~ 60°C (-31°F ~ 140°F) |
| Power Consumption | Max 5.5W |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
| Angle of View | H: 95.8°, V: 55.2°, 124.5° |
| IR Distance | 30m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Wide Dynamic Range | Yes |
