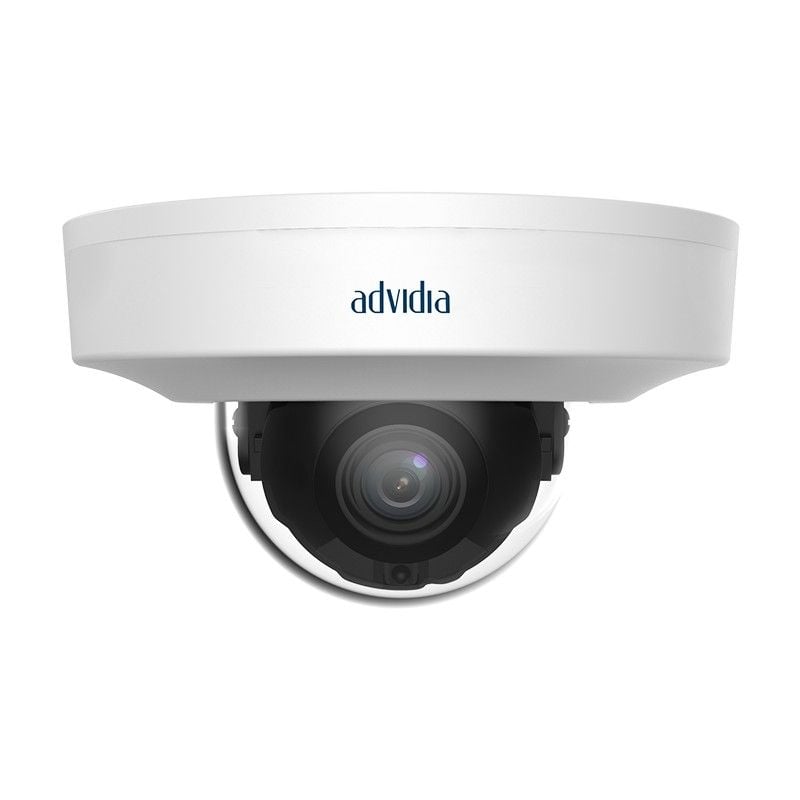

Panasonic Advidia M-45-FW-V2 4MP Indoor Dome Network Camera with 2.8mm Lens
SKU
M-45-FW-V2
Model No
M-45-FW-V2
$301.85
Product Highlights
- 4MP
- WDR 120dB
- Built-in IR LED
- Built-in mic
- 2.8 mm lens
Speak to an expert
The M-45-FW-V2 from Panasonic Advidia is a high-performance 4MP indoor dome network camera equipped with a versatile 2.8mm lens. Ideal for surveillance needs, it features advanced imaging capabilities and is designed for easy installation and operation, making it an excellent choice for both residential and commercial environments.
Panasonic Advidia M-45-FW-V2 Camera Features
- 4MP Resolution: Provides clear and detailed images, ensuring that all necessary details are captured for effective monitoring.
- WDR 120dB: Wide Dynamic Range technology improves image quality in challenging lighting conditions, allowing for better visibility in both bright and dark areas.
- Built-in IR LED: Enhances night vision capabilities, allowing for clear recording in low-light conditions up to a specified range.
- Built-in Mic: Captures audio along with video, providing a complete monitoring solution for enhanced security.
- 2.8 mm Lens: Offers a wide field of view, making it suitable for monitoring larger areas with fewer cameras.
- VideoInsight VMS License Bundled: Includes professional video management software, facilitating remote access and efficient video recording management.
Detailed Specifications for Panasonic Advidia M-45-FW-V2
| Camera Type | Indoor Dome Network Camera |
| Resolution | 4MP |
| Lens Type | 2.8mm Fixed Lens |
| Wide Dynamic Range | 120dB |
| IR Range | Built-in IR LED for night vision |
| Audio | Built-in microphone |
| Software | VideoInsight VMS license included |
SKU  | M-45-FW-V2 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, Wide Dynamic Range |
| Manufacturer | Panasonic |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | Ultra 265, H.264, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | Φ109 x 62mm (Ø4.3” x 2.4”) |
| Electronic Shutter | Auto/Manual, 1 ~ 1/100000s |
| Image Device | 1/2.7", 4.0 Megapixel, Progressive Scan, CMOS |
| Minimum Scene Illumination | Color: 0.003Lux (F1.6, AGC ON) | 0Lux with IR |
| Operating Humidity | ≤95% RH (Non-Condensing) |
| Operating Temperature | -30°C ~ 55°C (-22°F ~ 131°F) |
| Power Consumption | Max 4.5W |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
| Angle of View | H: 101.1°, V: 55.3°, 111.1° |
| IR Distance | 30m/98ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| ONVIF | Yes |
