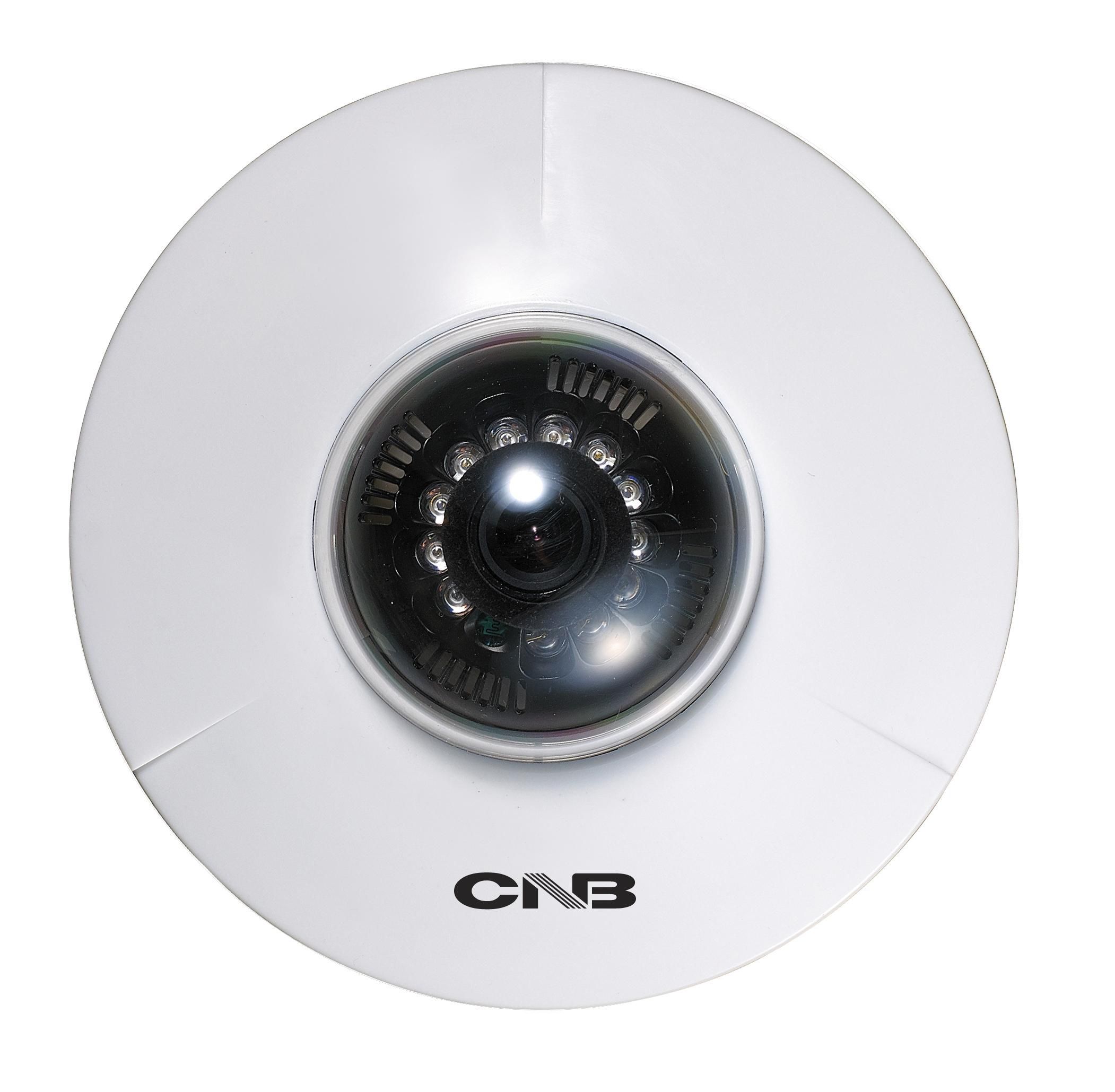

CNB LKC1050IR 2 Megapixel Pancake Dome Camera
SKU
LKC1050IR
Model No
LKC1050IR
$99.99
Product Highlights
- Full HD IP Mega-pixel TDN Pancake Dome Camera
- 1/2.9″ Progressive scan CMOS Sensor
- Built-in Fixed Mega Pixel Lens (f=3.7mm)
- Max. Full HD(1920x1080)
- TDN(ICR)
Speak to an expert
The CNB LKC1050IR is a high-performance 2 megapixel pancake dome camera designed for superior surveillance. With its Full HD capability, advanced optics, and built-in IR functionality, this camera ensures clear and reliable video footage in various lighting conditions, making it an ideal choice for both indoor and outdoor security solutions.
CNB LKC1050IR Camera Features
- High-Resolution Video: Full HD IP Mega-pixel TDN Pancake Dome Camera - Provides high-resolution video quality, enhancing surveillance capability.
- Improved Image Clarity: 1/2.9” Progressive scan CMOS Sensor - Delivers improved image clarity and detail.
- Wide Field of View: Built-in Fixed Mega Pixel Lens (f=3.7mm) - Offers a wide field of view, perfect for large area coverage.
- Sharp Video Recording: Max. Full HD(1920x1080) - Ensures sharp and clear video recording.
- Consistent Video Quality: TDN(ICR) - Adapts seamlessly to changing light conditions for consistent video quality.
- Enhanced Low-Light Performance: Built-in IR LEDs (12EA) & Sensor 1EA - Enhances low-light performance for night-time surveillance.
- Smooth Video Capture: 2.0 Mega-Pixel Resolution up to 30 Frames/sec - Captures smooth and detailed video at high frame rates.
- Flexible Streaming Options: Dual Stream H.264/MJPEG Resolution - Provides flexible streaming options for various applications.
- Simplified Installation: Ethernet 10/100 Base-T (PoE) - Simplifies installation by allowing power and data transmission over a single cable.
- Easy Setup: 12VDC - Compatible with standard power supply for easy setup.
CNB LKC1050IR Detailed Specifications
| Camera Type | Pancake Dome |
| Effective Pixels | 2.0 Mega-Pixel |
| Sensor Type | 1/2.9” CMOS |
| Lens | Fixed (f=3.7mm) |
| Video Resolution | 1920x1080 |
| Frame Rate | up to 30 Frames/sec |
| Low Light Technology | Built-in IR LEDs |
| Streaming Protocol | H.264/MJPEG |
| Network Connectivity | Ethernet 10/100 Base-T (PoE) |
| Power Supply | 12VDC |
SKU  | LKC1050IR |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Day/Night, Motion Detection Tracking, Privacy Masking, Weather Resistant, Wide Dynamic Range |
| Manufacturer | CNB |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 3.7mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG |
| Durability | Indoor, Weather Resistant |
| Voltage | 12vDC |
| Dimensions (W x H) | 122 x 55 mm |
| Image Device | 1/2.9 inch Progressive scan CMOS 2.0M pixels |
| Image Pixels Total | 1920 (H) x 1080 (V) 2 Mega |
| IR LEDs | 12EA |
| IR Wavelength | 850nm |
| Minimum Scene Illumination | 0.2Lux (Color, DSS On), 0.00 Lux (IR LED On) |
| Operating Temperature | -10˚C ~ 40˚C |
| Power Consumption | Max. 5W |
| Protocols | IPv4/v6, TCP, UDP, IGMP, ICMP, ICMPv6, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS, SOCKS |
| Synchronization | Internal |
| Motion Detection Tracking | 3 regions |
| Automatic White Balance | Auto |
| IR Distance | 12m/39.37ft |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Automatic White Balance | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
