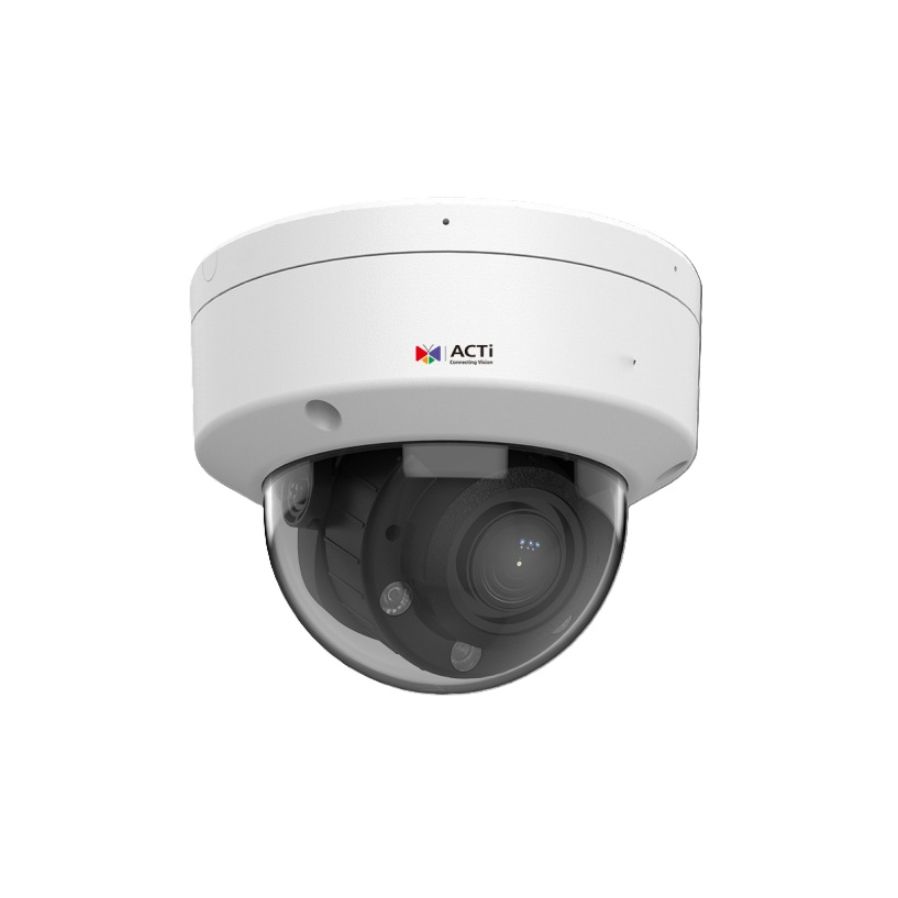

ACTi L81 2 Megapixel Network IP Outdoor IR Deep Learning AI Dome Camera with 2.8-12mm Lens
Model No
L81
$889.65
Product Highlights
- 2 Megapixel, 4.3x, Zoom Dome
- Deep Learning AI
- IR LED 65m, Extreme WDR (140 dB)
- White LED 55m, Smart Dual Light, Color Min. Illumination 0.003 lux
- Smart Motion Detection
Speak to an expert
The ACTi L81 is the L-series upgrade to the K81 — a 2MP deep learning AI outdoor varifocal zoom dome camera with Smart Dual Light (white LED + IR), 4.3× motorized 2.8-12mm lens, and 140dB WDR. 2 megapixel, 4.3×, zoom dome, deep learning AI, IR LED 65m, extreme WDR (140 dB), white LED 55m, Smart Dual Light, color min. illumination 0.003 lux, smart motion detection, DORI variable 45.7-141.4/18.1-56.1/9.1-28.3/4.6-14.1m, weatherproof (IP68), vandal-proof (IK10), UL Listed, Taiwan IoT Cybersecurity Certification.
Features
- 2 Megapixel, 4.3x, Zoom Dome
- Deep Learning AI
- IR LED 65m, Extreme WDR (140 dB)
- White LED 55m, Smart Dual Light, Color Min. Illumination 0.003 lux
- Smart Motion Detection
- DORI (45.7-141.4 / 18.1-56.1 / 9.1-28.3 / 4.6-
- 14.1m)
- Weatherproof (IP68), Vandal proof (IK10), UL Listed
- Taiwan IoT Cybersecurity Certification
SKU  | L81 |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Varifocal |
| Lens Size | 2.8-12mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (Ø x H): 121.5mm x 97.6mm (4.78" x 3.84") |
| Electronic Shutter | 1/3-1/100000 second (manual mode); 1/3-1/100000 second (auto mode) |
| Image Device | 1/2.7 " Progressive Scan CMOS |
| IR LEDs | Adaptive IR LED |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.003 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Operating Humidity | ≤95% RH, non-condensing |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 9.6 W (DC), 12 W (PoE) |
| Protocols | IPv4, IPv6, TCP, UDP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTCP, RTSP, NTP, IGMP, ICMP, SMTP, FTP, QoS, SSL/TLS |
| S/N Ratio | 75 dB |
| Weatherproof | IP68, IK10 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal Viewing Angle 102.4° - 31.2° Vertical Viewing Angle 54.4° - 17.5 |
| Rotation Angle | 0°-355° |
| IR Distance | 65m/213ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
