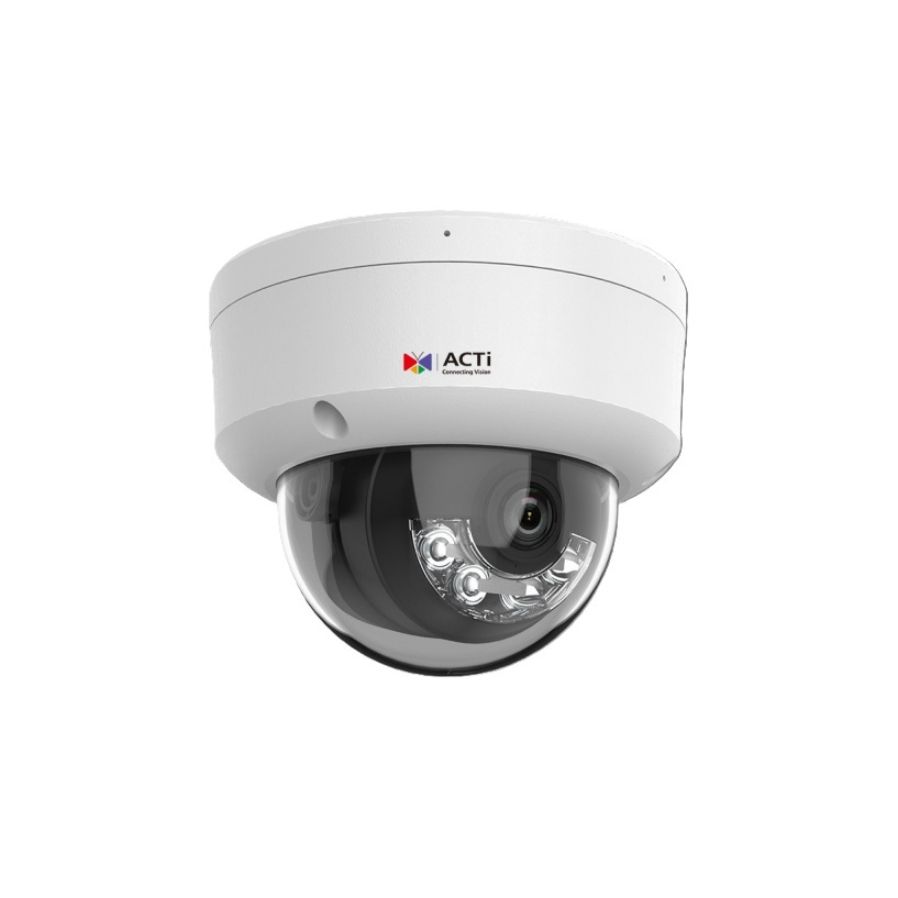

ACTi L73 6 Megapixel Network IP Outdoor IR Deep Learning AI Dome Camera with 2.8mm Lens
Model No
L73
$546.75
Product Highlights
- 6 Megapixel, f2.8mm, Fixed Dome
- Deep Learning AI
- IR LED 55m, Extreme WDR (140 dB)
- White LED 50m, Smart Dual Light, Color Min. Illumination 0.003 lux
- Smart Motion Detection
Speak to an expert
The ACTi L73 6 Megapixel Network IP Outdoor IR Deep Learning AI Dome Camera offers advanced surveillance capabilities with its state-of-the-art deep learning AI technology, delivering high-definition video output and superior night vision. Designed for outdoor use, its durable build and intelligent features make it the ideal choice for securing any environment.
ACTi L73 Camera Features
- High Resolution: 6 Megapixel, f2.8mm, Fixed Dome provides crystal-clear images, ensuring you capture every detail for enhanced security.
- Intelligent Technology: Deep Learning AI allows for smarter event detection and reduces false alarms, improving the overall efficiency of surveillance.
- Superior Night Vision: IR LED with 55m range and Extreme WDR (140 dB) ensures excellent visibility in low-light conditions, making it reliable for night surveillance.
- Enhanced Visibility: White LED with 50m range and Smart Dual Light feature enables color images at night with a minimum illumination of just 0.003 lux.
- Smart Detection: Smart Motion Detection significantly improves monitoring effectiveness, reducing unnecessary video footage for simpler review.
ACTi L73 Detailed Camera Specifications
| Type | 6 Megapixel Network IP Dome Camera |
| Lens | 2.8mm Fixed Lens |
| Infrared Range | Up to 55m |
| White Light Range | Up to 50m |
| Minimum Illumination | 0.003 lux (Color) |
| WDR | Extreme WDR (140 dB) |
| AI Technology | Deep Learning AI for enhanced detection |
| Smart Detection | Smart Motion Detection |
SKU  | L73 |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (Ø x H): 121.4mm x 97.6mm (4.78" x 3.84") |
| Electronic Shutter | 1/3-1/100000 second (manual mode); 1/3-1/100000 second (auto mode) |
| Image Device | 1/2.4 " Progressive Scan CMOS |
| IR LEDs | Adaptive IR LED |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.003 lux at F1.6 (AGC on); B/W: 0 lux (IR LED on) |
| Operating Humidity | ≤95% RH, non-condensing |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 6 W (DC), 7.5 W (PoE) |
| Protocols | IPv4, IPv6, TCP, UDP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTCP, RTSP, NTP, IGMP, ICMP, SMTP, FTP, QoS, SSL/TLS |
| S/N Ratio | 75 dB |
| Weatherproof | IP68, IK10 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | Horizontal Viewing Angle 105° Vertical Viewing Angle 55° |
| Rotation Angle | 0°-355° |
| IR Distance | 55m/180ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
