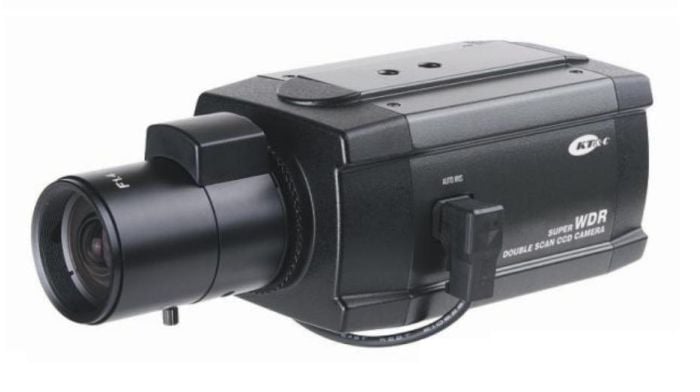

KT&C KPC-WDR4200NH 550 TVL WDR Innovative Professional Box Camera, C/CS Mount
SKU
KPC-WDR4200NH
Model No
KPC-WDR4200NH
$157.87
Product Highlights
- Sony 1/3â„¢ Vertical Double-Density Interline CCD
- 550 TVL Horizontal Resolution
- WDR “ Wide Dynamic Range Performance
- Intensified DSS accumulation up to X500
- Digital Day & Night
Speak to an expert
The KPC-WDR4200NH from KT&C is a 550TV TVL WDR innovative professional box camera, C/CS mount.
Features
- Sony 1/3’ Vertical Double-Density Interline CCD
- 550 TVL Horizontal Resolution
- WDR – Wide Dynamic Range Performance
- Intensified DSS accumulation up to X500
- Digital Day & Night
- C/CS Mount Lens (Lens Sold Separately)
- Convenient OSD (On Screen Display) Control
(English, Chinese, German, Russian, Spanish) - BLC Compensation (Zone & Level Setting)
- Motion Detection
- Privacy Image masking up to 8 areas
- DC and AC Dual Power supply
- Min Illumination of 1.0 lux @ F2.0 / 0.001 lux(DSS)
SKU  | KPC-WDR4200NH |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range |
| Manufacturer | KT&C |
Camera Signal  | Analog |
| Resolution | 550 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Not Included |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Bracket Required |
| Voltage | 12vDC |
| Electronic Shutter | 1/60 sec |
| Gamma Correction | ? = 0.45 |
| Image Device | 1/3" Sony Vertical Double-Density Interline CCD |
| Image Pixels Total | 811(H) x 508(V) |
| Image Pixels-Effective | 768(H) x 494(V) |
| Minimum Scene Illumination | 1.0 Lux / F2.0, 0.001 Lux (DSS) |
| Operating Humidity | Less than 80%RH |
| Operating Temperature | -10 °C ~ 50 °C (14 °F ~ 122 °F) |
| Dimensions (W x H) | 65mm (W) X 59mm (H) X 110mm (D) |
| OSD Menu | English, Chinese, Russian, Spanish, German |
| Power Consumption | Max 330mA |
| Privacy Zone | 8 Zones each (Mask On / Off) |
| S/N Ratio | More than 48dB (AGC Off) |
| Scanning Horizontal | 15.734 KHz |
| Scanning System | 2:1 Interface |
| Scanning Vertical | 59.94 Hz |
| Signal System | NTSC |
| Video Output | 1Vp-p Composite (75?), Unbalanced |
| Synchronization | Internal |
| Backlight Compensation | ON / OFF (Zone & Level Adjustment) |
| Automatic White Balance | ATW / PUSH / PUSH LOCK / USER (R Gain, B Gain) |
| Auto Gain Control | Low / Mid / High |
| Motion Detection | 6 Zones each (On / Off) |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
