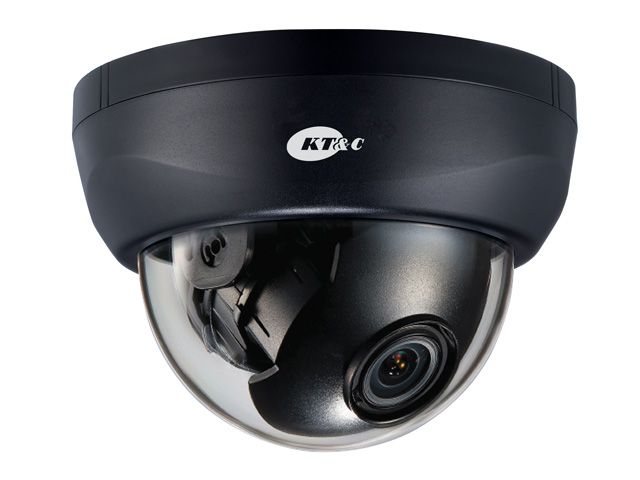

KT&C KPC-HDD122M 2.43 MP HD Indoor Dome Camera
SKU
KPC-HDD122M
Model No
KPC-HDD122M
$150.12
Product Highlights
- 1/2.8” SONY Exmor CMOS
- 2.43 Megapixel
- Min. Illumination of 0.1 Lux
- f=3.6mm, 3.5~16mm
- Digital Day & Night
The KPC-HDD122M from KT&C 2.43 MP HD indoor dome camera.
Features
- 1/2.8” SONY Exmor CMOS
- 2.43 Megapixel
- Min. Illumination of 0.1 Lux
- f=3.6mm, 3.5~16mm
- Digital Day & Night
- 3D DNR / BLC / AGC / DSS
- DC 12V / AC 24V Dual Power
SKU  |
KPC-HDD122M |
|---|---|
| Features |
Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Privacy Masking, Wide Dynamic Range |
| Manufacturer |
KT&C |
Camera Signal  |
HD-SDI |
| Resolution |
1080p |
| Sensor Option |
1/2.8" CMOS |
| Lens Type |
Fixed |
| Lens Size |
3.6mm |
| Infrared Distance |
Non Infrared |
| Durability |
Indoor |
| Mount Type |
Ceiling, Wall |
| Voltage |
12vDC, 24vAC |
| Electronic Shutter |
Auto / Manual |
| Image Device |
2.43 Megapixel, 1/2.8” SONY Exmor CMOS |
| Image Pixels-Effective | 1984 x 1105 |
| Minimum Scene Illumination |
0.1 Lux |
| Operating Humidity |
Less than 80% RH |
| Operating Temperature |
14°F ~ 122°F (-10°C ~ 50°C) |
| Dimensions (W x H) |
Bubble (Ø100) Ø136.4 x 95.3mm |
| OSD Menu |
Built-in with joystick |
| Power Consumption |
Max. 280mA, Max. 3.8W |
| Privacy Zone |
24 Zones |
| S/N Ratio |
More than 50 dB |
| Video Output |
HD-SDI / 1.0 Vp-p Composite (75ohm) |
| Digital Noise Reduction |
3D DNR |
| Automatic White Balance |
Auto, AutoEXT, Push, Manual |
| Auto Gain Control |
0 ~ 10 |
| Back Light Compensation |
Yes |
| Automatic White Balance |
Yes |
| Day/Night |
Yes |
| Wide Dynamic Range |
Yes |
| Privacy Masking |
Yes |
| Auto Gain Control |
Yes |
