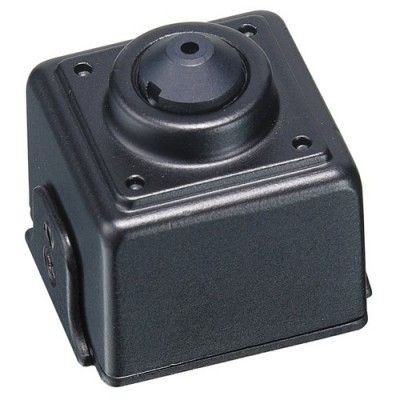

KT&C KPC-E23NUP4 750TVL Miniature Square Camera, 4.3mm Supercone Pinhole Lens
SKU
KPC-E23NUP4
Model No
KPC-E23NUP4
$90.00
Product Highlights
- 750TVL Horizontal Resolution
- 1/3″ 960H EXview HAD CCD II
- Min. Illumination of 0.15 Lux
- Digital Day & Night
- 2D DNR / HLC / BLC / AWB / AGC
Speak to an expert
The KPC-E23NUP4 from KT&C is a compact yet powerful 750TVL miniature square camera, featuring a 4.3mm supercone pinhole lens designed for discreet surveillance. With advanced imaging technology, low-light capabilities, and versatile settings, this camera ensures high-quality video in various environments.
KT&C KPC-E23NUP4 Camera Features
- High Resolution: 750TVL horizontal resolution delivers clear and detailed images, making it perfect for security applications.
- Advanced Sensor: 1/3” 960H EXview HAD CCD II provides superior imaging performance, even in challenging lighting conditions.
- Low Light Performance: Min. illumination of just 0.15 Lux enables reliable video capture in low-light environments.
- Day & Night Functionality: Digital Day & Night feature ensures optimal performance around the clock.
- Image Enhancements: Equipped with 2D DNR, HLC, BLC, AWB, and AGC for enhanced image quality and adaptability to varying conditions.
- User-Friendly Features: Mirror, OSD, and multi-language support for easy operation and configuration.
- Power Requirement: DC 12V power supply for easy installation and compatibility.
KT&C KPC-E23NUP4 Detailed Camera Specifications
| Feature | Details |
| Model | KPC-E23NUP4 |
| Resolution | 750TVL |
| Sensor Type | 1/3” 960H EXview HAD CCD II |
| Minimum Illumination | 0.15 Lux |
| Lens Type | 4.3mm Supercone Pinhole Lens |
| Day & Night Function | Digital Day & Night |
| Image Processing Features | 2D DNR, HLC, BLC, AWB, AGC |
| Power Supply | DC 12V |
SKU  | KPC-E23NUP4 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking |
| Manufacturer | KT&C |
Camera Signal  | Analog |
| Resolution | 750 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/60 ~ 1/100,000 sec |
| Gamma Correction | r = 0.45 |
| Image Device | 1/3” 960H SONY EXview HAD CCD II |
| Image Pixels Total | 1020 x 508 (H x V) |
| Image Pixels-Effective | 976 x 494 (H x V) |
| Minimum Scene Illumination | 0.15 Lux |
| Operating Humidity | Less than 80% RH |
| Operating Temperature | 14 °F ~ 122 °F (-10 °C ~ 50 °C) |
| Dimensions (W x H) | 0.88 x 0.9 inch (22.4 x 23 mm) |
| OSD Menu | English, Japanese, German, French, Russian, Portuguese, Spanish, Chinese |
| Power Consumption | Max. 70 mA |
| Privacy Zone | 4 Zones |
| S/N Ratio | More than 50 dB (AGC Off) |
| Scanning Horizontal | 15.734 KHz |
| Scanning System | 2:1 Interlace |
| Scanning Vertical | 59.94 Hz |
| Signal System | NTSC |
| Video Output | 1.0 Vp-p Composite (75 ohm) |
| Synchronization | Internal |
| Digital Noise Reduction | 2D DNR |
| Mirror | On / Off |
| Backlight Compensation | Off, BLC, HLC |
| Automatic White Balance | ATW, Push, User1, User2, Anti CR, Manual, Push-lock |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Mirror | Yes |
| On Screen Display Menu | Yes |
| Privacy Masking | Yes |
| Auto Gain Control | Yes |
| Motion Detection Tracking | Yes |
