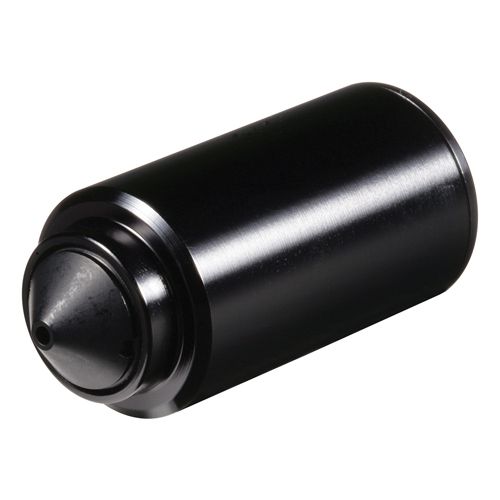

KT&C KPC-E190NUP4 750TVL D/N Bullet Camera, 4.3mm Super Pinhole Lens
SKU
KPC-E190NUP4
Model No
KPC-E190NUP4
$93.60
Product Highlights
- 750TVL Horizontal Resolution
- 1/3960H SONY EXview HAD CCD II
- Min. Illumination of 0.1 Lux
- Digital Day & Night
- DC 12 V Power
Speak to an expert
The KPC-E190NUP4 from KT&C is a high-performance 750TVL D/N Bullet Camera with a 4.3mm Super Pinhole Lens, designed to deliver exceptional image clarity and versatile functionality for various surveillance needs.
KT&C KPC-E190NUP4 Camera Features
- 750TVL Horizontal Resolution: Provides sharp and detailed images, enhancing identification capabilities in surveillance.
- 1/3” 960H SONY EXview HAD CCD II: Utilizes advanced sensor technology for superior low-light performance, ensuring reliable footage in various lighting conditions.
- Min. Illumination of 0.1 Lux: Allows the camera to capture clear images in low-light environments, making it ideal for nighttime surveillance.
- Digital Day & Night: Automatically switches between day and night modes for optimal image quality at any time, ensuring continuous monitoring.
- 2D DNR / HLC / BLC / AWB / AGC: Equipped with various digital enhancements to reduce noise, manage backlighting, and automatically adjust colors, providing clearer and more accurate images.
- DC 12 V Power: Easy to power with standard voltage, simplifying installation and setup.
KT&C KPC-E190NUP4 Detailed Camera Specifications
| Model | KPC-E190NUP4 |
| Resolution | 750TVL |
| Sensor Type | 1/3” 960H SONY EXview HAD CCD II |
| Minimum Illumination | 0.1 Lux |
| Features | Digital Day & Night, 2D DNR, HLC, BLC, AWB, AGC |
| Power Supply | DC 12 V |
SKU  | KPC-E190NUP4 |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction |
| Manufacturer | KT&C |
Camera Signal  | Analog |
| Resolution | 750 TVL |
| Sensor Option | 1/3" CCD |
| Lens Type | Fixed |
| Infrared Distance | Non Infrared |
| Durability | Indoor |
| Mount Type | Ceiling, Wall |
| Voltage | 12vDC |
| Electronic Shutter | 1/60 ~ 1/100,000 sec |
| Gamma Correction | r = 0.45 |
| Image Device | 1/3” 960H SONY EXview HAD CCD II |
| Image Pixels Total | 1020 x 508 (H x V) |
| Image Pixels-Effective | 976 x 494 (H x V) |
| Minimum Scene Illumination | 0.1 Lux |
| Operating Humidity | Less than 80% |
| Operating Temperature | -10 °C ~ +50 °C (-14 °F ~ +122 °F) |
| Power Consumption | Max. 70 mA |
| S/N Ratio | More than 50 dB (AGC Off) |
| Scanning Horizontal | 15.734 KHz |
| Scanning System | 2:1 Interlace |
| Scanning Vertical | 59.94 Hz |
| Signal System | NTSC |
| Video Output | 1.0 Vp-p Composite (75?) |
| Synchronization | Internal |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Auto Gain Control | Yes |
