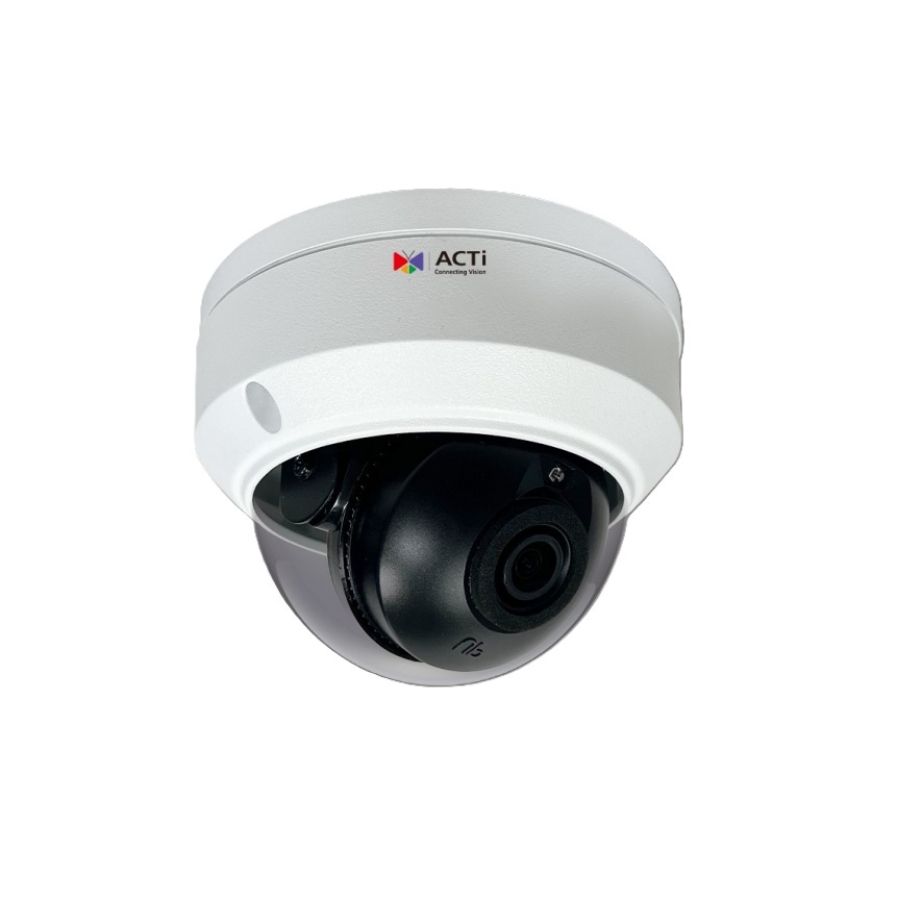

ACTi K72 4 Megapixel Network IP Outdoor IR Dome Camera with 2.8mm Lens
Model No
K72
$521.00
Product Highlights
- 4 Megapixel, f2.8mm, Fixed Dome
- IR LED 50m, Extreme WDR (130 dB)
- Color Min. Illumination 0.003 lux
- Smart Motion Detection
- DORI (63.0 / 25.2 / 12.6 / 6.3m)
Speak to an expert
The ACTi K72 4 Megapixel Network IP Outdoor IR Dome Camera is designed for high-performance surveillance in outdoor environments. With a robust 4 Megapixel resolution and advanced features like Smart Motion Detection and Extreme WDR, this camera ensures clear image quality and reliable performance in various lighting conditions, making it an excellent choice for security needs.
ACTi K72 Camera Features
- High Resolution: 4 Megapixel, f2.8mm, Fixed Dome for sharp and detailed images.
- Night Vision: IR LED with a range of 50m allows visibility in complete darkness.
- Wide Dynamic Range: Extreme WDR (130 dB) balances lighting extremes for clearer images in harsh lighting.
- Low Light Performance: Color minimum illumination of just 0.003 lux provides excellent performance in low light conditions.
- Smart Detection: Smart Motion Detection technology enhances security by minimizing false alarms and enhancing monitoring accuracy.
- Detection Range: DORI (Detection, Observation, Recognition, Identification) ranges of 63.0 / 25.2 / 12.6 / 6.3m for versatile surveillance capabilities.
ACTi K72 Detailed Camera Specifications
| Specification | Details |
|---|---|
| Resolution | 4 Megapixel |
| Lens Type | Fixed, f2.8mm |
| IR LED Range | 50m |
| Dynamics | Extreme WDR (130 dB) |
| Color Min. Illumination | 0.003 lux |
| Smart Motion Detection | Yes |
| DORI Distance | 63.0m / 25.2m / 12.6m / 6.3m |
SKU  | K72 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, ONVIF, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (Ø x H): 109mm x 83mm (4.3" x 3.3") |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| Image Device | 1/2.7 " Progressive Scan CMOS |
| IR LEDs | Adaptive IR LED |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.003 lux at F2.0 (AGC on); B/W: 0 lux (IR LED on) |
| Operating Humidity | 10% - 95% RH, non-condensing |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Power Consumption | 3.5 W (PoE) |
| Protocols | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, SSL, QoS, TLS 1.2 |
| S/N Ratio | 75 dB |
| Weatherproof | IP68, IK10 |
| Digital Noise Reduction | 2D + 3D DNR |
| Angle of View | Horizontal Viewing Angle 101.5° Vertical Viewing Angle 55.6° |
| Rotation Angle | 10°-360° |
| IR Distance | 50m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
