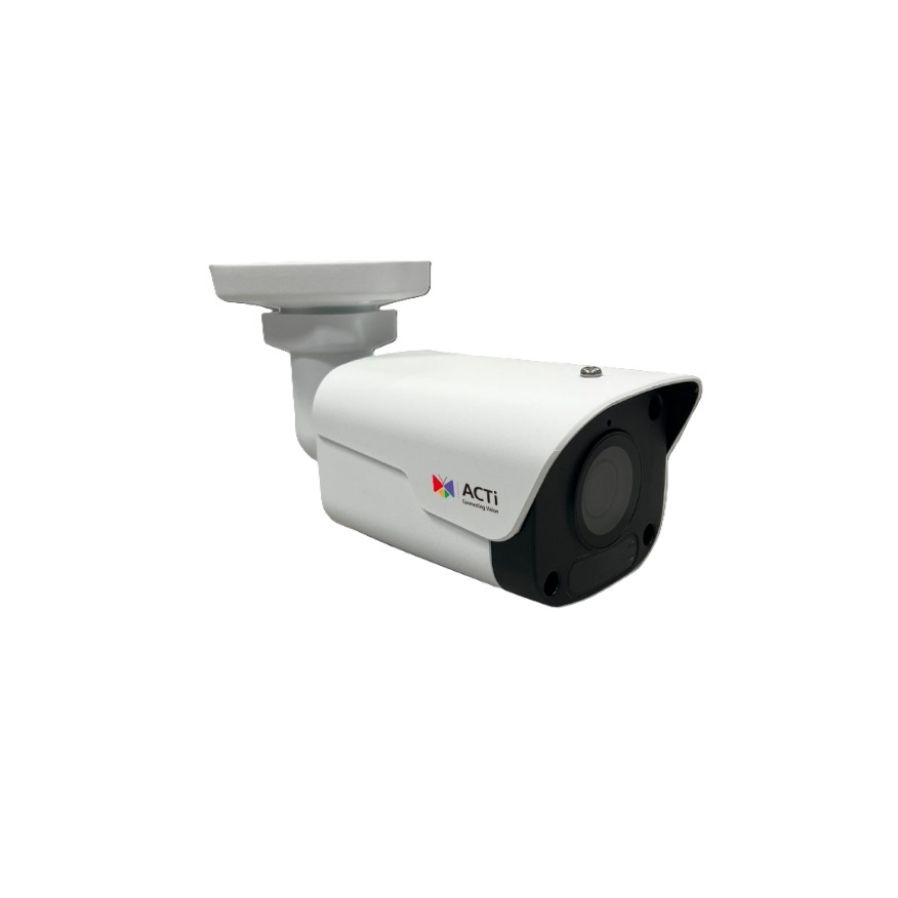

ACTi K32-P1 4 Megapixel Network IP IR Deep Learning AI Bullet Camera with 4mm Lens
SKU
K32-P1
Model No
K32-P1
$459.00
Product Highlights
- 4 Megapixel, f4.0mm, Fixed Bullet
- Deep Learning AI
- IR LED 50m, Extreme WDR (130 dB)
- Color Min. Illumination 0.003 lux
- Smart Motion Detection
Speak to an expert
The ACTi K32-P1 4 Megapixel Network IP IR Deep Learning AI Bullet Camera is an advanced surveillance solution designed to enhance security with its powerful features. Boasting high-resolution imaging, intelligent detection capabilities, and exceptional low-light performance, this camera is perfect for monitoring large areas with clarity and precision.
ACTi K32-P1 Camera Features
- 4 Megapixel Resolution: Captures detailed images for clearer surveillance footage, allowing for effective identification and monitoring.
- Deep Learning AI: Employs advanced algorithms for intelligent analysis of video feeds, improving detection accuracy and reducing false alerts.
- IR LED 50m: Provides exceptional visibility even in complete darkness, making it ideal for low-light environments.
- Extreme WDR (130 dB): Offers superior dynamic range, ensuring excellent image quality in challenging lighting conditions.
- Color Min. Illumination 0.003 lux: Guarantees clear color images even in extremely low-light conditions, enhancing nighttime surveillance.
- Smart Motion Detection: Alerts you to unusual activity while minimizing unnecessary notifications, streamlining real-time monitoring.
Detailed Specifications for ACTi K32-P1
| Camera Type | 4 Megapixel Network IP Bullet Camera |
| Lens | 4mm Fixed Lens |
| Image Sensor | 4 Megapixel |
| Minimum Illumination | 0.003 lux |
| Infrared Range | Up to 50 meters |
| Dynamic Range | Extreme WDR 130 dB |
| AI Features | Deep Learning Smart Motion Detection |
SKU  | K32-P1 |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 4 Megapixel |
| Lens Type | Fixed |
| Lens Size | 4mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (W x H x D): 62mm x 63mm x 166mm (2.5" x 2.5" x 6.5") |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| Image Device | 1/2.7 " Progressive Scan CMOS |
| IR LEDs | Adaptive IR LED |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.003 lux at F2.0 (AGC on); B/W: 0 lux (IR LED on) |
| Operating Humidity | ≤95% RH, non-condensing |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 3.7 W (PoE) |
| Protocols | IPv4, IPv6, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, SSL, QoS, TLS 1.2 |
| S/N Ratio | 75 dB |
| Weatherproof | IP68, IK10 |
| Digital Noise Reduction | 2D + 3D DNR |
| Angle of View | Horizontal Viewing Angle 84.1° Vertical Viewing Angle 45.1° |
| Rotation Angle | 0°-360° |
| IR Distance | 50m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
