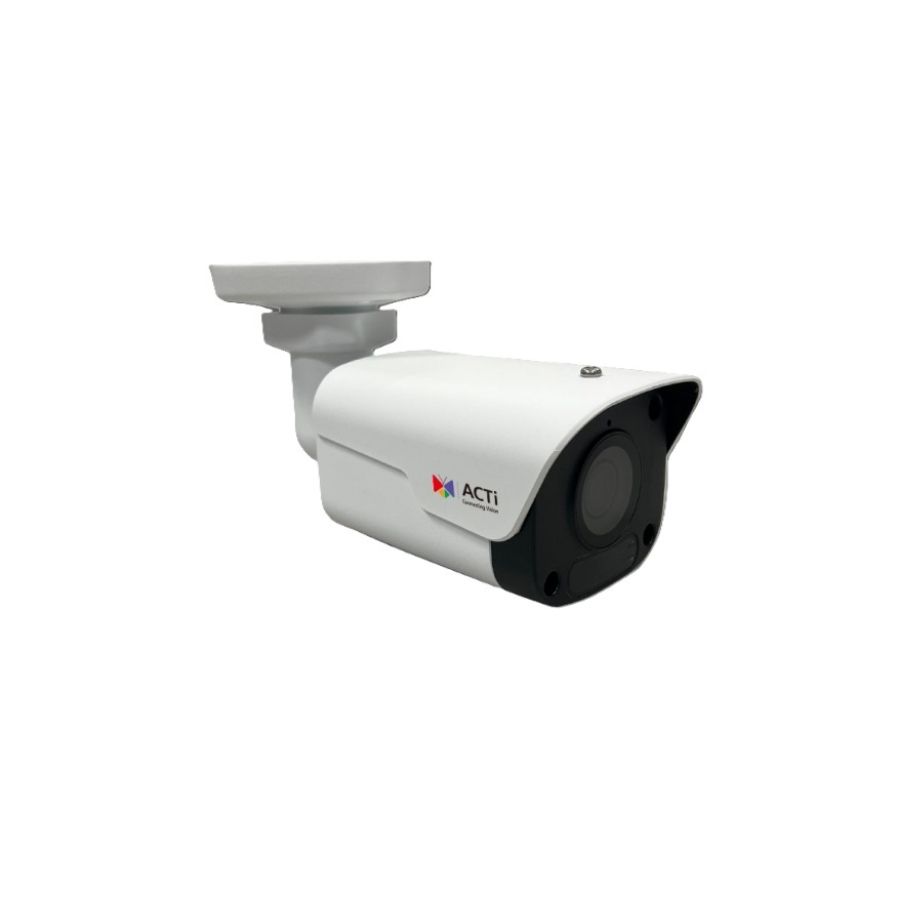

ACTi K31-P1 2 Megapixel Network IP IR Deep Learning AI Bullet Camera with 4mm Lens
SKU
K31-P1
Model No
K31-P1
$360.02
Product Highlights
- 2 Megapixel, f4.0mm, Fixed Bullet
- Deep Learning AI
- IR LED 50m, Extreme WDR (130 dB)
- Color Min. Illumination 0.003 lux
- Smart Motion Detection
Speak to an expert
The ACTi K31-P1 is the 4mm fixed lens variant of the K31 — the same 2MP deep learning AI outdoor bullet camera platform as the K31, but with a 4mm lens providing a narrower, more telephoto field of view than the 2.8mm K31. 2 megapixel, f4.0mm fixed bullet with deep learning AI, IR LED 50m, extreme WDR (130 dB), color minimum illumination 0.003 lux, smart motion detection, DORI distances 60/24/12/6m, weatherproof (IP68), vandal-proof (IK10), UL Listed.
Features
- 2 Megapixel, f4.0mm, Fixed Bullet
- Deep Learning AI
- IR LED 50m, Extreme WDR (130 dB)
- Color Min. Illumination 0.003 lux
- Smart Motion Detection
- DORI (60 / 24 / 12 / 6m)
- Weatherproof (IP68), Vandal proof (IK10), UL Listed
SKU  | K31-P1 |
|---|---|
| Features | Audio, Auto Gain Control, AI Analytics, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, Privacy Masking, Vandal Resistant, Weather Resistant, Wide Dynamic Range |
| Manufacturer | ACTi |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Infrared Distance | 101 Feet + |
| Resolution | 2 Megapixel |
| Lens Type | Fixed |
| Lens Size | 4mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Vandal Resistant, Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | (W x H x D): 62mm x 63mm x 166mm (2.5" x 2.5" x 6.5") |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| Image Device | 1/2.7 " Progressive Scan CMOS |
| IR LEDs | Adaptive IR LED |
| IR Wavelength | 850 nm |
| Minimum Scene Illumination | Color: 0.003 lux at F2.0 (AGC on); B/W: 0 lux (IR LED on) |
| Operating Humidity | ≤95% RH, non-condensing |
| Operating Temperature | -40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption | 3.5 W (PoE) |
| Protocols | IPv4, IPv6, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SNMP, SSL, QoS, TLS 1.2 |
| S/N Ratio | 75 dB |
| Weatherproof | IP68, IK10 |
| Digital Noise Reduction | 2D + 3D DNR |
| Angle of View | Horizontal Viewing Angle 91.2° Vertical Viewing Angle 47.9° |
| Rotation Angle | 0°-360° |
| IR Distance | 50m/164ft |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| Privacy Masking | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
