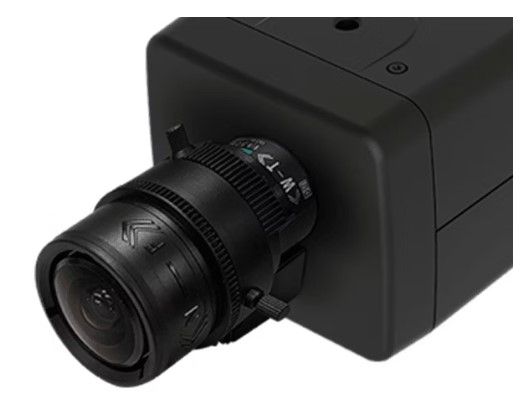

Pelco IXP33 3 Megapixel Indoor Sarix Professional Series Box Camera
SKU
IXP33
Model No
IXP33
$324.33
Product Highlights
- H.265, H.264 Main, High, MJPEG video encoding
- Up to 5 megapixel (MP) resolution at 30 frames per second
- Up to 60 images per second (ips) at 4 MP for 5MP cameras
- Micro SDHC & SDXC 2TB addressable, 128 GB testable
- Basic Analytics including Simple Motion Detection and Camera Sabotage
Speak to an expert
The Pelco 3 Megapixel Indoor Sarix Professional Series Box Camera is designed for versatile indoor surveillance, integrating advanced technology with a range of functionality to ensure high-quality video in various settings. With options for lens compatibility and superior image processing capabilities, this camera is perfect for secure environments that demand reliability and clarity.
Pelco 3 Megapixel Indoor Sarix Box Camera Camera Functions
- High Resolution: Up to 5MP resolution ensures clear and detailed images, enhancing surveillance capabilities in indoor settings.
- Video Encoding: H.265, H.264, and MJPEG encoding options optimize storage and streaming without sacrificing quality.
- Wide Compatibility: Works seamlessly with Pelco and third-party video management systems, providing flexibility for existing setups.
- Advanced Color Science: Delivers true colors in varying light conditions, making it easy to identify important details in footage.
- True WDR: Offers superior light management for improved visibility in challenging lighting situations, ensuring no detail is lost.
Pelco 3 Megapixel Indoor Sarix Box Camera Detailed Specifications
| Specification | Details |
|---|---|
| Video Encoding | H.265, H.264 Main, High, MJPEG |
| Power Supply | 24 VAC, 12 VDC, IEEE802.3af PoE |
| Video Resolution | Up to 5MP at 30fps |
| Frame Rate | Up to 60 ips at 4MP for 5MP cameras |
| Storage | Micro SDHC & SDXC, up to 2TB |
| Analytics | Basic analytics including motion detection and sabotage detection |
| Operating Temperature | -10° to 55°C (14° to 131°F) |

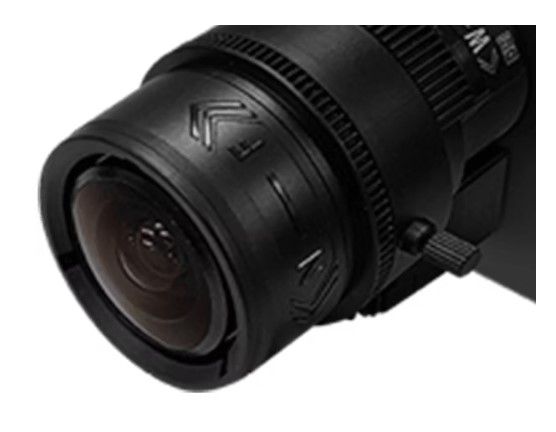

| Lens Compatibility | Choice of standard CS megapixel lenses |
| ONVIF Compliance | Profiles S, G, Q, and T conformant |
SKU  | IXP33 |
|---|---|
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Motion Detection Tracking, On Screen Display Menu, ONVIF, Wide Dynamic Range |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired |
| Resolution | 3 Megapixel |
| Lens Type | Fixed |
| Mount Type | Bracket Required |
| Compression Method | H.264, M-JPEG, H.265 |
| Durability | Indoor |
| Voltage | 12vDC, 18-32vAC, PoE |
| Electronic Shutter | 1/10,000 sec ~ 1 sec |
| Image Device | 1/2.8'' Progressive Scan CMOS |
| Minimum Scene Illumination | Color: 0.065 lux (33 ms), 0.01625 (200 ms), Mono: 0.03 lux (33 ms), 0.0075 lux ( 200 ms) |
| Operating Humidity | 5 to 90%, RH noncondensing |
| Operating Temperature | –10° to 55°C (14° to 131°F) |
| OSD Menu | English, French, German, Italian, Portuguese, Arabic, Russian, Spanish, Turkish, Korean, Simplified Chinese |
| Power Consumption | 12 VDC: 9.8 W, 24 VAC: 14.4 W, PoE+: 13.2 W |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, 802.1x (EAP), and NTCIP 1205, GB/ T28181,ARP, DDNS, ICMP, IGMP, RTCP, SFTP, SIP, TLS/TTLS, WS-discovery |
| S/N Ratio | >50 dB |
| Digital Noise Reduction | 3D DNR |
| Processor | Intel® Core™ i3 processor, 2.4 GHz |
| Automatic White Balance | Range: 2,000° to 10,000°K; Selectable ATW (Auto Tracing White Balance), Auto, & Manual |
| Audio | Yes |
| Auto Gain Control | Yes |
| Day/Night | Yes |
| Digital Noise Reduction | Yes |
| Automatic White Balance | Yes |
| Back Light Compensation | Yes |
| Motion Detection Tracking | Yes |
| On Screen Display Menu | Yes |
| Wide Dynamic Range | Yes |
| Mirror | Yes |
| ONVIF | Yes |
