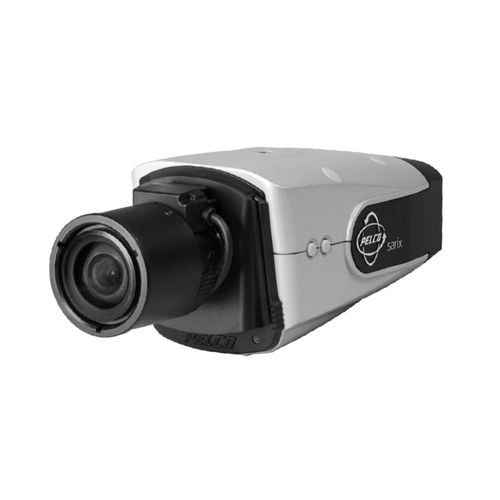

Pelco IXE20DN Sarix 2.1 Megapixel EP Network Day & Night HD Digital Box Camera
SKU
IXE20DN
Model No
IXE20DN
$989.51
Product Highlights
- Open IP Standards
- Up to 2.1 Megapixel Resolution (1920 x 1080)
- Up to 30 Images per Second (ips) at 1920 x 1080
- Auto Back Focus
- H.264 and MJPEG Compression Capability
Speak to an expert
The Pelco Sarix 2.1 Megapixel EP Network HD Digital Box Camera is a cutting-edge security solution designed to deliver exceptional image quality and high-performance processing. With advanced features and fast installation, this camera is ideal for demanding security applications, integrating seamlessly with Pelco Analytics or third-party software for enhanced surveillance capabilities.
Pelco Sarix 2.1 Megapixel EP Network HD Digital Box Camera - Key Features
- 2.1 Megapixel Resolution: Offers high-definition clarity (1920 x 1080) ensuring that every detail is captured accurately for enhanced surveillance.
- Advanced Processing Power: Designed to support Pelco Analytics or third-party analytic systems, enhancing the capability for detailed monitoring and data collection.
- Low Light Sensitivity: Effective performance in low-light conditions with a sensitivity of 0.03 lux, making this camera reliable in varying lighting environments.
- Dual Video Streams: Capable of supporting up to two simultaneous video streams, allowing flexibility for various applications without sacrificing quality.
- Auto Gain Control and White Balance: Automates exposure and color balance adjustments for optimal video quality, ensuring a clear and accurate representation of the scene.
- Power over Ethernet (PoE): Simplifies installation and reduces wiring costs, providing power and data through a single cable.
- Local Storage: Features a mini SD card slot allowing for alarm capture and ensuring important footage is not lost.
Pelco Sarix 2.1 Megapixel EP Network HD Digital Box Camera - Detailed Specifications
| Feature | Details |
|---|---|
| Open IP Standards | Provides interoperability with various systems and easy integration. |
| Up to 30 Images per Second (ips) | Delivers smooth video playback and reduces motion blur. |
| Day/Night Functionality | Ensures reliable operation in both daytime and nighttime conditions. |
| H.264 and MJPEG Compression | Supports multiple formats, providing flexibility in video management options. |
| Built-in Analytics | Enables advanced monitoring capabilities directly within the camera, enhancing security insights. |
| Compact and Durable Design | Engineered for reliability in mission-critical applications. |
| Video Setup Jack | Facilitates quick and efficient setup and adjustment. |
SKU  | IXE20DN |
|---|---|
| Features | Auto Gain Control, Automatic White Balance, Privacy Masking |
| Manufacturer | Pelco |
| NDAA | Compliant |
Camera Signal  | Network IP |
| Connection Type | Wired, Wireless |
| Infrared Distance | Non Infrared |
| Resolution | 2.1 Megapixel |
| Lens Type | Not Included |
| Mount Type | Bracket Required |
| Compression Method | H.264 |
| Durability | Indoor |
| Voltage | 24vAC |
| Electronic Shutter | 1 ~ 1/100,000 sec |
| Image Device | 1/3-inch (effective) |
| Minimum Scene Illumination | Color (33 ms) 0.50 luxColor SENS (500 ms) 0.12 luxMono (33 ms) 0.25 luxMono SENS (500 ms) 0.03 lux |
| Operating Humidity | 20% to 90%, noncondensing |
| Operating Temperature | 14° to 122°F (–10° to 50°C) |
| Power Consumption | <7 W |
| Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP,DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP v2c/v3,QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP,FTP, mDNS (Bonjour®), and 802.1x (EAP) |
| S/N Ratio | 50 dB |
| Signal System | NTSC , PAL |
| Video Output | RJ-45 |
| Processor | Intel® Core® 2 Duo microprocessor, 2.6 GHz |
| Automatic White Balance | 2,000° to 10,000°K |
| Auto Gain Control | Yes |
| Automatic White Balance | Yes |
| Privacy Masking | Yes |
